EFCO CORPORATION 8/4/2014 PART NO. YW40 Page 3 of 7
Window Installation Instructions - Screen Installation Section -
Completely read the General Installation Instructions and all other sections which pertain
to your project before starting work. These recommendations are for general erection
procedures only. For actual job conditions, see the details on the shop drawings. For
perimeter anchor types and spacing, refer to the approved shop drawings or consult the
project design professional.

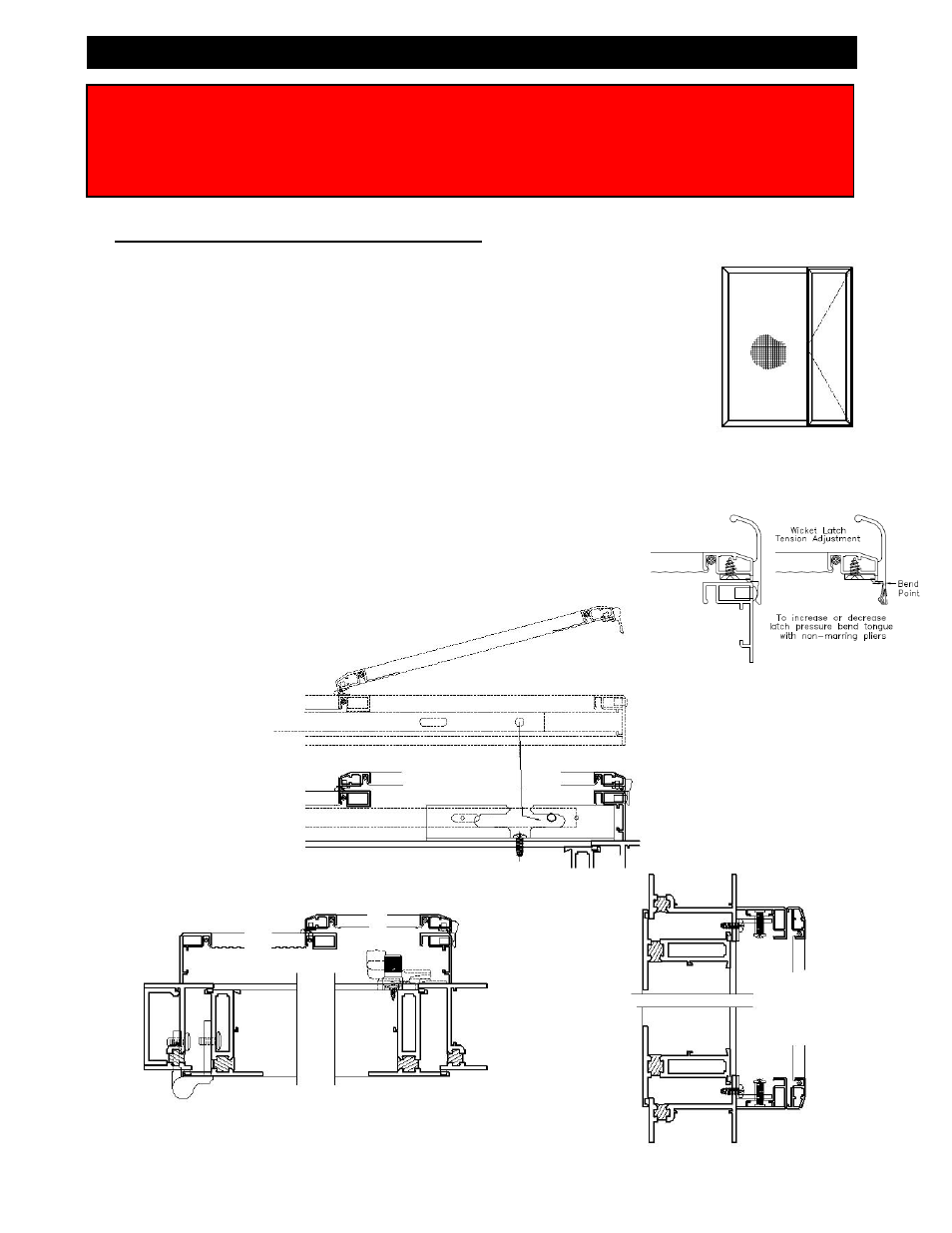

Project-Out Casement Screen Installation
1. Attach the screen clips to the window with short side of the angle
towards D.L.O. (must be parallel with the frame).
NOTE: Clip screws are thread cutting fasteners. Thread cutting
into the aluminum should be done with a screw wax or a silicone
based lubricant to improve cutting action and reduce the required
torque. If the screen clips are being reapplied, no lubricant on
the screw is required, and the screws should be started by hand
or a hand driver should be used to prevent cross threading.
2. Open the wicket.
3. Hang on to the slide pins and push the screen toward the
window.
4. Lower the slide pins in to the screen clips.
5. Release after the pins are seated, and
press the pins down to snug to the
frame.
Typical Elevation
Viewed From Interior
