EFCO Special Purpose Windows Installation User Manual
Page 36
EFCO CORPORATION 3/5/2014 PART NO. YW40
Page 3 of 6
Window Installation Instructions - Panning Installation Section -

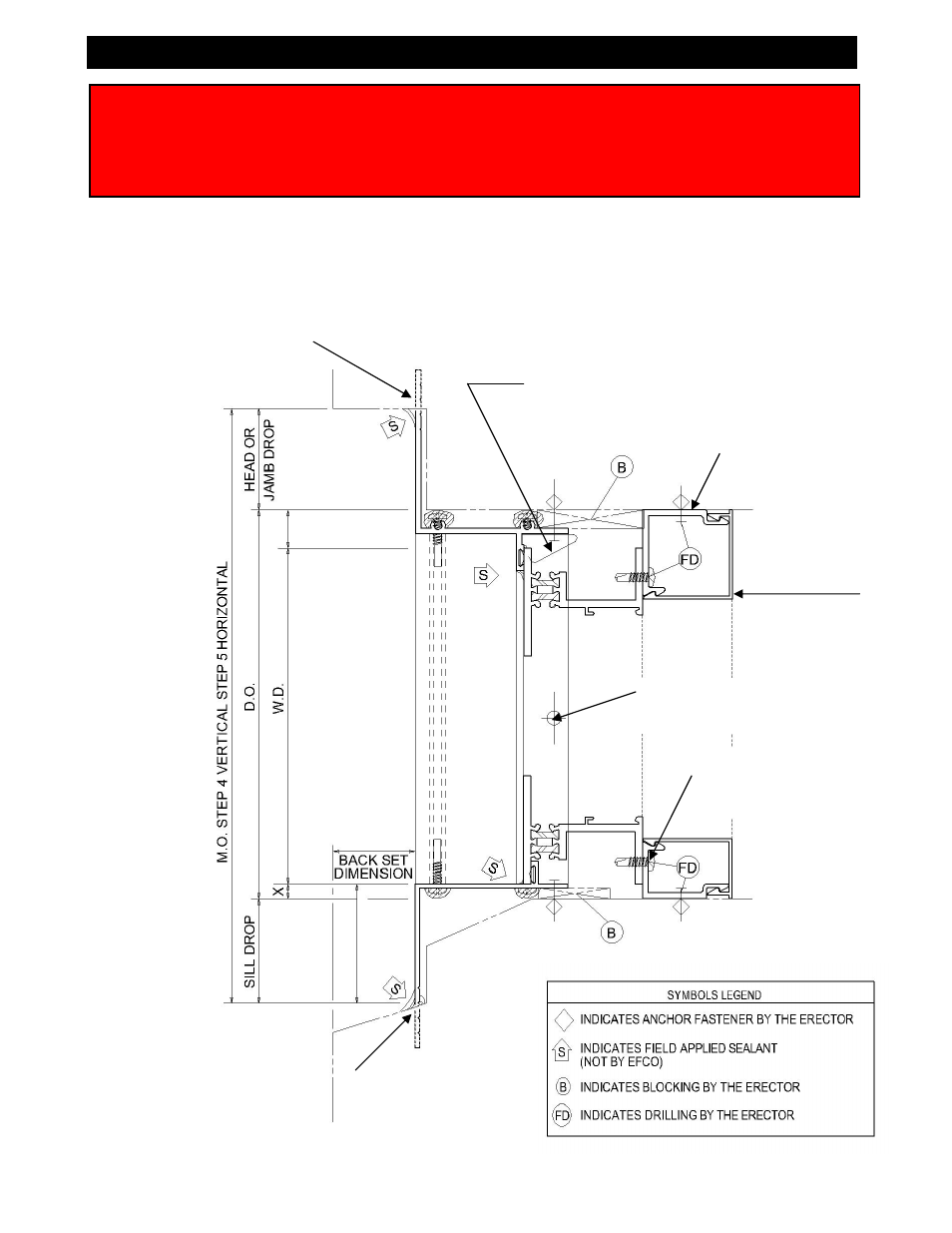

TYPICAL PANNING INSTALLATION - HEAD AND SILL CONDITION
Completely read the General Installation Instructions and all other sections which pertain
to your project before starting work. These recommendations are for general erection
procedures only. For actual job conditions, see the details on the shop drawings. For
perimeter anchor types and spacing, refer to the approved shop drawings or consult the
project design professional.
Field rip if required.
Interior trim sent
long for field fit.
3” interior trim clips.
Condition fasteners and
clear holes Not by
EFCO.
.250 erection holes at 16”
on center, factory drilled.
STT6 tek screw by
EFCO, clear hole in
clip by others.
Field rip if required.
KC73 panning clip
attached at factory.
