Air Brake
Version 2 Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
3-11
C HANGING THE B RAKE P ADS
To prevent possible injury, disconnect the battery and unplug the dyno.
1 Open the CPI’s front panel access and turn off the main breaker.
2 Unplug the dyno power cable. Refer to page 3-2.
3 Remove the eight button-head screws securing the right drum cover and set aside.
4 Remove the right drum cover and set aside.
5 For safety, apply the brake and disconnect the air supply.
6 Remove the hairpin cotter and loosen the castle nut until the pads clear the rotor.

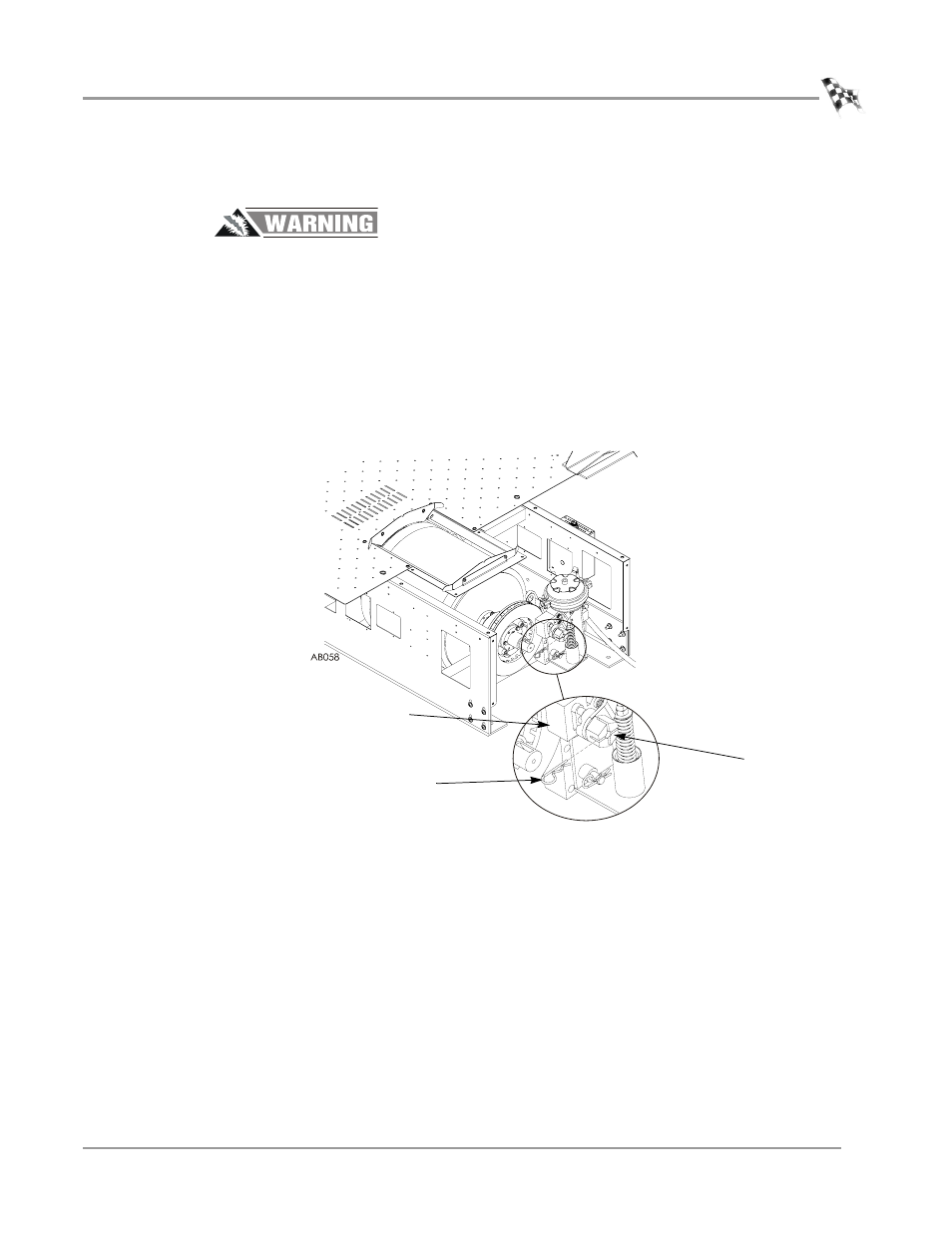

Figure 3-11: Loosen the Castle Nut
remove hairpin cotter
adjust castle nut
outboard brake pad
