Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
C H A P T E R 2
Junction Box Cover, Cable Cover, and End Cap
2-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
JUNCTION BOX COVER, CABLE COVER, AND END CAP
Before installing the junction box cover, cable cover, and end cap be sure to route all
of your cables. If you ordered any additional accessories refer to Chapter 3 for
installation instructions.
1
Secure the blower connector cover to the junction box using two 4-40 screws.
This cover attaches opposite the blower connectors.

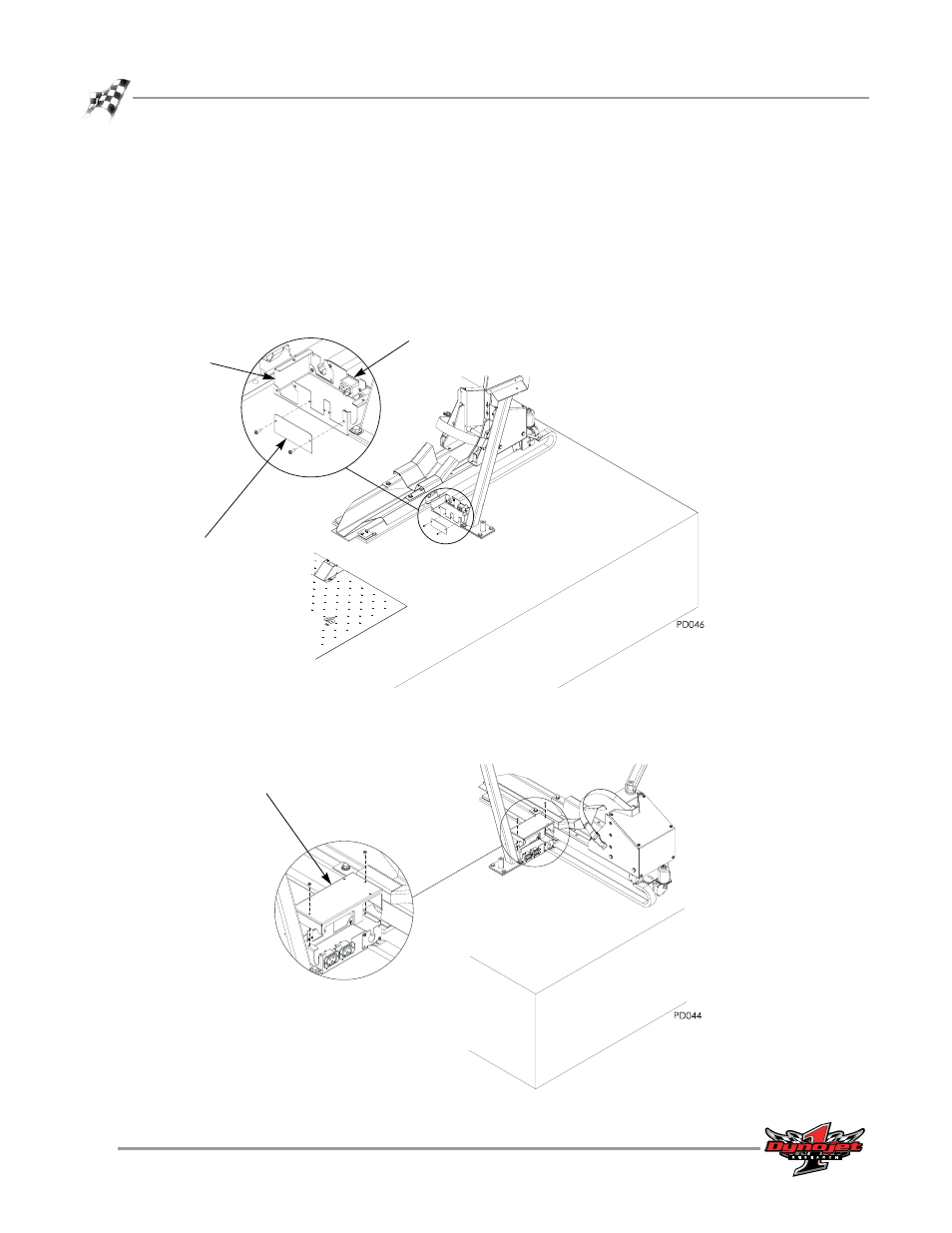

Figure 2-48: Install the Blower Connector Cover
2
Secure the junction box cover to the junction box using two 8-32 screws.
Figure 2-49: Install the Junction Box Cover
blower connector
cover
blower connector
junction box
junction box cover
