S P E C I F I C A T I O N S A N D O P E R A T I N G R E Q U I R E M E N T S
Model 200iP/250iP Motorcycle Pit Dynamometer
Version 2
Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
1-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MODEL 200iP/250iP MOTORCYCLE PIT DYNAMOMETER

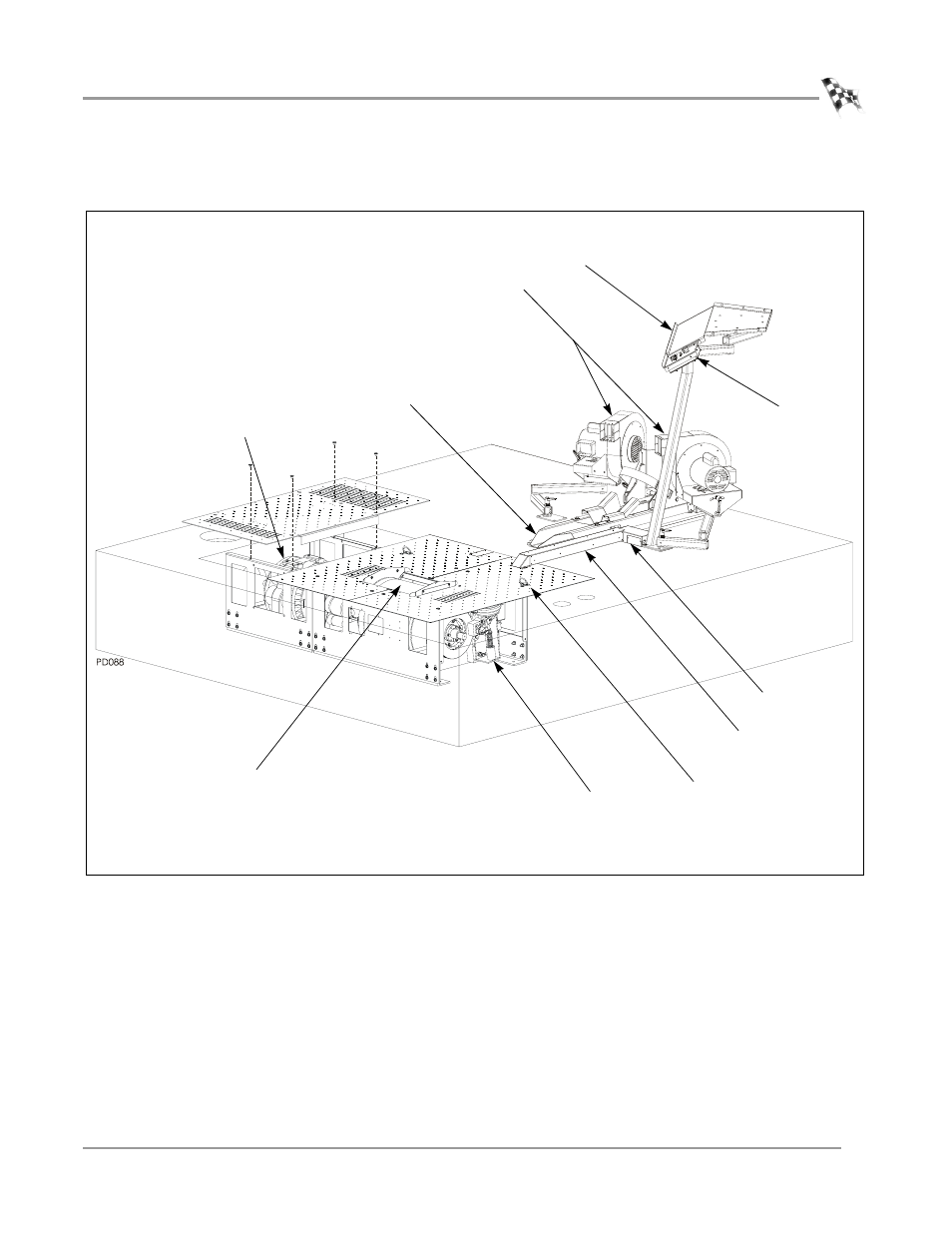

Figure 1-3: Model 200iP/250iP With Optional Accessories
High Pressure Blowers
cools the bike’s engine
(optional)
Eddy Current
Brake Module
with Theta Controller
in CPI box
model 250iP only
Air Brake
(optional)
Air Pump
Assembly
not shown
(optional)
Tire Carriage
with Power Carriage
Monitor Tray
supports the monitor,
keyboard, and mouse
Tie-down Loop
used to secure the
motorcycle to dyno
Drum
precision balanced
and knurled
Control Panel
Cable Cover
Junction Box
Control Panel
Interface
not shown
houses all electronics
