Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
C H A P T E R 2
Blower Mounts, Support Arm and Junction Box
2-18
I NSTALLING THE A RMS AND M ONITOR T RAY
1 Insert a plastic cap in both ends of each arm.
2 Place a poly washer around the pin of the first arm and insert the pin into the
support arm.
3 Place a poly washer around the pin of the second arm and insert the pin into the
first arm.
4 Place a poly washer around the pin of the tray and insert the pin into the second
arm.
Note: The monitor tray is an optional accessory. If you did not order a monitor
tray, skip this step.
5 Check for clearance between the monitor arm and motorcycle, walls, ceiling, etc.
Note: Dynojet does not recommend placing the computer CPU on the
monitor/keyboard tray since vibration can cause damage to the computer.

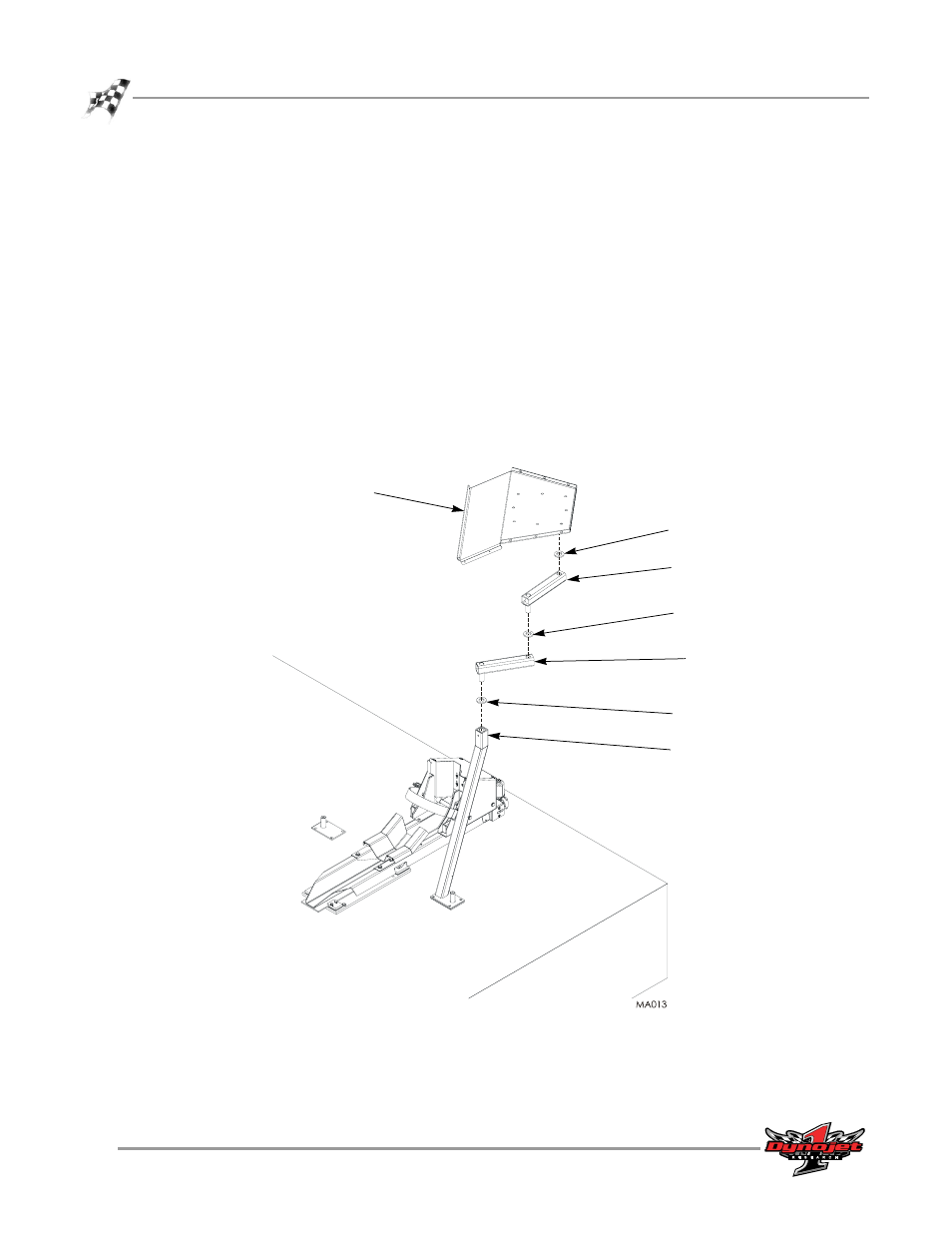

Figure 2-20: Install the Monitor Tray
second arm
poly washer
first arm
monitor tray
support arm
poly washer
poly washer
