Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
C H A P T E R 2
Eddy Current Brake
2-8

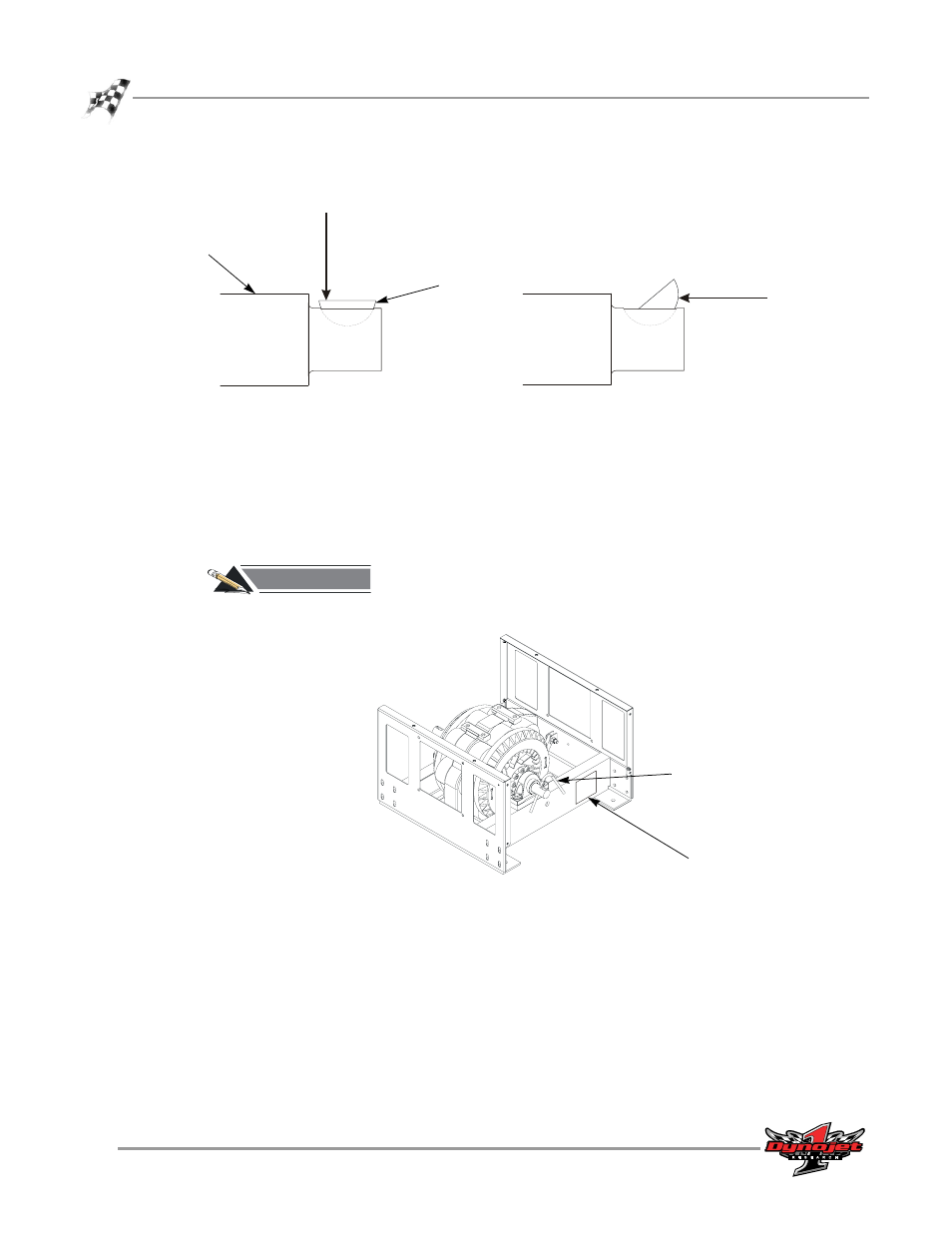

Figure 2-7: Removing the Key
4 Place the ends of a nylon loop strap through the lifting eyes on either side of the
brake and hook onto the shaft.
5 Using a forklift, lift the eddy current brake from the crate and place the brake in the
pit near the drum module making sure not to hit the coupler.
6 Be sure you record the eddy current brake number on the inside cover of
this manual.
# RECORD
Figure 2-8: Record Eddy Current Brake Number
apply force using
hammer and punch
apply force using
hammer and punch
shaft
key
eddy current brake number
lifting eye
