Connecting the RPM Pickup
Version 2 Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
5-7
C ONNECTING THE S ECONDARY I NDUCTIVE P ICKUP
If the primary wire is not accessible connect a secondary inductive pickup to an
available spark plug wire. The secondary inductive pickup cannot be in contact with,
or it’s connecting wire be crossing, other engine electrical wires or stray RF
interference may result.
The inductive pickups contain a fragile Ferrite Core that is sensitive to engine
heat and vibration. Do not drop the inductive pickup or snap the pickup
closed. Use extreme care in handling and placement of the pickups.
1 Clip the secondary inductive pickup around one spark plug wire.
2 Route the inductive pickup cable clear of devices that produce electronic noise
(spark plug wires, coil wire, coil etc.) noise to the dyno electronics RPM
module
. Refer to “Dyno Electronics” on page 1-10.
Note: Inductive pickup placement is important. Position the inductive pickup so
that it is not making contact with any other spark plug wires. Separate the spark
plug wire from the spark plug wire bundle for proper operation.
Note: You must ground the vehicle to the dyno for the electronics to function
properly.
Note: When using one secondary pickup, disconnect the other pickup from the
dyno electronics.

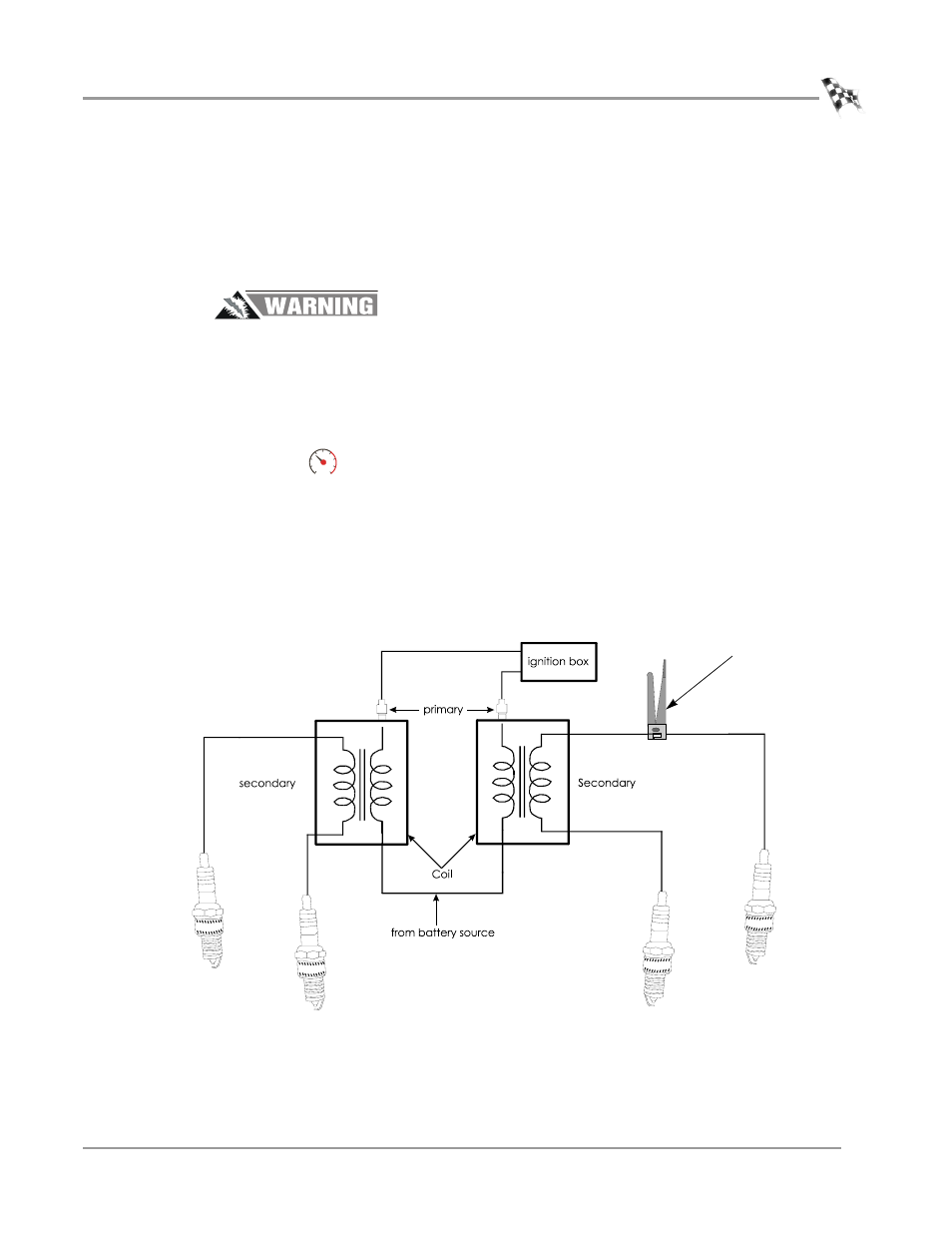

Figure 5-4: Tachometer Pickup Secondary Inductive
connect secondary
pickup to an available
spark plug wire
