Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
C H A P T E R 2
Pit Covers
2-40
2 Remove the four No. 6-32 pan head screws securing the heat shield and insulation
and set aside.
3 Move the heat shield and insulation to other side of the cover as shown in Figure
2-40 and secure with the four No. 6-32 pan head screws removed earlier.

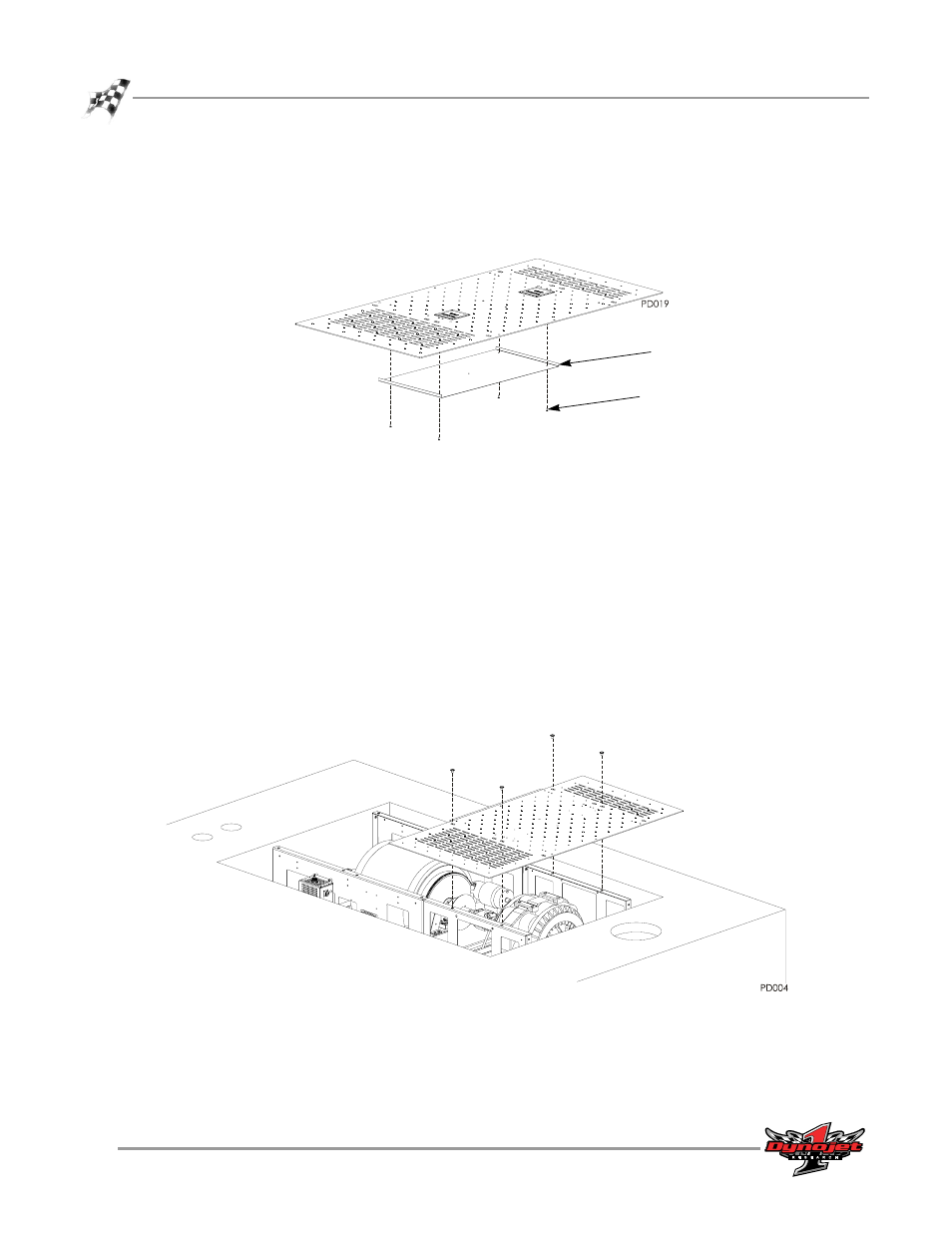

Figure 2-42: Right Side Retarder Cover—Heat Shield and Insulation
4 Move the two angle supports to the other side of the cover as shown in
Figure 2-40 and secure with the six 1/4-20-inch button-head screws, 1/4-inch flat
washers, and 1/4-20-inch lock nuts removed earlier.
5 Continue with the instructions for installing the pit covers.
I NSTALLING THE P IT C OVERS
1 Place the retarder cover over the retarder module.
Note: If your retarder is mounted on the right side, you will need to change the
retarder cover. Refer to page 2-39.
2 Loosely secure the retarder cover using four 3/8-16 x 1/2-inch button-head flange
screws. Do not tighten.
Figure 2-43: Retarder Cover
screw
heat shield
