Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
C H A P T E R 5
Loading the Bike
5-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LOADING THE BIKE
Use the following steps to load a motorcycle on the dyno.
Keep the motorcycle balanced while driving on and off the dyno.
Risk of injury. Always wear proper eye and ear protection when operating the
dyno.
1
Load the bike on the dyno.
2
Place the bike on the dyno so the front tire is in the tire stop.
3
Strap the front wheel to the tire stop and tighten.
Note: If you have the wheel clamp, use the control panel to secure the front
wheel.
Never perform a dyno run if the tire strap is not in place or is damaged.
4
Use the control panel to run the power carriage until the rear axle is aligned with
the center of the drum.
5
With the motorcycle in neutral, align the wheel in the center of the knurl. If you
have a battery installed, you may align the wheel by pressing the dyno starter
switch.

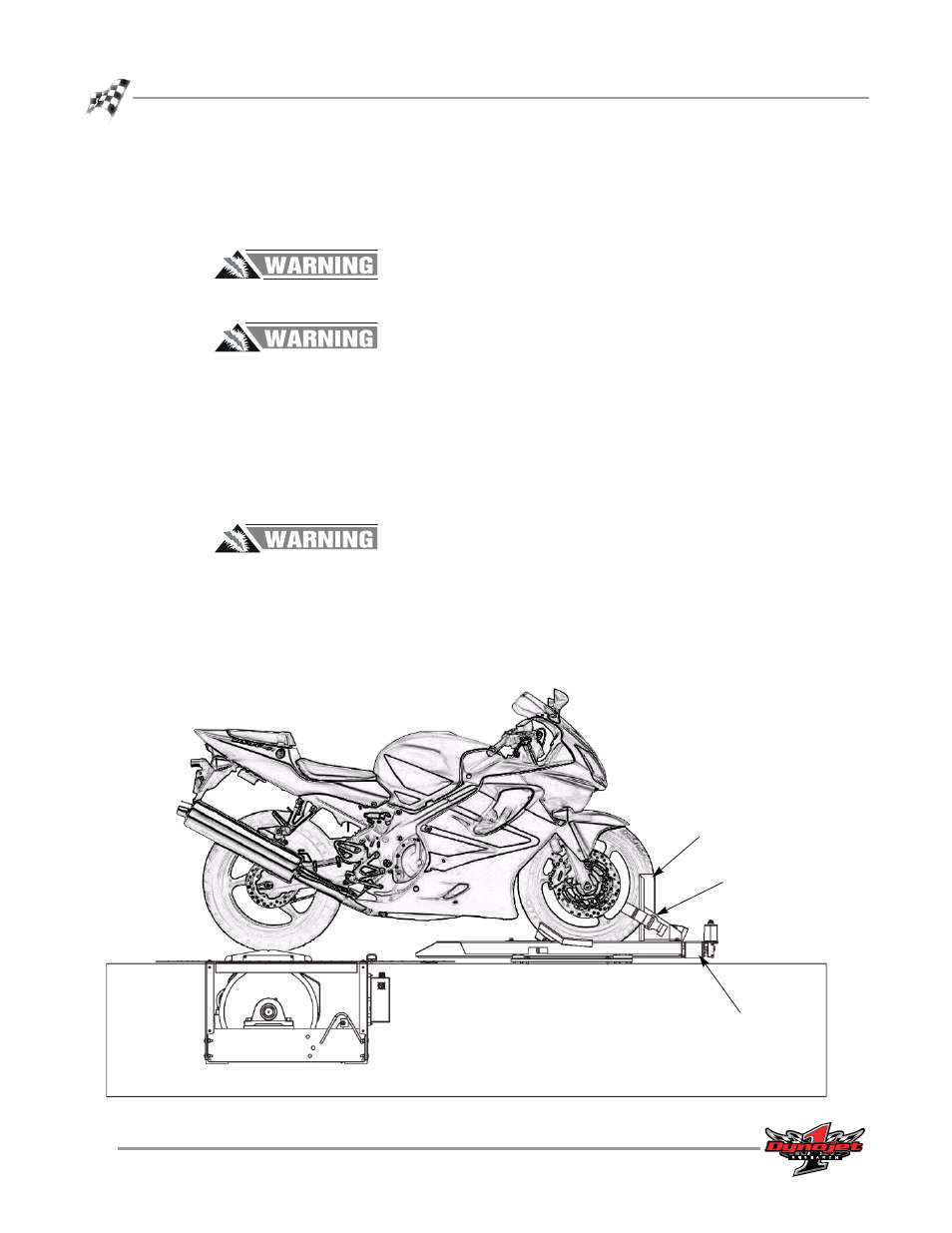

Figure 5-1: Align the Wheel and Axle
tire stop
tire strap
adjust carriage to align
rear axle with drum
center drive axle
on dyno drum
