I N S T A L L A T I O N
Routing Cables
Version 2 Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
2-31
13 Place the power carriage motor assembly near the motor mount and plug the
motor connector into the power carriage cable.
14 Secure the power carriage cover using the four screws removed earlier.
15 Connect the wheel clamp cable to the wheel clamp. Refer to page 3-27 for
instructions on installing the wheel clamp.
Note: If you do not have a wheel clamp, the wheel clamp cable will hang from the
cable track.

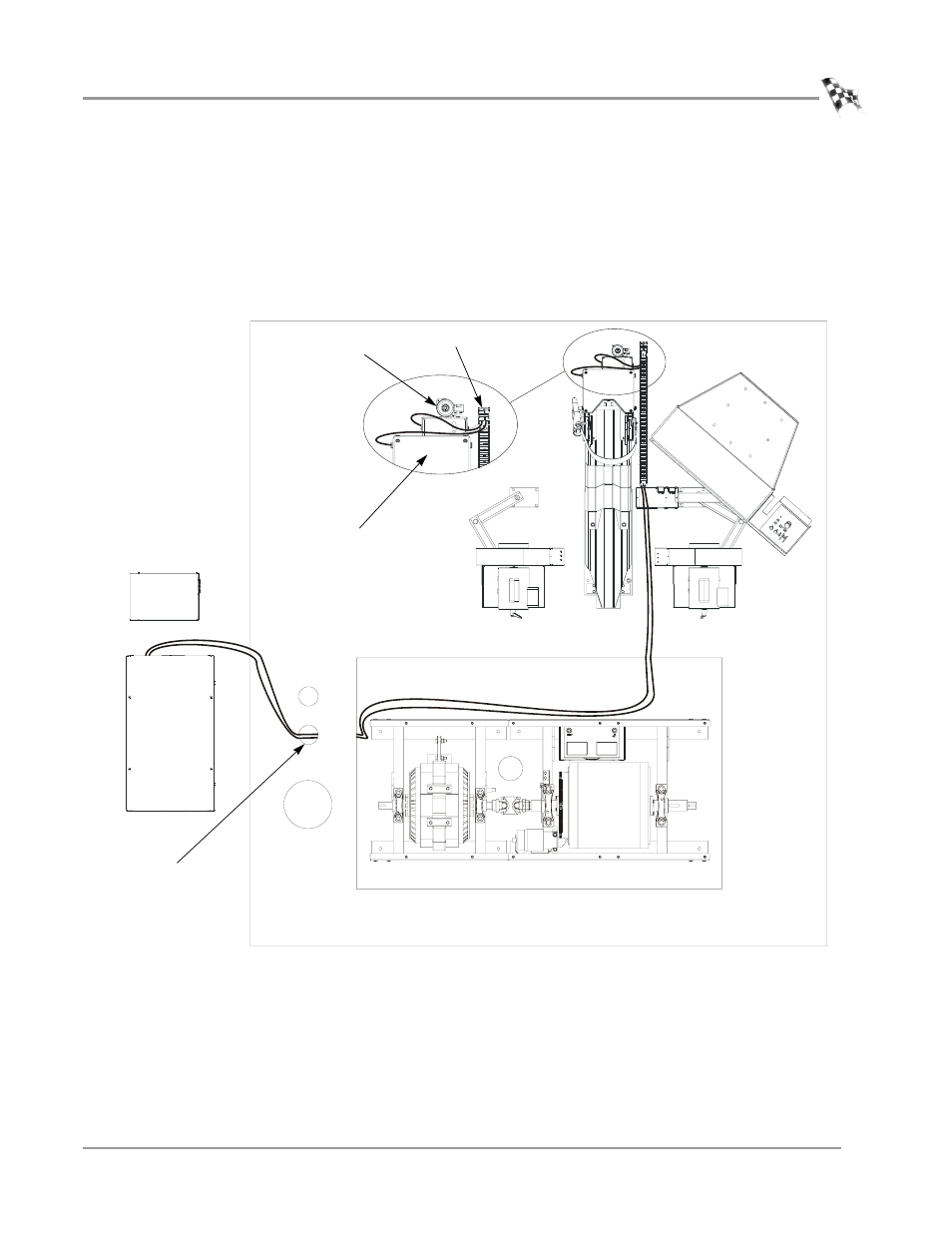

Figure 2-33: Route the Power Carriage and Wheel Clamp Cables
PD033A
power carriage
CPI
wheel clamp
dyno
electronics
route power cables
in designated conduit
cable track
