Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
C H A P T E R 1
Dynamometer Specifications and Requirements
1-6

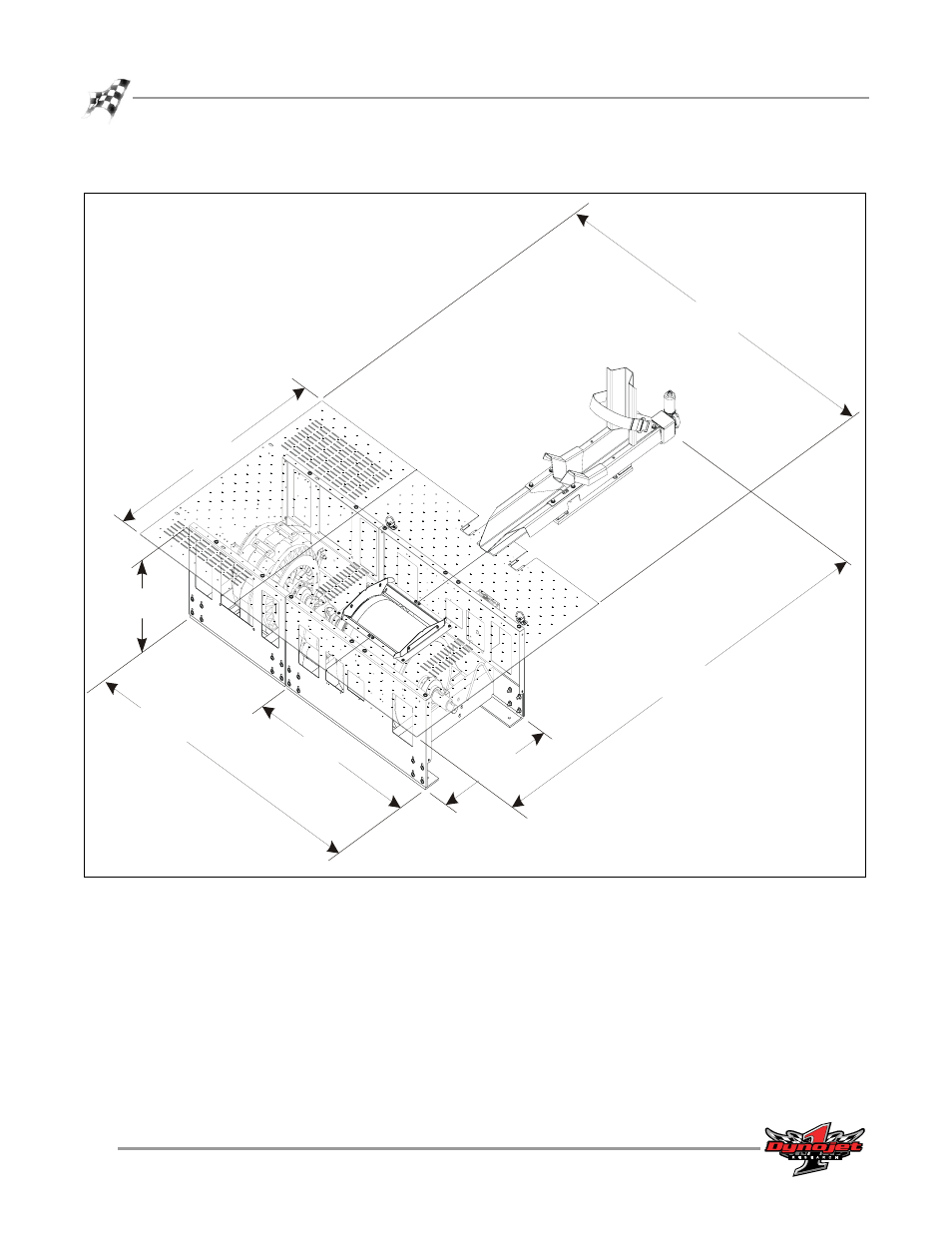

Figure 1-2: Model 200iP/250iP Dimensions
PD017
137.16 cm
(54.00 in)
45.72-46.67 cm
(18.00-18.38 in)
208.28 cm
(82.00 in)
179.07 cm
(70.50 in)
76.20 cm
(30.00 in)
standard carriage: 304.80 cm (120.00 in)
extended carriage: 355.60 cm (140.00 in)
105.03 cm
(41.35 in)
