I N S T A L L A T I O N
Carriage Plate and Tire Carriage
Version 2 Model 200iP/250iP Motorcycle Pit Dynamometer Installation Guide
2-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CARRIAGE PLATE AND TIRE CARRIAGE
The tire carriage is fastened to the bottom of the crate next to the dyno. Refer to page
2-2 for instructions on removing the tire carriage from the crate.
The following instructions are for the standard tire carriage. For more information on
the extended tire carriage refer to page 3-18.
I NSTALLING THE C ARRIAGE P LATE
1 Remove the four bearing plate screws and slide the carriage from the carriage
plate.

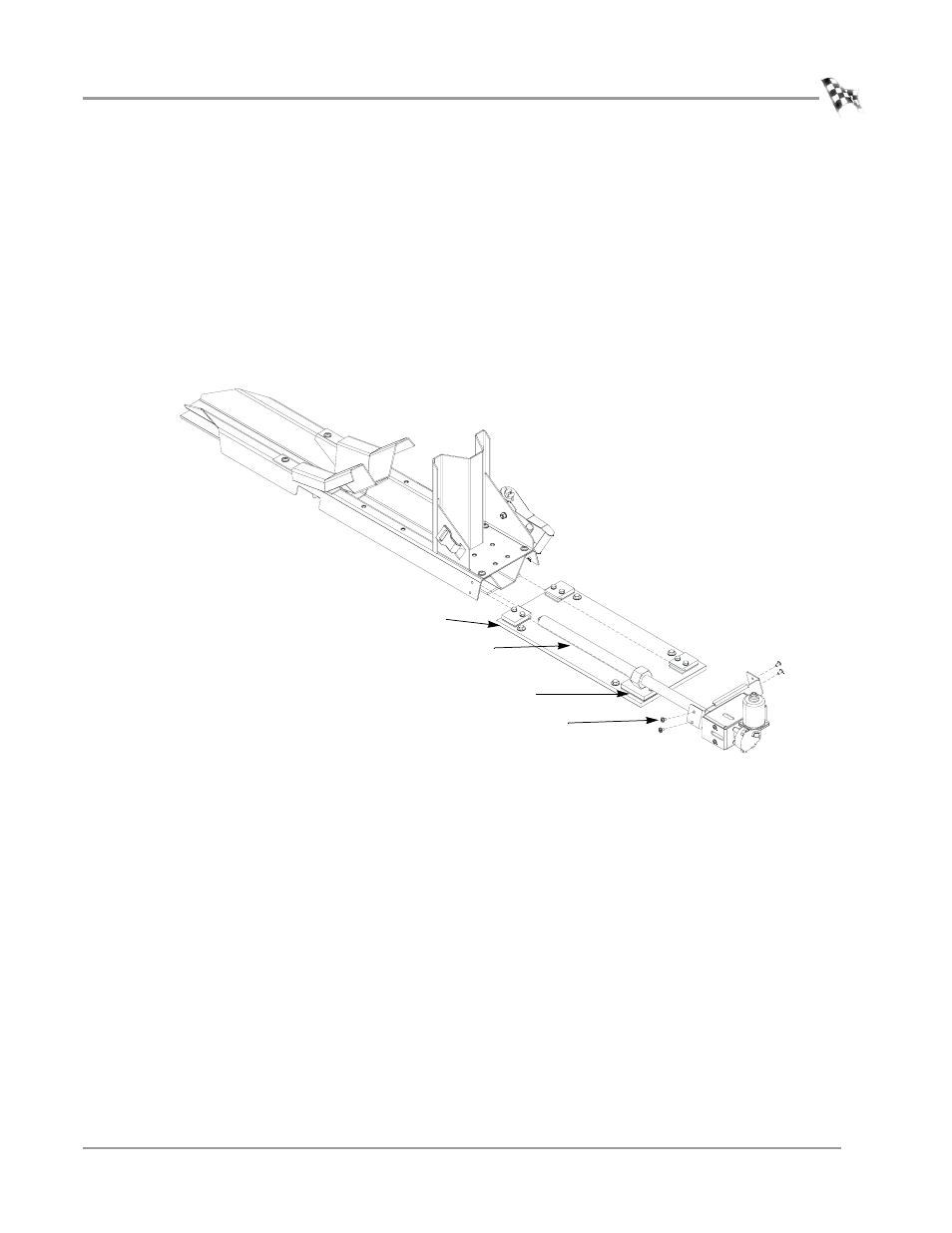

Figure 2-14: Remove the Carriage From the Plate
TC062
carriage plate
carriage screw
nut block
bearing plate
screws
