Ⅷ. The meaning of some displayed symbols:
1. 0
ˉ ˉ ˉ ˉ
----------
zero point is over the setting range
2. 0
_ _ _ _ ----------
zero is below the setting range
3. Ad
ˉ ˉ ˉ
----------
ADC is over max. range;
4. Ad
_ _ _
--------- ADC is below min. range;
5.
ˉ ˉ ˉ ˉ ˉ ---------- weight signal is too large
6. _ _ _ _ _ ------- weight signal is too small
7. EEP.E0 -------- the EEPROM can’t be accessed;
8. EEP.E1---------The parameters are not same with backup data;
9. EEP.E2---------The setting parameter(s) is not in normal range;.
10. CAL-Px --------scale’s calibration point;
11. CAL.Er ---------there is an error in calibration
12.  Hold ----------hold function is active.
13. Net
◄----------- The display reading is net weight
14. Zero
◄----------The scale is at zero point
15. CAP.-- -----------The the setting full capacity will be displayed
16. d.-- -----------The division will be displayed
17. Px.y ----------- The No. x parameter is set to y.
18. Lo.bAt ----------The voltage of batteries or input power is below 4.7V
Ⅸ . The direction of indicator with bracket
The display is supplied with ABS plastic bracket, wall mounting vertically or

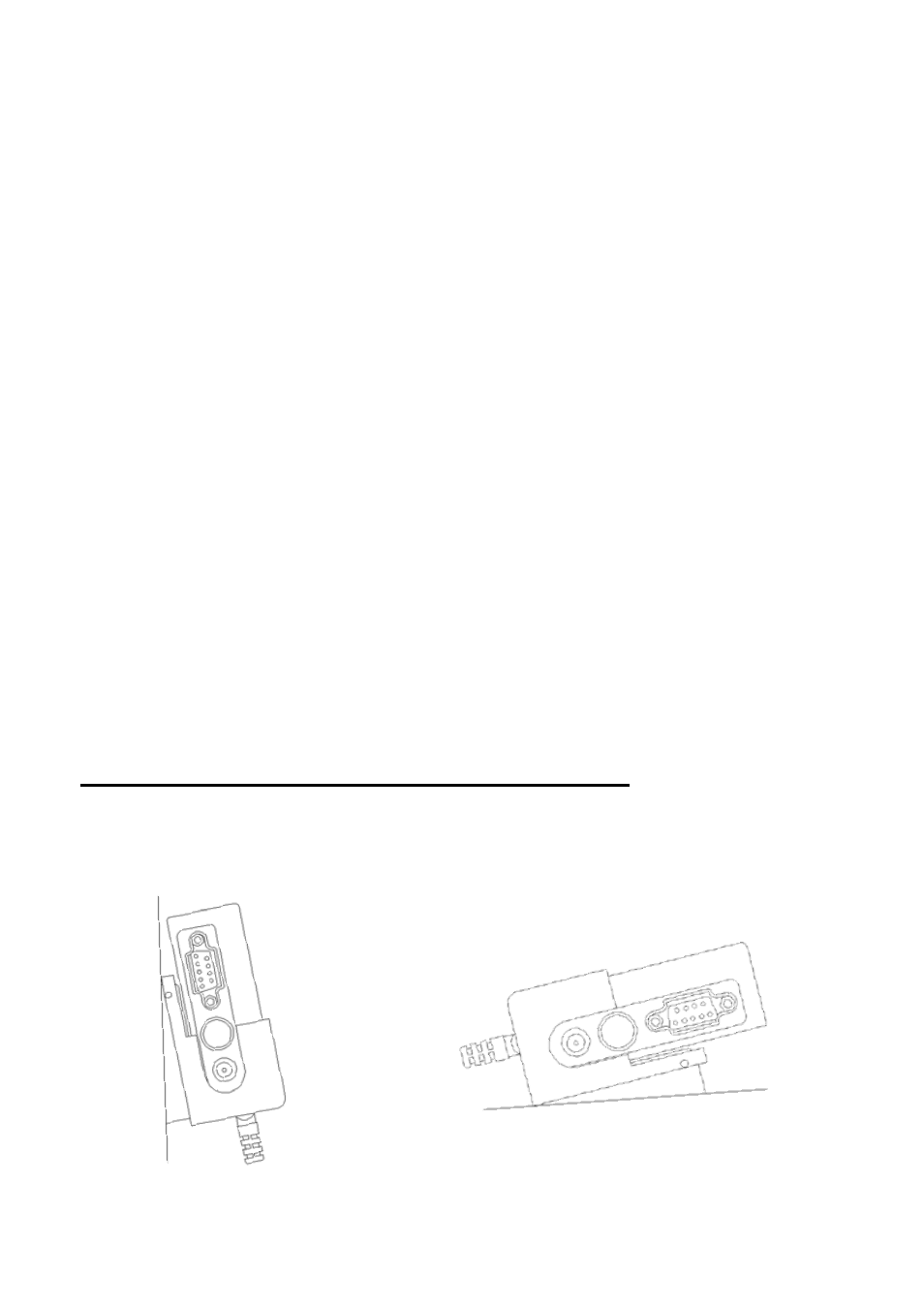

bench mounting horizontally to read the weight display as following drawings.
(1) Placed vertically (2) Placed horizontally
