ITEM
V
W
X
Y
Z
X
AA
AA
AA
AA
AA
AA
AB
AB
AC
AC
AC
AD
AE
AF
AL
AA
AB
AB
AB
AC
AC
AF
AG
AH
AA
AB
AC
AF
AJ
AK

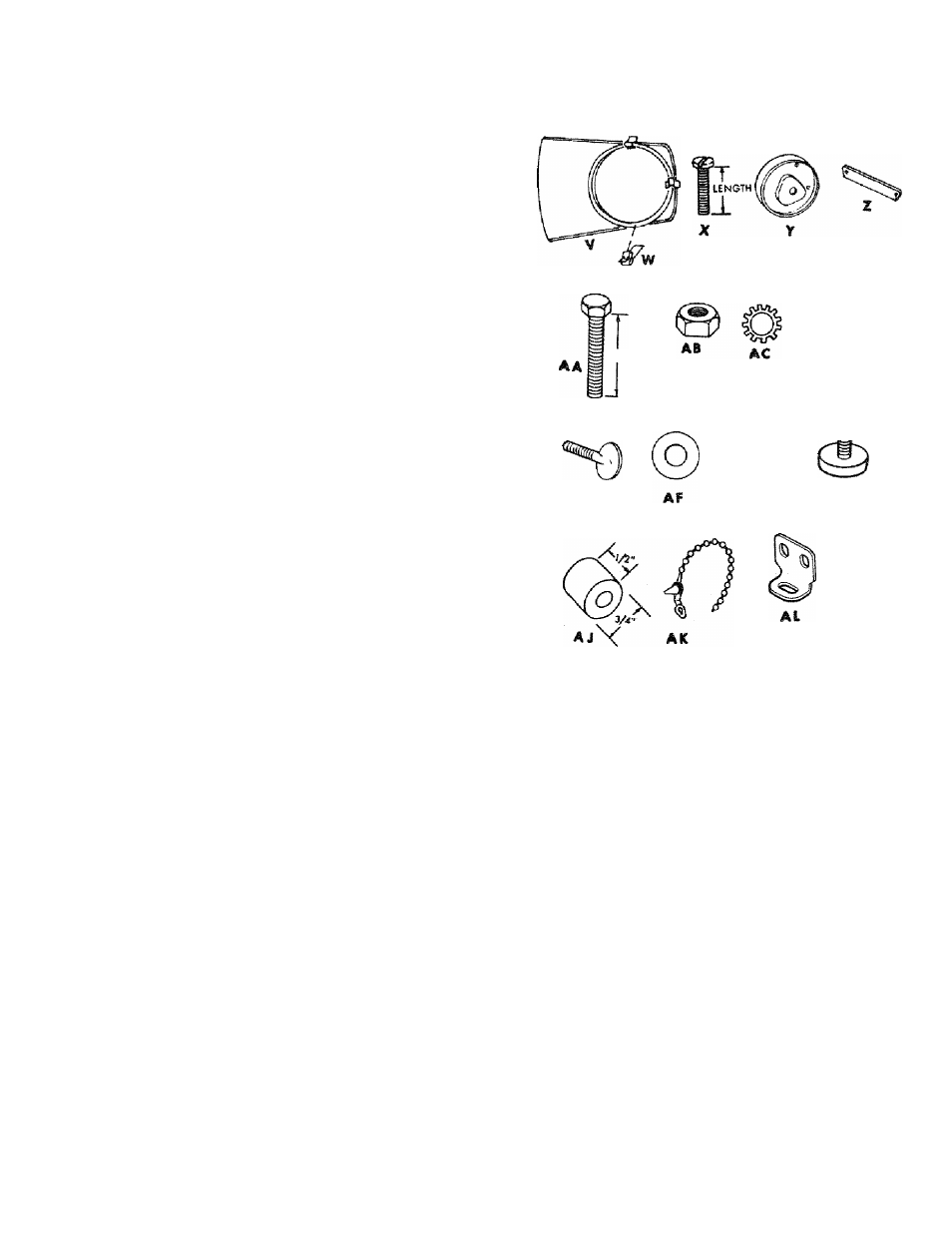

PART NAME
QTY.
Bag of Loose Parts No.
(Containing the following items)
Belt and Pulley Guard.......................................1
BeH Guard Clip “S"........................................... 3
Screw, Pan Hd. 10-32 x 1/2.................................3
Support, Beit Guard............................................1
Belt Guard Support Bracket.............................1
Bag of Loose Parts.......................................... 2
Bag of Loose Parts
{Containing the following items)
Screw, Pan Hd. 10-32 x 3/4................................. 2
Screw, Hex Hd. 1/4-20 x 5/8................................ 2
Screw, Hex Hd. 5/16-18 x 5/8............................. 3
Screw, Hex Hd. 5/16-18 x 3/4............................. 5
Screw, Hex Hd. 5/16-18 x 1................................4
Screw, Hex Hd. 5/16-18 x 1-1/4...........................1
Screw, Hex Hd. 5/16-18 x 1-3/4....................... 2
Nut, Hex 1/4-20...................................................2
Nut, Hex Jam 5/16-18.......................................14
Lockwasher, External #10.................................2
Lockwasher, External 1/4..................................2
Lockwasher, External 5/16..............................16
Carriage Bolt, 5/16-18 x 3/4............................... 4
Screw, Thumb 5/15-18 x 1................................. 1
Washer, 21/64 x 5/8 x 1/16.................................8
Bracket............................................................... 2
Bag of Loose Parts
(Containing the following items)
Screw, Hex Hd. 5/16-18 x 1-1/4......................... 4
Nut, Hex 1/4-20................................................. 24
Nut, Hex Jam 5/16-18.........................................4
Nut, Hex Jam 3/8-16...........................................8
Lockwasher, External 1/4................................24
Lockwasher, External 5/16................................4
Washer, 11/32x Il/I6x 1/16.................................. 8
Screw, Truss Hd. 1/4-20 x 1/2...................... ...24
Foot, Leveling 3/8.............................................. 4
Bag of Loose Parts
(Containing the following items)
Screw, Hex Hd. 5/16-18 x 1-1/4......................... 8
Nut, Heavy Hex Jam 5/16-18............................ 8
Lockwasher, External 5/16............................... 8
Washer, 11/32 x 11/16 x 1/16........................... 8
Bag of Loose Parts
(Containing the foltowing items)
Spacer, Rip Fence Guide Bar........... ................3
Fie, Wire.. ........................................................ 2
LENGTH
AE
A G
A H
