Connections

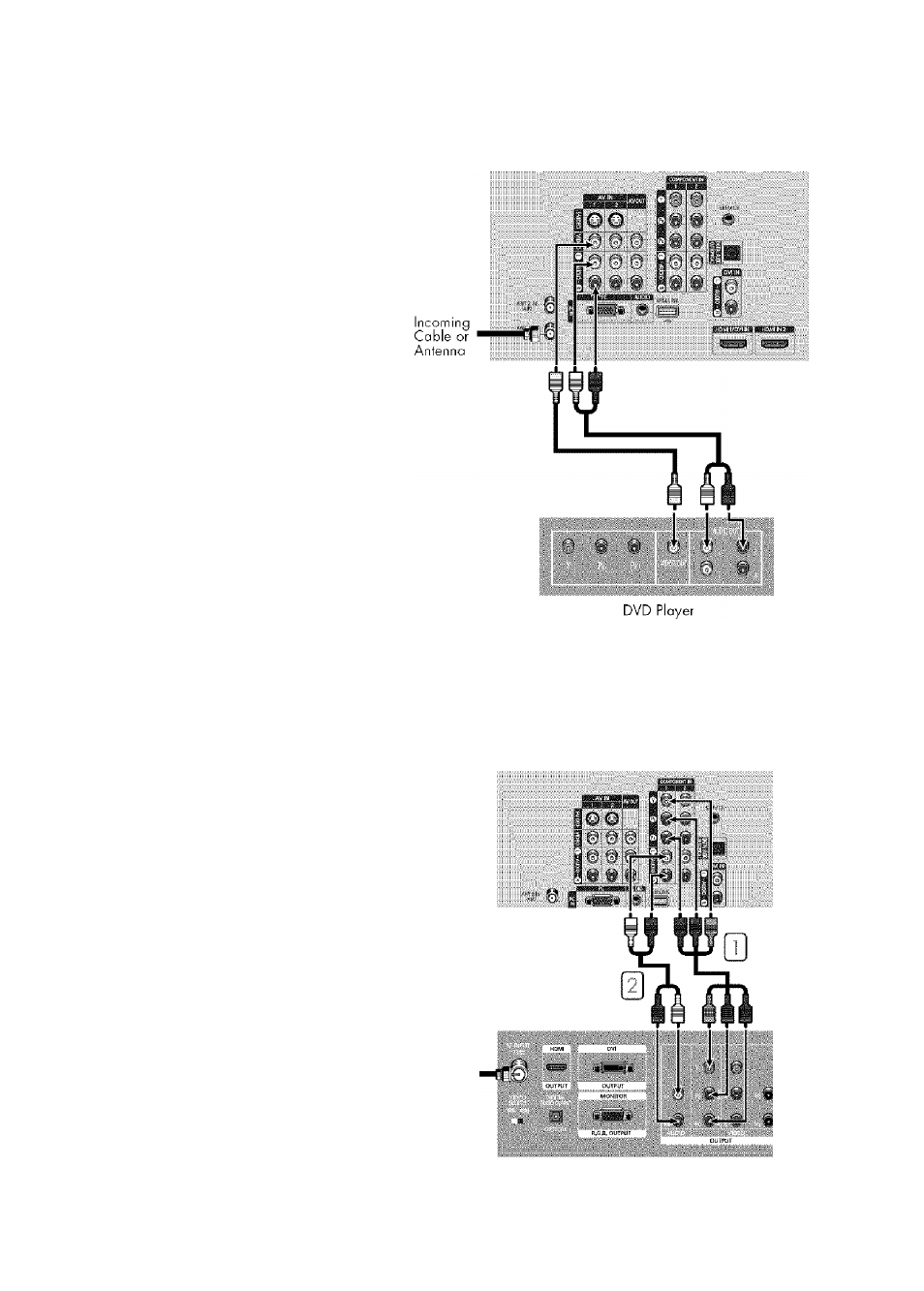

Connecting fo Audio and Video Jacks
Connect a set of audio
cables between the AUDIO
IN ¡1 or 2) jacks on the TV
and the AUDIO OUT jacks
on the DVD player.
Connect a video cable
between the VIDEO IN (1
or 2) jack on the TV and the
VIDEO OUT jack on the
DVD player.
NOTES
•
Component Video separates
the video info YfLuminance
¡Brightness]),
P
b
(Blue) and
P
r
(Red) for enhanced video
quality.
•
Please be sure to match the
color coded Input terminals
and cable jacks.
TV side Panel
Connecting a DTV Set-Top Box
Connecting to Y, P
b
, P
r
Connect a set of component
cables between the
COMPONENT (1 or 2)
VIDEO !X
P
b
,
P
r
I IN jacks
on the TV and VIDEO
(Y/P
b
/P
r
or
Y/C
b
/C
r
)
OUT
jacks on the Set-Top Box,
Connect a set of audio
cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the Set-Top Box.
NOTE
• Please be sure to match the
color coded Input terminals
and cable jacks.
TV Side Panel
Incoming
Cable or
Antenna
DTV Set-Top Box
English - 22
