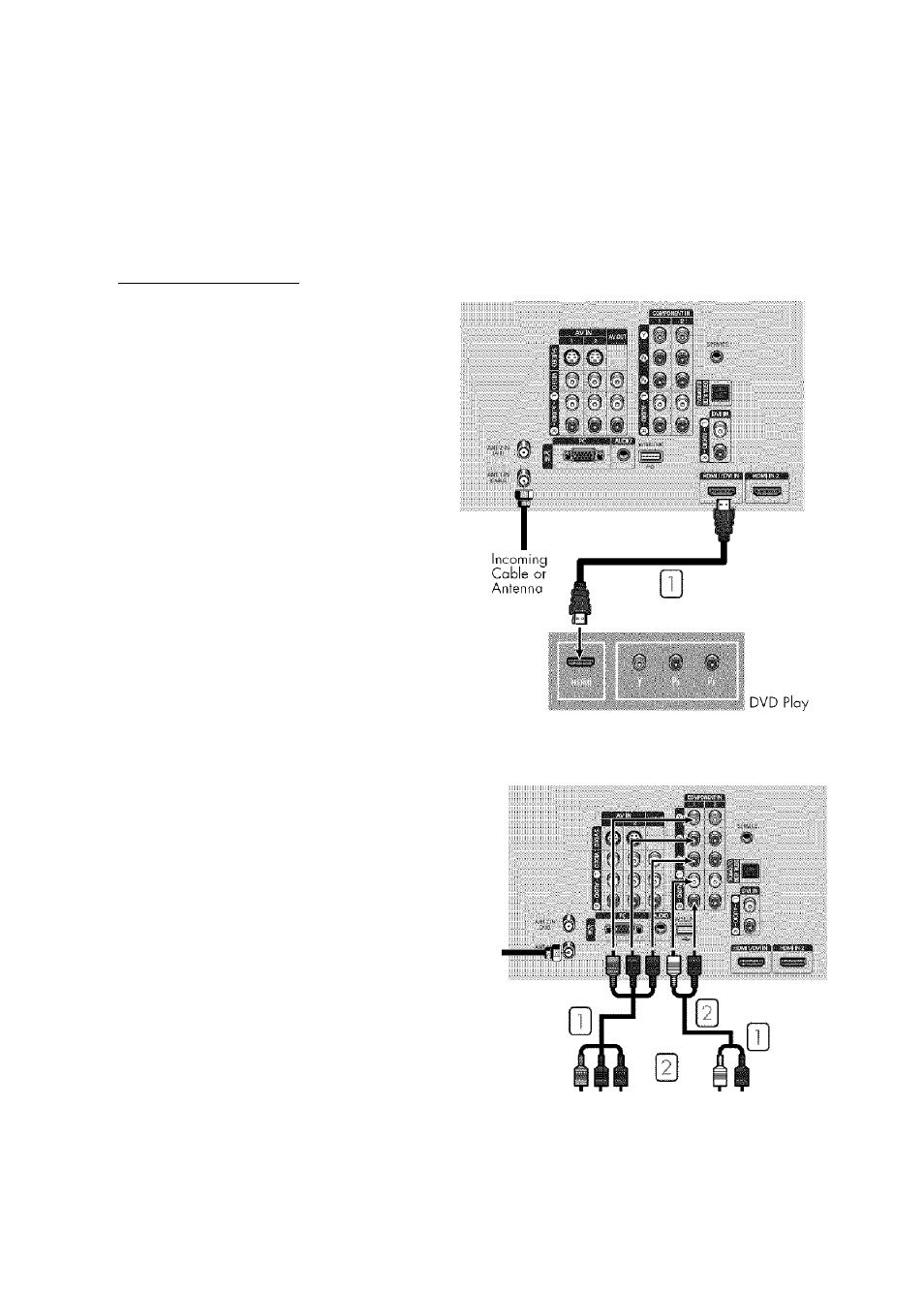

Connecting a DVD Player
The side panel jacks on your TV make it easy to connect a DVD player to your TV.
Connecting to HDMI (High Definition
JUlultimedia Interface)_______
‘I Connect an HDMI coble
i
between the HDMI IN 2 [or
‘ HDMI 1/DVMN) jock on the
TV and the HDMI OUT jack on
the DVD player.
NOTE
• Make sure the DVD player is
turned
on
when
connected
via
HDMI in order to select it in
the TV menu's source list.
Connecting to Y, P
b
, P
r
To enable Component video
viewing, connect a set of
component cables between
the COMPONENT (1 or 2)
VIDEO [Y, P
b
, P
r
) IN jacks
on the TV and the
COMPONENT (Y/P
b
/P
r
or
Y/C
b
/C
r
)
out
jacks on the
DVD player.
Connect a set of audio
: cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on
the TV and the AUDIO OUT
jacks on the DVD player.
NOTE
• Please be sure to match the
color coded input terminals
and cable jacks.
TV Rear Panel
TV Side Panel
Incoming
Cable or
Antenna
1 ' 1 ' 1. 1 ^ 1
DVD Player
English - 2 1
