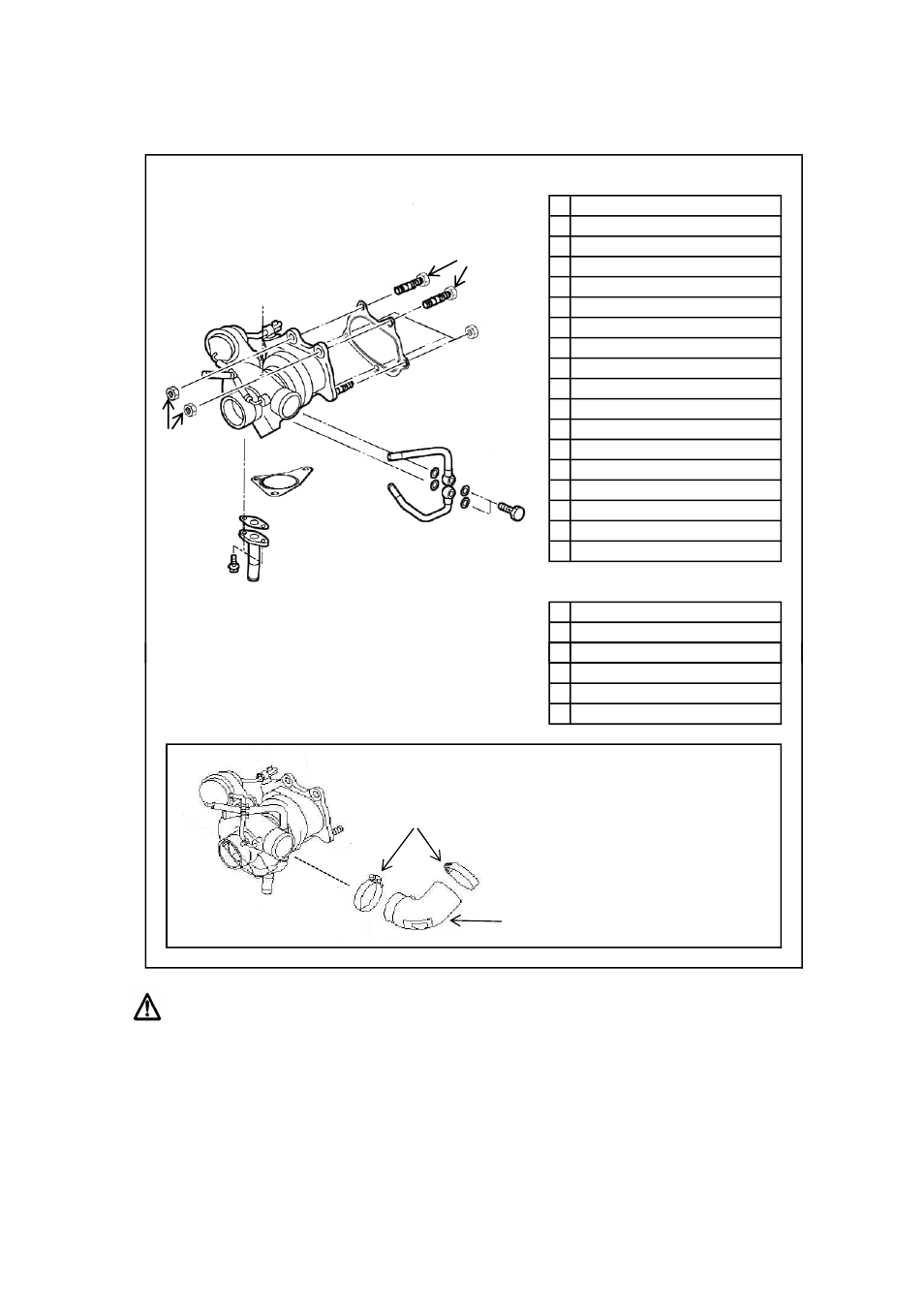

4. TURBO INSTALLATION
The following parts are required to install the turbo.
【 REQUIRED PARTS 】
①
AN4-M10 P1.5 ADAPTER
② EYE BOLT GASKET (SMALL)
③ NUT
④ GASKET A
⑤ WATER PIPE A
⑥ WATER PIPE B
⑦ EYE BOLT GASKET (LARGE)
⑧ EYE BOLT (LARGE)
⑨ GASKET B
⑩ OIL RETURN PIPE GASKET
⑪ OIL RETURN PIPE
⑫ BOLT
⑬ AN MALE to AN FEMALE 90°
⑭ MESH HOSE
⑮ AN4-M12 P1.0 ADAPTER
⑯ THERMAL HOSE
⑰ HOSE BAND
⑱ COMPRESSOR DISCHARGE HOSE
【 TORQUE SPECS 】
①
16N・m (1.6kgm)
③ 35N・m (3.6kgm)
⑧ 35N・m (3.6kgm)
※ There are the OEM
parts to be reused.
※
※
③
④
⑤
⑥
⑦
⑦
⑧
⑨
⑩
⑪
⑫
16
⑧ 35N・m (3.6kgm)
⑫ 4.4N・m (0.45kgm)
⑮ 16N・m (1.6kgm)
※ 35N・m (3.6kgm)
Impreza Sti 2008 or later vehicles
will require to use the supplied
parts to connect the Turbo to
the stock intercooler layout.
■ When installing the pipes/tubes please be sure not to over tighten them or screw them on the wrong
way as you can damage these parts and/or related parts.
■ The M8265 turbos inlet diameter is much larger than the stock type.
So the stock suction hose cannot be installed.
Tomei Turbo Suction Hose, Part Number 451002 will be required. (sold seperately).
CAUTION
⑰
⑱
