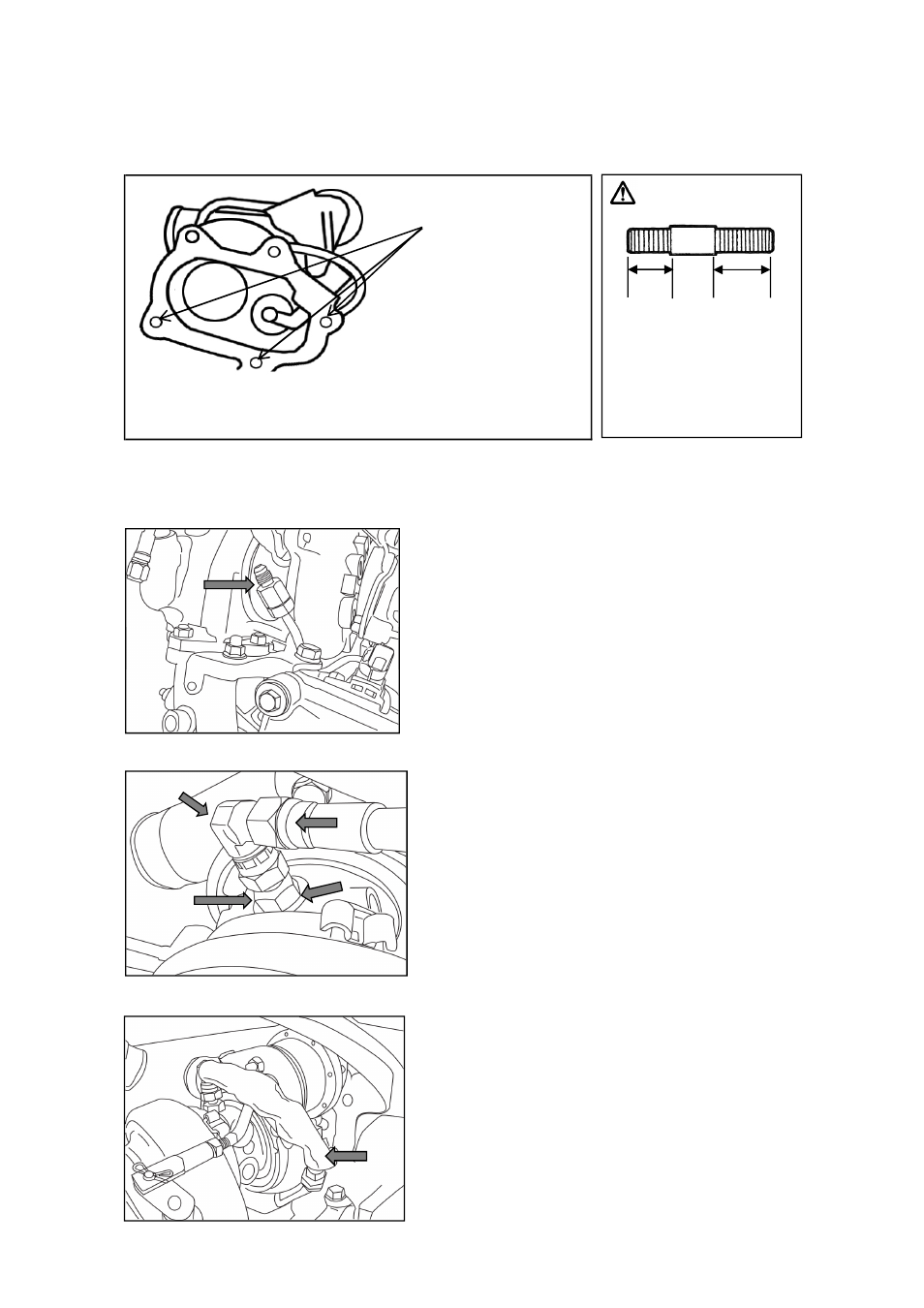

2. STUD BOLT INSTALLATION
（1） Install the side bolts supplied with the turbine.
Install the stud bolt to the ARMS Turbo.
To be fitted in
these 3 places
3. OIL LINE INSTALLATION
⑮ Attach the oil line pipe to
the AN4-M12 P1.0 adapter.
※Turbine has the shorter side
of the bolt.
※These are to be used with a
double nut method.
※When remove the nut
please ensure that the
bolt doesn't move.
Pay attention to the
stud bolts direction
SHORT LONG
⑮
15
② Copper Washer
① AN4-M10 P1.5 Adapter
⑬ AN Male to AN Female 90°
⑭ Attach the Turbo to the Mesh Hose
⑯ Attach the Mesh hose
to the Thermal Hose
⑭
⑬
②
①
⑯
15
