12.
Gently pull and hold open the RAID battery compartment tab, route the RAID battery cable through the bottom opening, and then lower the RAID
battery into the compartment. See
13.
Route the battery cable through the battery-cable securing clip and connect the battery cable to the RAID battery cable connector on the expansion-
card riser board. See
.
See
Figure A
-4
or
Figure A
-5
to locate the RAID battery cable connector on the expansion-card riser board.

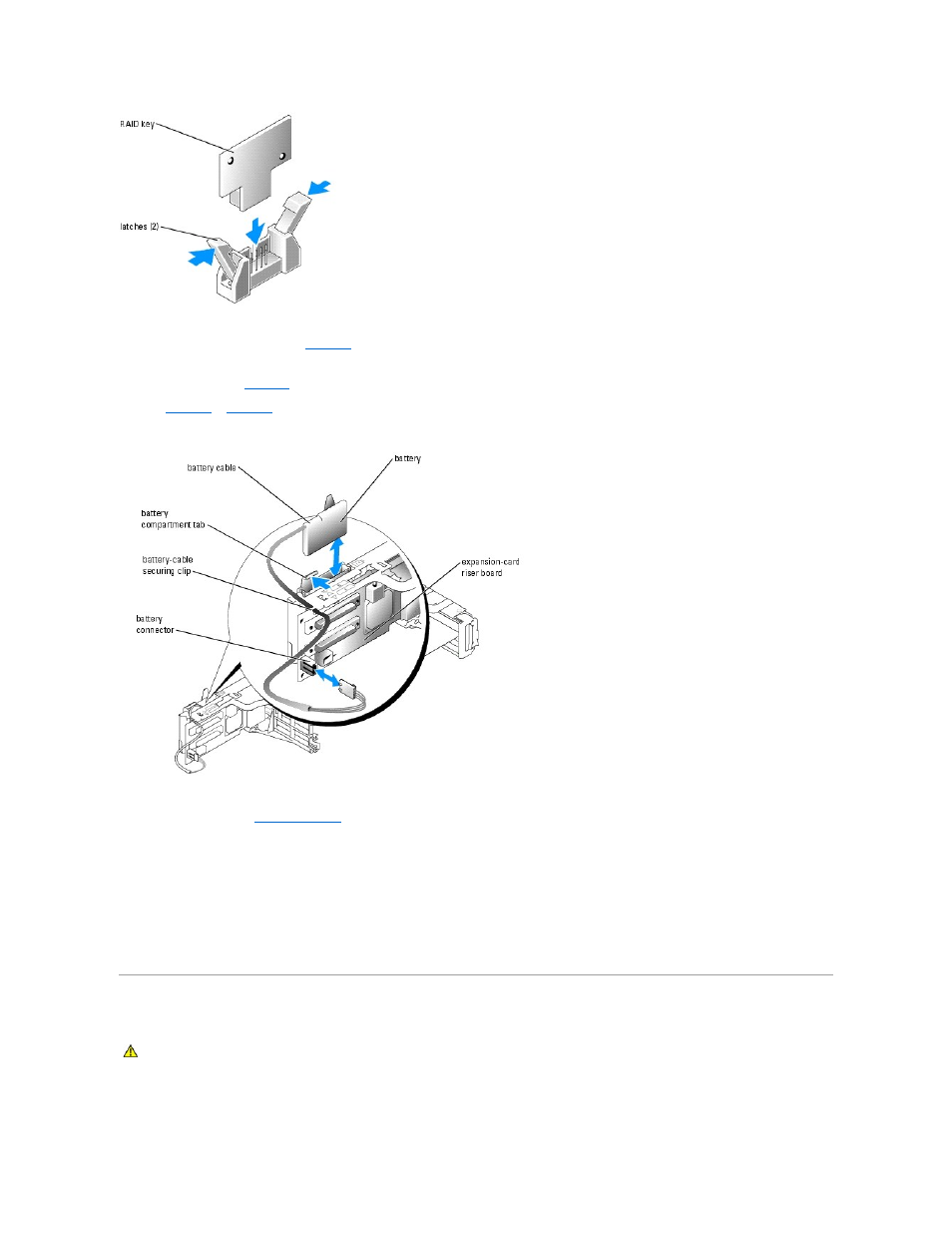

Figure 7-5. Removing and Installing the RAID Battery
14.
Close the system. See "
Closing the System
" in "Troubleshooting Your System."
15.
Reconnect the system to its electrical outlet and turn on the system, including any attached peripherals.
16.
Enter the System Setup program and verify that the setting for the SCSI controller has changed to reflect the presence of the RAID hardware. Change
settings of the SCSI controller to enable RAID mode. Restart the system and press y to confirm the changes. See "Using the System Setup Program" in
your User's Guide.
17.
Install the RAID software.
See the RAID documentation for more information.
Installing a RAID Controller Card
Follow these general guidelines when installing a RAID controller card. For specific instructions, see the documentation supplied with the RAID controller card.
CAUTION:
Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See
your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
