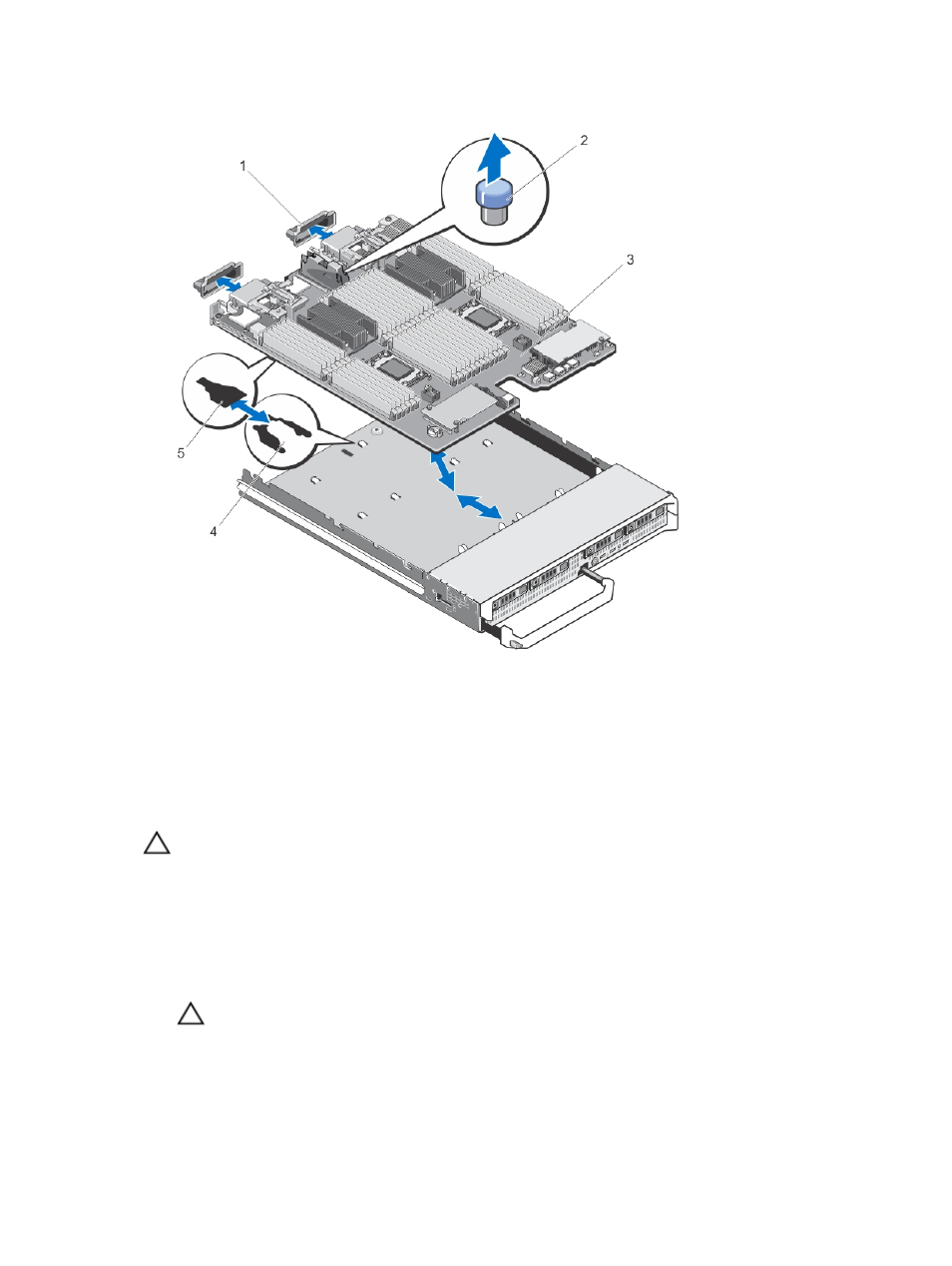

Figure 21. Removing and installing the system board

1.

I/O connector cover

2. retention pin

3. system board

4. tabs on system chassis

5. slots in system board tray

Installing the system board

CAUTION: Exercise care when removing and installing the system board in the sled, to prevent

any damage to the system board.

1.

Transfer the following components to the new system board:
• storage controller card(s)
• internal USB key
• processors and heat sinks, or processor/DIMM blanks
• memory modules and memory module blanks

CAUTION: Ensure that the system board plate is parallel with the chassis.

2. Slide the new system board into the open end of the server module chassis until the retention latch

engages.

51
