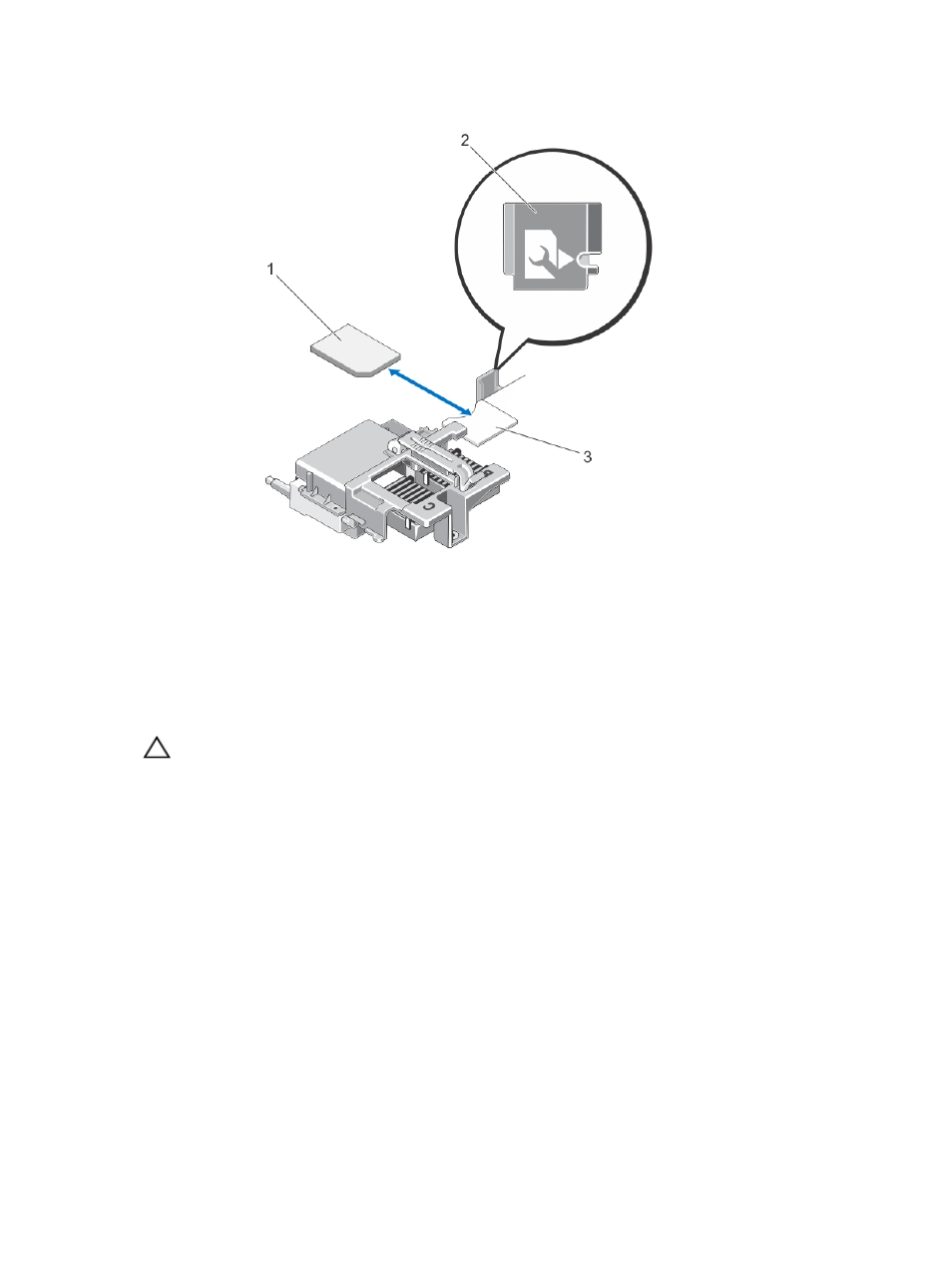

Figure 16. replacing the SD vflash card
1. SD vFlash card 2. SD vFlash card slot identification label
3. SD vFlash card slot
Processor/DIMM blank
CAUTION: If you are permanently removing a processor, you must install a socket protective cap
and a processor/DIMM blank in the vacant socket to ensure proper system cooling. The
processor/DIMM blank covers the vacant sockets for the DIMMs and the processor.
Removing a processor/DIMM blank
1. Remove the server module from the enclosure.
2. Open the server module.
3. Remove the cooling shroud.
4. Lift the processor/DIMM blank away from the system.
