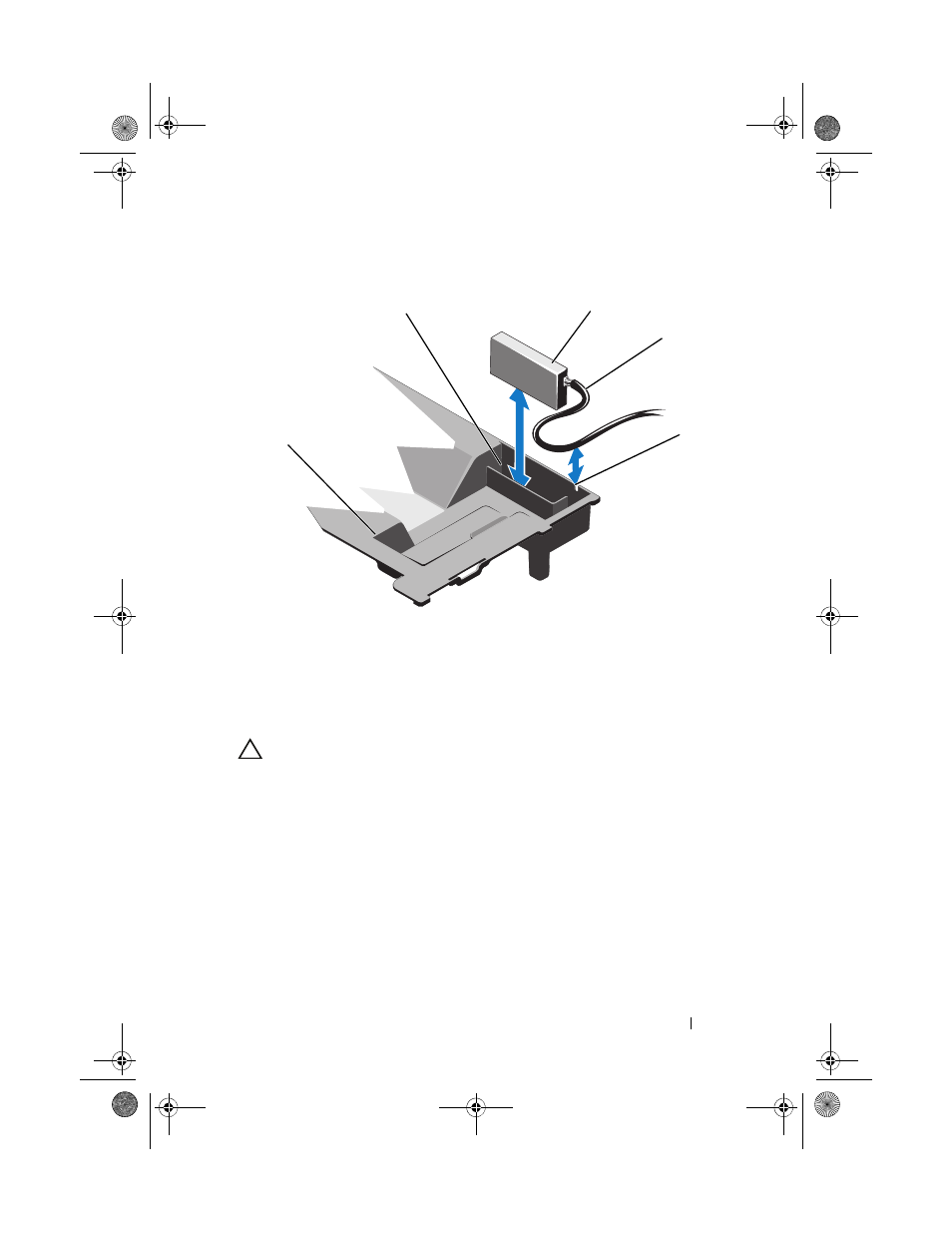

Figure 3-19. Removing and Installing the RAID Battery
Installing the RAID Battery
CAUTION:
Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow the safety instructions that
came with the product.
1 Insert the RAID battery into the battery carrier in the cooling shroud.
See Figure 3-19.
2 Route the RAID battery cable along the chassis wall and through the slot
in the battery carrier.
3 Tuck any cable slack into the area in front of the battery carrier slot.
4 Connect the battery cable to the connector on the integrated storage
controller card.
1
RAID battery carrier
2
RAID battery
3
RAID battery cable
4
RAID battery carrier slot
5
cooling shroud
4
2
3
5
1
