Media card reader – Dell OptiPlex 740 User Manual
Page 55
4.
Attach the power and floppy-drive cables to the floppy drive.
5.
Connect the floppy drive cable to the DSKT connector on the system board (see
System Board Components
for the connector locations).
6.
Align the shoulder screws with the screw guides, and slide the drive into the bay until it clicks into place.
7.
Replace the optical drive (see
Installing an Optical Drive).
8.
Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.
9.
Replace the computer cover (see
Replacing the Computer Cover
).
10.
Enter system setup and set the Diskette Drive option to enable your new floppy drive (see
Entering System Setup
).
11.
Verify that your computer works correctly by running the Dell Diagnostics (see
Dell Diagnostics
).
Media Card Reader
Removing the Media Card Reader
1.
Follow the procedures in
Before You Begin
.
2.
Remove the optical drive (see

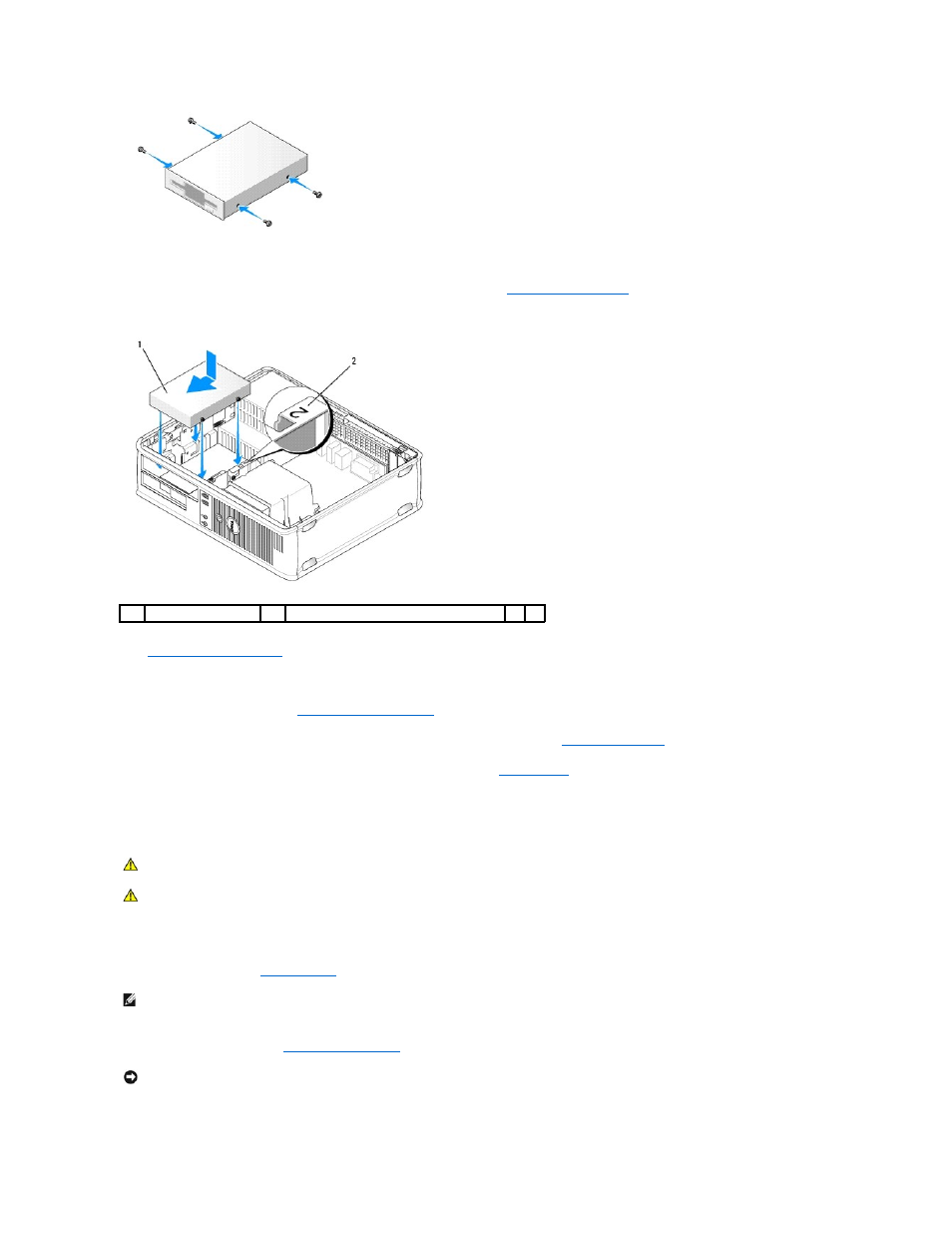

1
floppy drive
2
slot verification number
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
CAUTION:
To guard against electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.
NOTE:
Since the following steps do not require the complete removal of the optical drive, it is not necessary to disconnect the cables connecting the
optical drive.
NOTICE:
Do not pull the drive out of the computer by the drive cables. Doing so may cause damage to cables and the cable connectors.
