Installing System Components 85

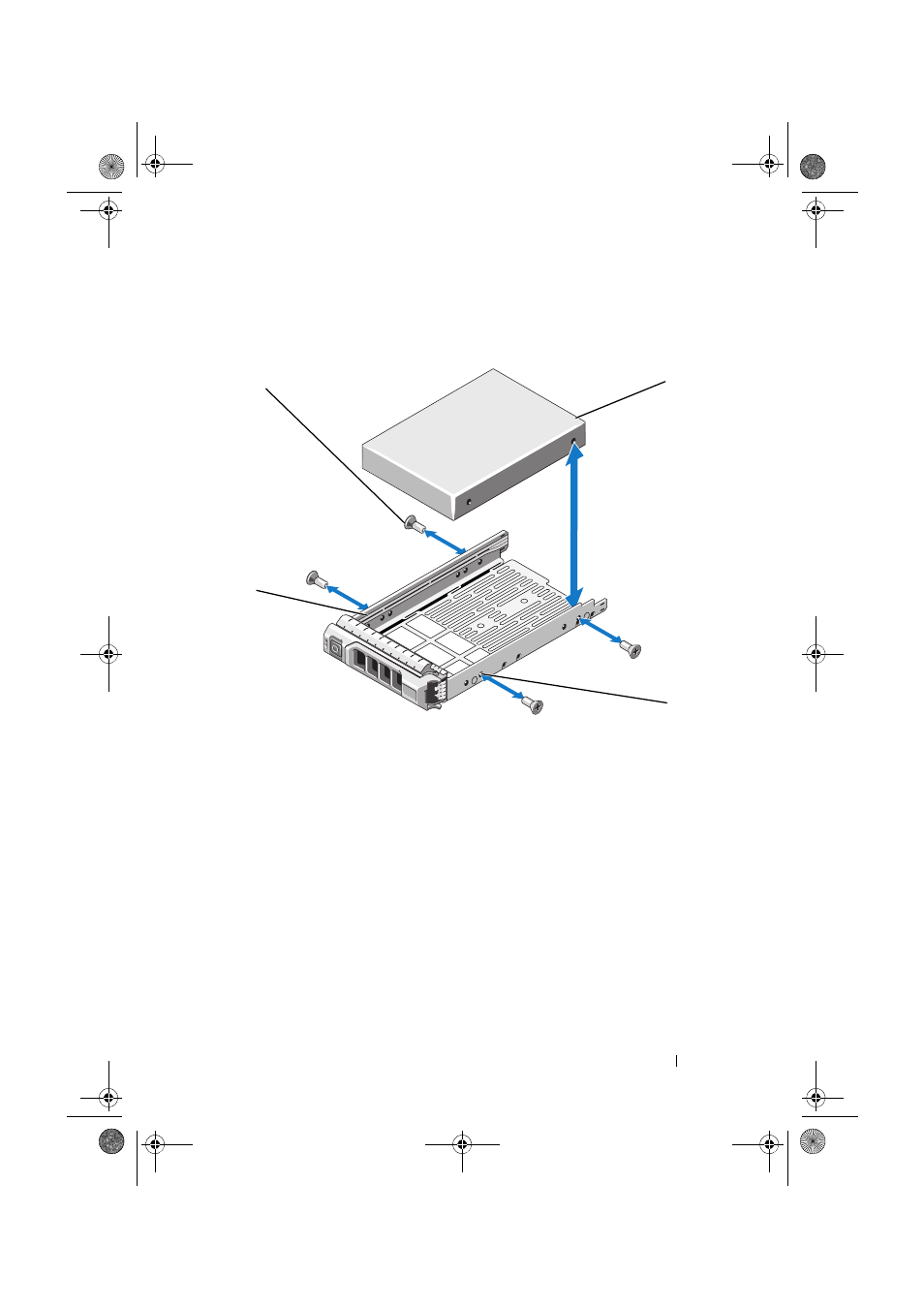

Figure 3-7. Removing and Installing and a Hard Drive
Installing a Hard Drive Into a Hard-Drive Carrier
1 Insert the hard drive into the hard-drive carrier with the connector end of
the drive at the back. See Figure 3-7.
2 Align the screw holes on the hard drive with the back set of holes on the
hard-drive carrier.
When aligned correctly, the back of the hard drive will be flush with the
back of the hard-drive carrier.
3 Attach the four screws to secure the hard drive to the hard-drive carrier.
1 screws (4) 2 hard drive
3 SAS/SATA screw hole 4 hard-drive carrier
3
2
4
1
