18 About Your System
Back-Panel Features and Indicators

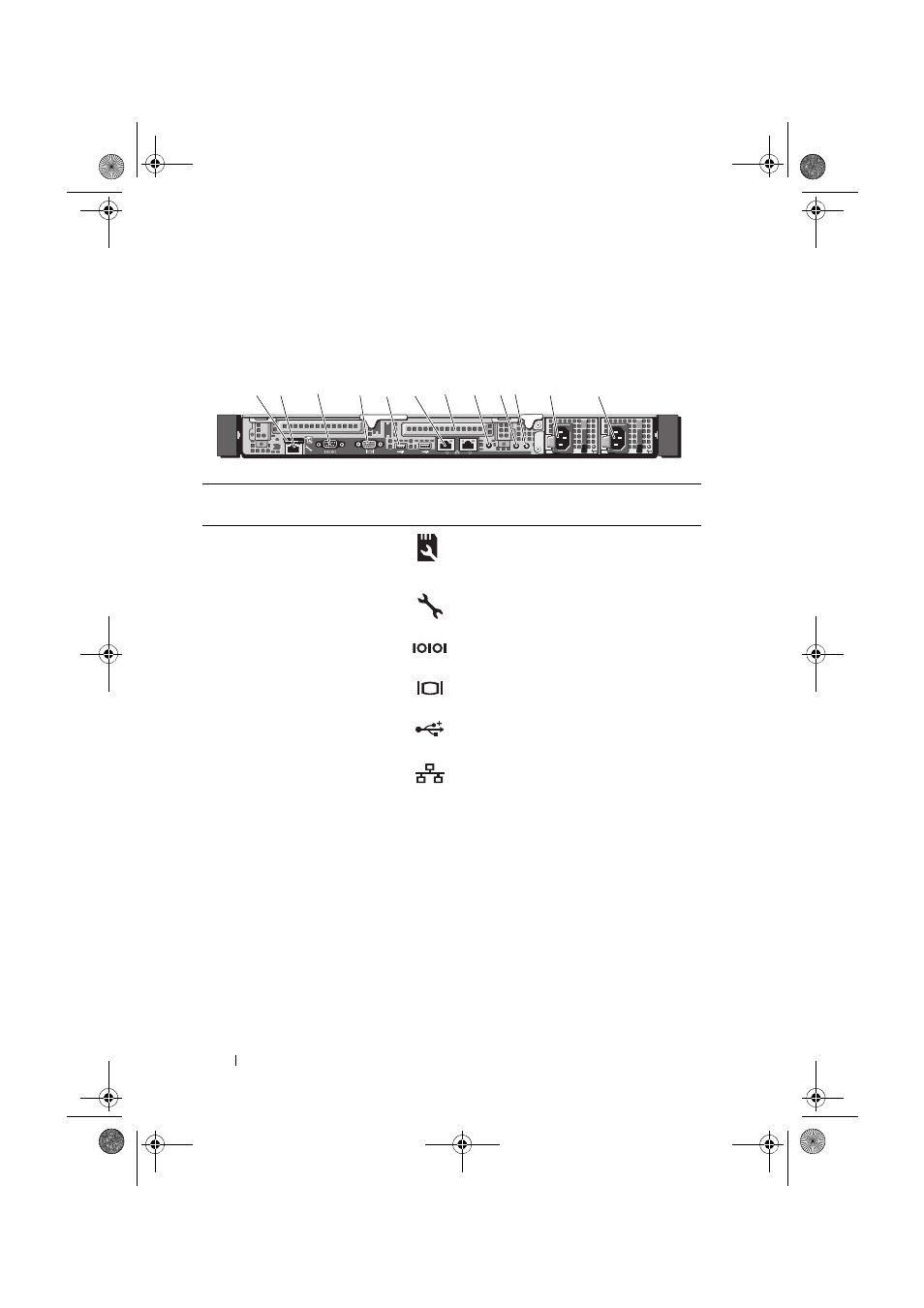

Figure 1-4. Back-Panel Features and Indicators
Item Indicator, Button, or
Connector Icon Description
1 VFlash media slot
(optional)
Connects an external SD memory card
for the optional iDRAC6 Enterprise
card.
2 iDRAC6 Enterprise
port (optional)
Dedicated management port for the
optional iDRAC6 Enterprise card.
3 Serial connector Connects a serial device to the system.
4 Video connector Connects a VGA display to the system.
5 USB connectors (2) Connect USB devices to the system.
The ports are USB 2.0-compliant.
6 Ethernet connectors
(2)
Embedded 10/100/1000 NIC
connectors.
7 PCIe slots (2) PCI Express (generation 2) expansion
slot (full-height, half-length).
8 System identification
connector
Connects the optional system status
indicator assembly through the
optional cable management arm.
Gb 1 Gb 2
2 1
1 2 3 4 7 8 9 10 11 12 5 6
