LCD Panel Features (Optional)
The system's LCD panel provides system information and status and error
messages to signify when the system is operating correctly or when the system
needs attention. See "LCD Status Messages" on page 22 for information on
specific status codes.
The LCD backlight lights blue during normal operating conditions and lights
amber to indicate an error condition. When the system is in standby mode,
the LCD backlight switches off after 5 minutes of inactivity, and can be
turned on by pressing the Select button on the LCD panel. The LCD
backlight remains off if LCD messaging is turned off through the BMC or
iDRAC utility, the LCD panel, or other tools.

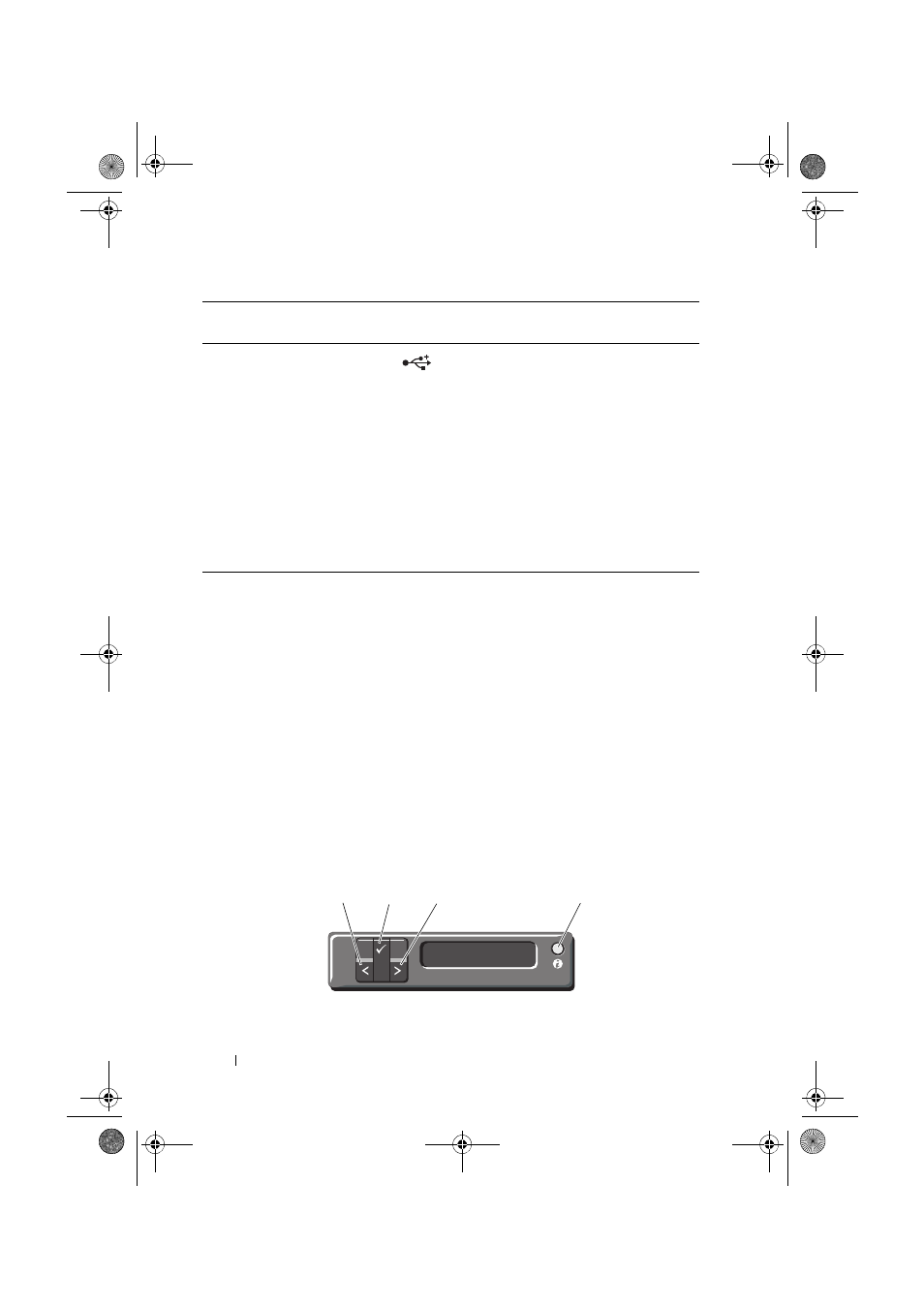

Figure 1-2. LCD Panel Features
8 USB connectors (2) Connect USB devices to the system. The
ports are USB 2.0-compliant.
9 Hard drives (4) Up to four 3.5-inch hot-swappable hard
drives.
10 System identification
panel
A slide-out panel for system information
including the Express Service tag,
embedded NIC MAC address, and
iDRAC6 Enterprise card MAC address.
11 Optical drive
(optional)
One optional slim-line SATA
DVD-ROM drive or DVD+/-RW drive.
NOTE: DVD devices are data only.
