Monitor connector, Ps/2 connector – Dell Inspiron 7000 User Manual
Page 44

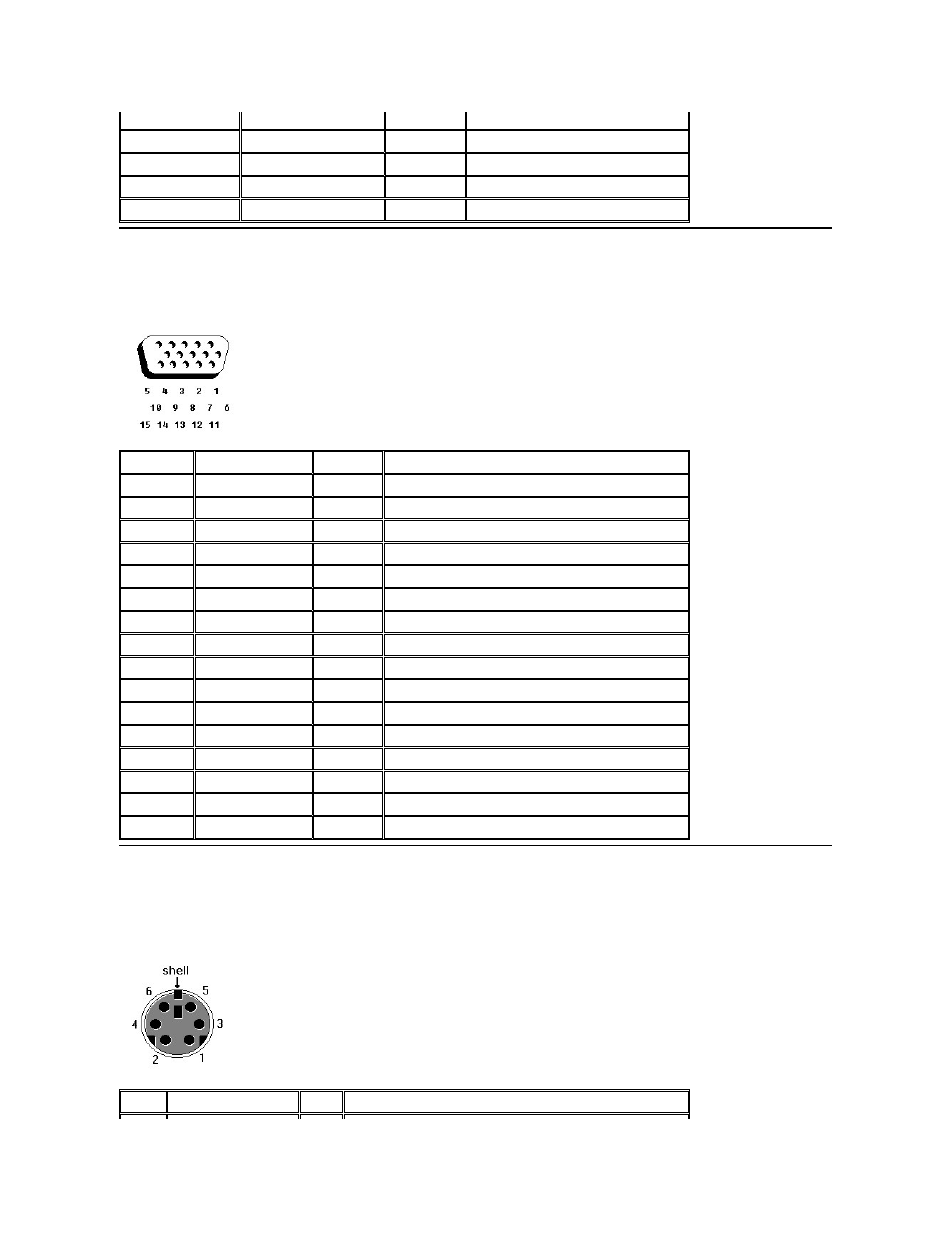

Monitor Connector
Use the 15-pin monitor connector to attach an external monitor to the replicator. If the image does not appear on the monitor immediately, press
Pin Assignments for the Monitor Connector
PS/2 Connector
Use the 6-hole, miniature DIN PS/2 connector to attach PS/2-compatible devices such as a mouse, keyboard, or external numeric keypad. If you reconfigure your
hardware, you may need pin number and signal information for the PS/2 connector.
Pin Assignments for the PS/2 Connector
15
ERR#
I
Error
16
INIT#
O
Initialize printer
17
SLIN#
O
Select in
18–25
N/A
N/A
Signal ground
Shell
N/A
N/A
Frame ground
Pin
Signal
I/O
Definition
1
RED
O
Red video
2
GREEN
O
Green video
3
BLUE
O
Blue video
4
NC
N/A
No connection
5
GND
N/A
Signal ground
6
GND
N/A
Signal ground
7
GND
N/A
Signal ground
8
GND
N/A
Signal ground
9
NC
N/A
No connection
10
GND
N/A
Signal ground
11
NC
N/A
No connection
12
NC
N/A
Reserved
13
HSYNC
O
Horizontal synchronization
14
VSYNC
O
Vertical synchronization
15
NC
N/A
No connection
Shell
N/A
N/A
Frame ground
Pin
Signal
I/O
Definition
