Display Assembly and Display Assembly Component Removal: Dell™ Inspiron™ 7000
Display Assembly Removal | Display Assembly Component Removal

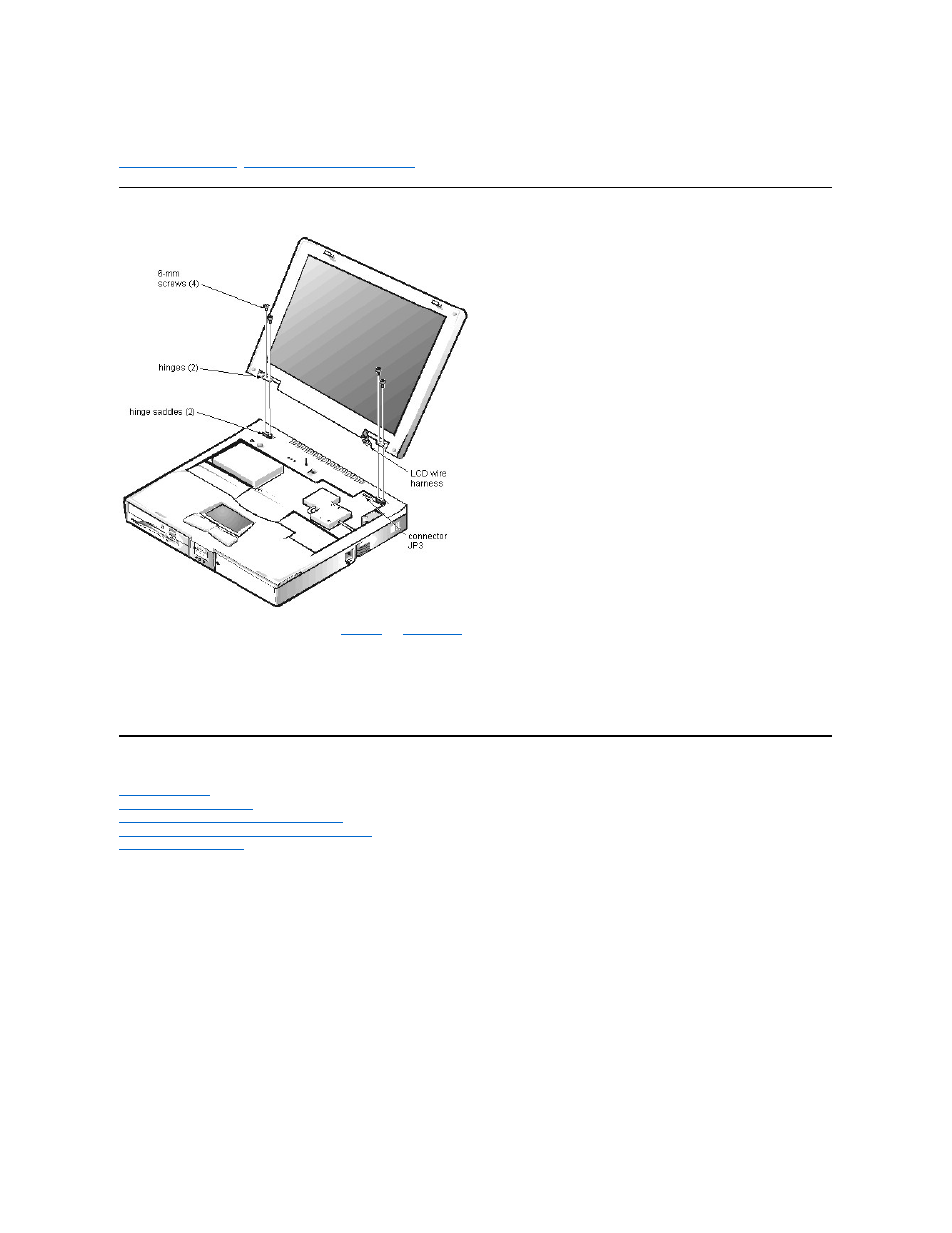

Display Assembly Removal
This procedure assumes that you have removed the keyboard and thermal shield . To remove the display assembly from the computer, follow these steps:
1. Disconnect the LCD wire harness from connector JP3.
Use a dental pick or flat-blade screwdriver to pry up each end of the connector to release it.
2. Close the display.
3. Remove the (4) 6-mm screws that secure the 2 hinges.
4. Unlatch the display assembly and lift the assembly off the computer base.
Display Assembly Component Removal
Front Bezel Removal
13.3-Inch LCD Panel Removal
13.3-Inch LCD Brackets and Carrier Tray Removal
14.1-Inch LCD Panel, Brackets and Carrier Tray Removal
15-Inch LCD Panel Removal
