Removal and Replacement Procedures 2-37
Compaq Integrated Smart Array Controller Upgrade
Module
NOTE: The Compaq Integrated Smart Array Controller upgrade module is an upgrade option in the
ProLiant ML370.
To remove the Compaq Integrated Smart Array Controller upgrade module:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the small access panel. See “Small Access Panel” earlier in this chapter.
4. Remove any I/O expansion boards. See “I/O Expansion Board” earlier in this chapter.
5. Push in the clips securing the Compaq Integrated Smart Array Controller module to the
system board
.
6. Pull the module away from the system board
.
1
2
1

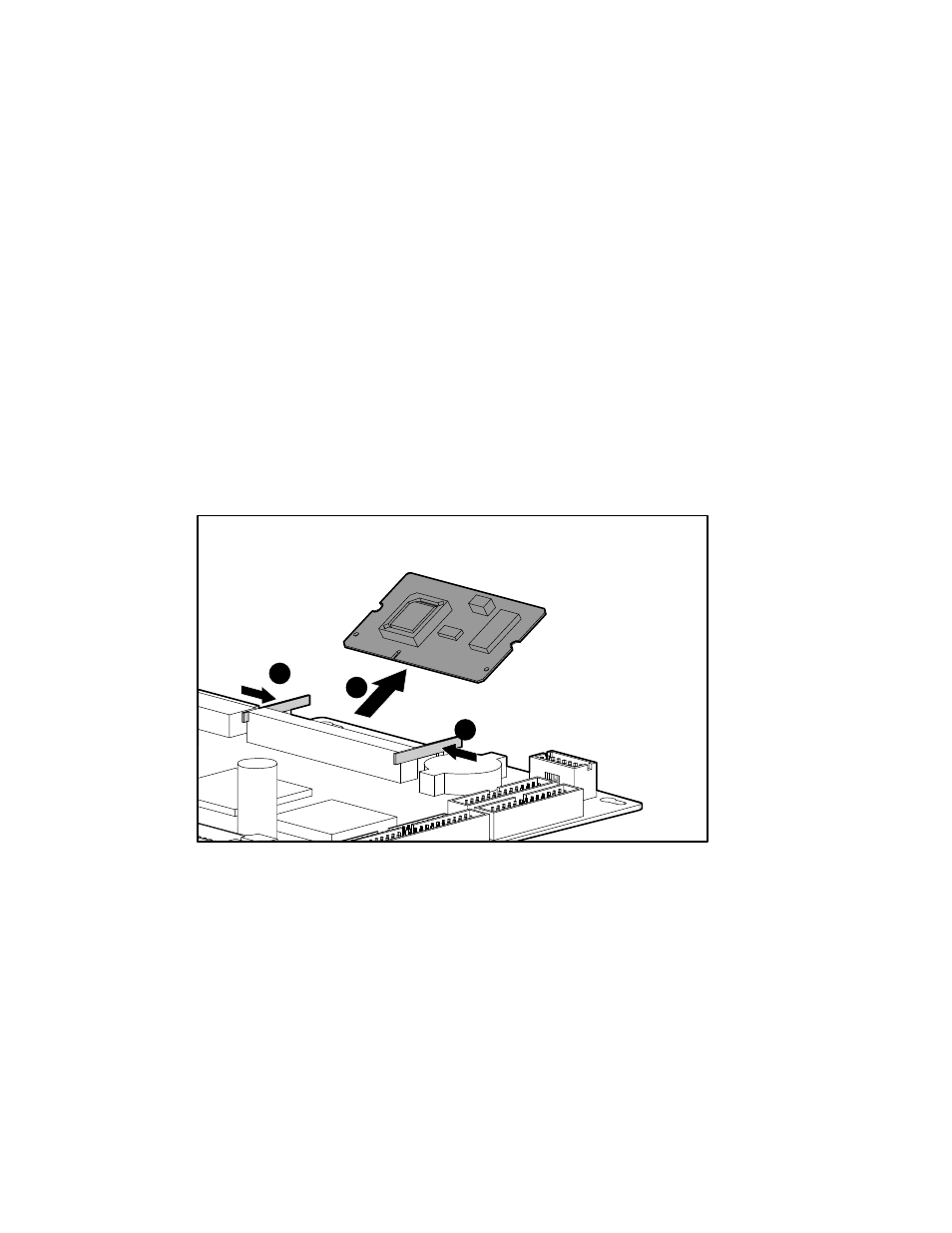

Figure 2-33. Removing the Compaq Integrated Smart Array Controller upgrade module
Reverse steps 1 through 6 to replace the Compaq Integrated Smart Array Controller upgrade
module.
