2-16 Compaq ProLiant ML370 Maintenance and Service Guide

IDE CD-ROM Drive

To remove the CD-ROM drive:

1. Perform the preparation procedures. See “Powering Down the Server” earlier in this

chapter.

2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.

3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.

4. Disconnect all cables from the CD-ROM drive.

5. Remove the two T-15 screws and washers securing the CD-ROM drive to the chassis

.

6. Slide the CD-ROM drive out the front of the chassis

.

1

1

2

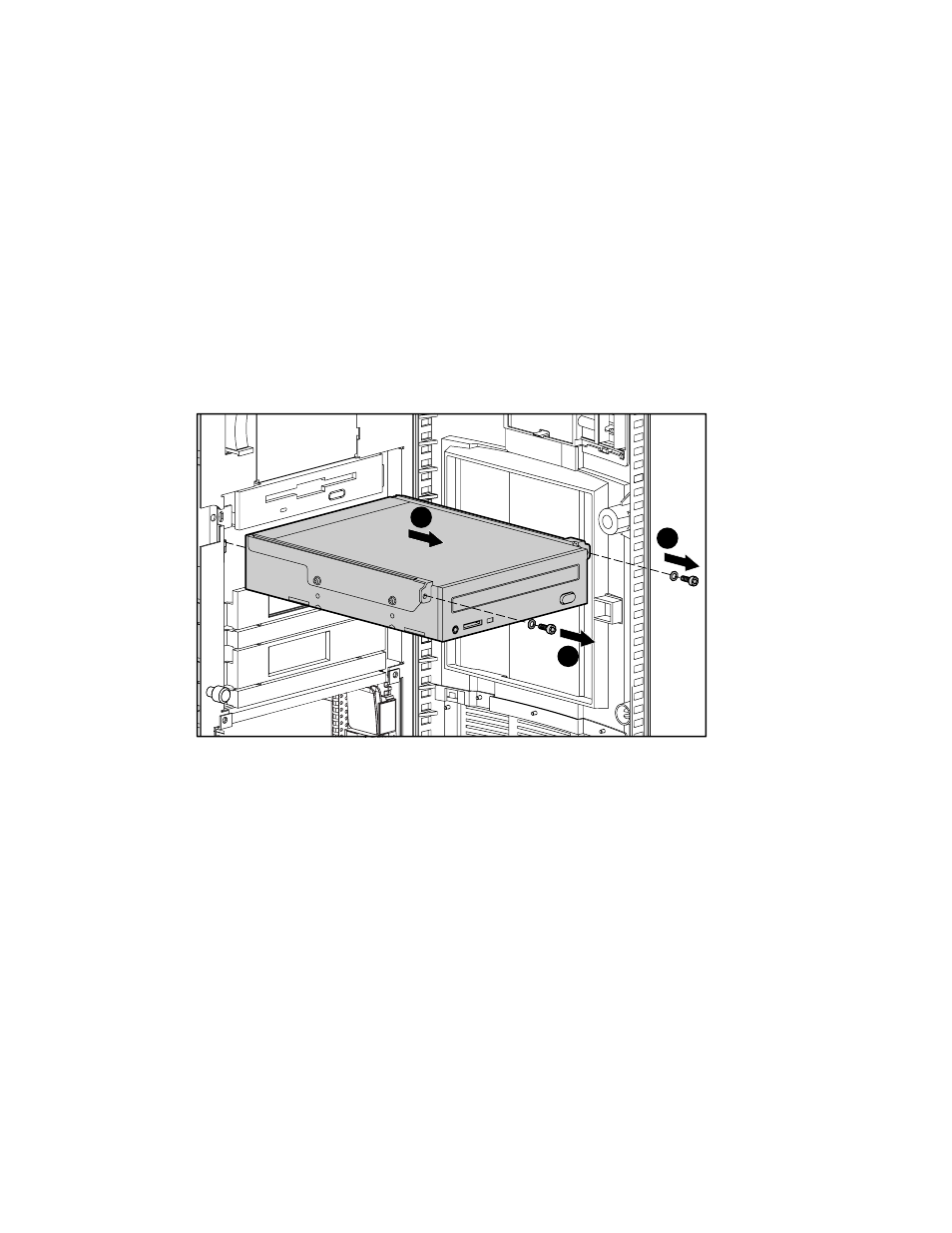

Figure 2-12. Removing the CD-ROM drive

Reverse steps 1 through 6 to replace the CD-ROM drive.
