Page 129
Connectors, Switches, and LED Indicators 4-7
RJ-45 Connector
Figure 4-5 and Table 4-6 show the location and a description of the RJ-45 connector LED
indicators.
1
2

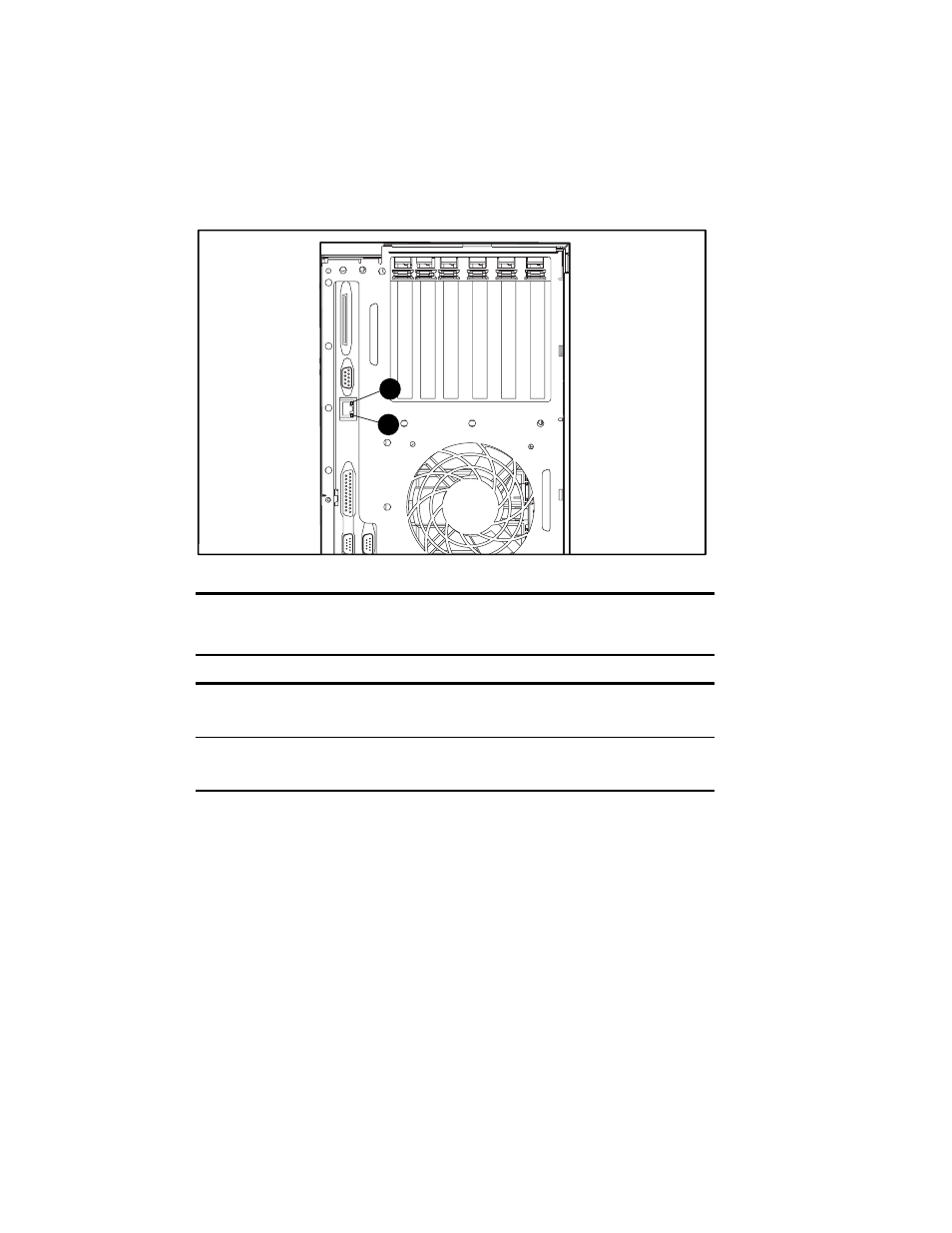

Figure 4-5. RJ-45 connector with LED indicators
Table 4-6
RJ-45 Connector LED Indicators
Item
Description
Condition
Status
NIC activity
Green
Embedded NIC network activity
Off
No network activity
NIC link status
Green
Embedded NIC is connected to network
Off
Embedded NIC not connected to network
