Compaq PROLIANT ML370 - Manual (Page 51)

Removal and Replacement Procedures 2-35
Hot-Plug SCSI Drive Backplane
To remove the hot-plug SCSI drive backplane:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
4. Remove all hard drive blanks and hot-plug hard drives. See “Hard Drive Blank” and
“Hot-Plug SCSI Hard Drive” earlier in this chapter.
5. Remove the hot-plug drive cage. See “Hot-Plug Drive Cage” earlier in this chapter.
6. Remove the three Torx T-15 screws securing the hot-plug SCSI drive backplane to the
hot-plug SCSI drive cage
.
7. Slide the hot-plug SCSI drive backplane down slightly. Then pull it from the mounting
posts
.
1
2
1
1

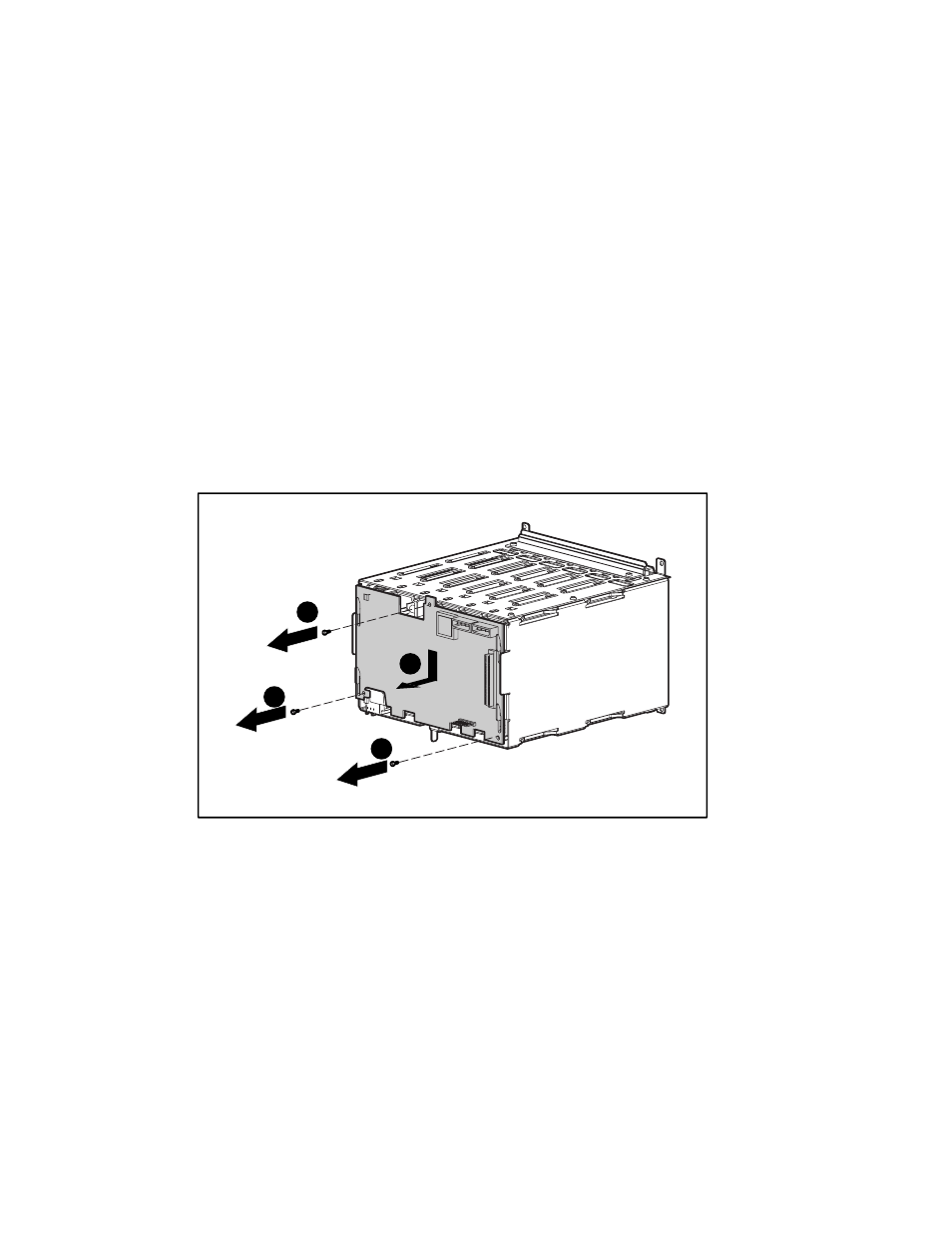

Figure 2-31. Removing the hot-plug SCSI drive backplane
Reverse steps 1 through 7 to replace the hot-plug SCSI drive backplane.
