Right side panel, Right side panel -11 – Compaq PROLIANT ML370 User Manual
Page 27
Removal and Replacement Procedures 2-11
Right Side Panel
NOTE: This panel does not exist on the rack-mountable model. This procedure applies to the tower
model only.
To remove the right side panel from the chassis:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the feet on the base of the right side panel. See “Feet” earlier in this chapter.
4. Remove the two Torx T-15 screws securing the right side panel to the front of the
chassis
.
5. Pull the right side panel back, then away from the chassis
.
1
2
1

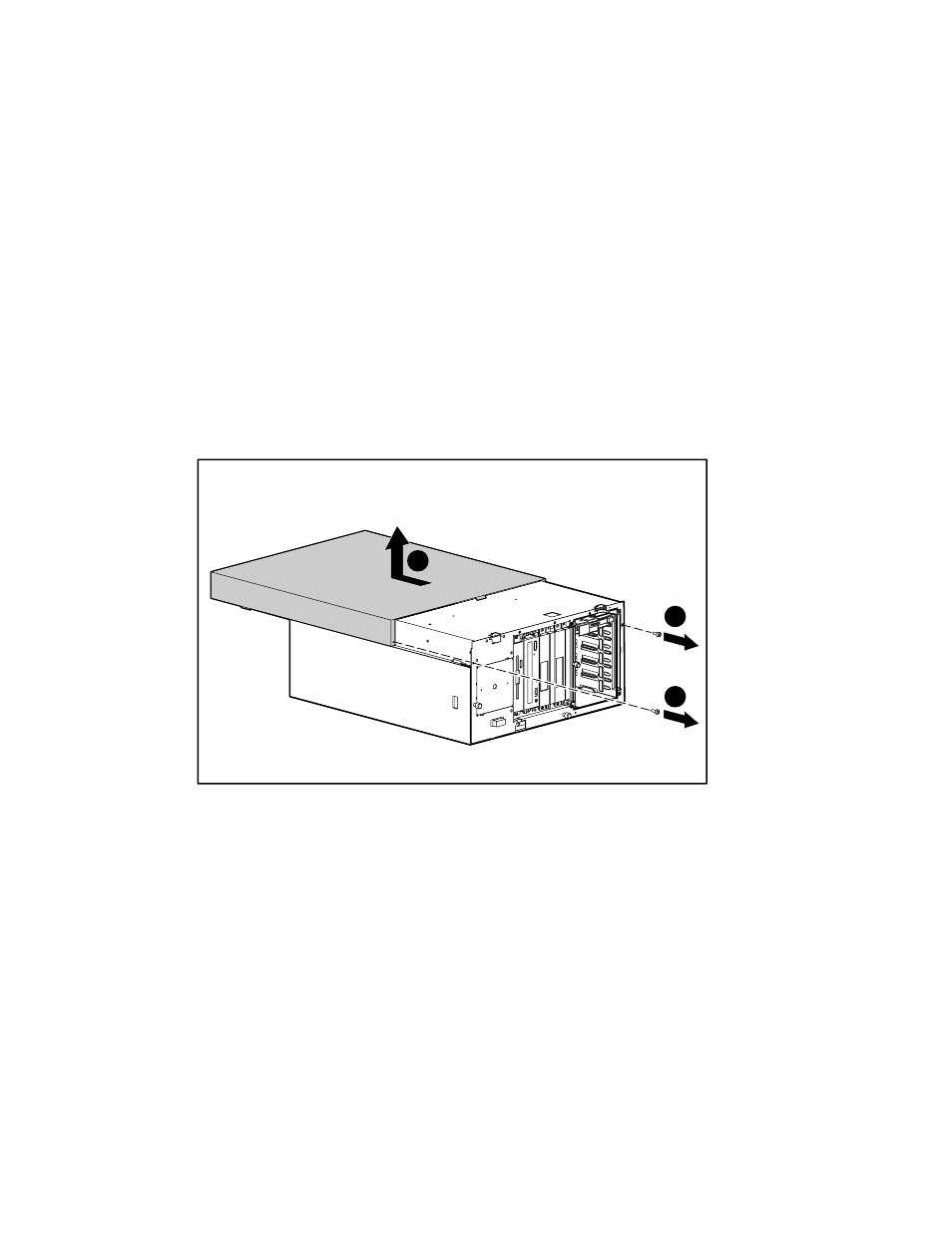

Figure 2-6. Removing the right side panel
Reverse steps 1 through 5 to replace the right side panel.
