2-28 Compaq ProLiant ML370 Maintenance and Service Guide
Riser Board and Brace
To remove the riser board and brace:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove any I/O expansion boards (if installed) from the riser board. See “I/O Expansion
Board” earlier in this chapter.
4. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
5. Remove the two Torx T-15 screws securing the riser board and brace to the chassis
.
6. Slide the riser board and brace out of the server
.
2
1
1

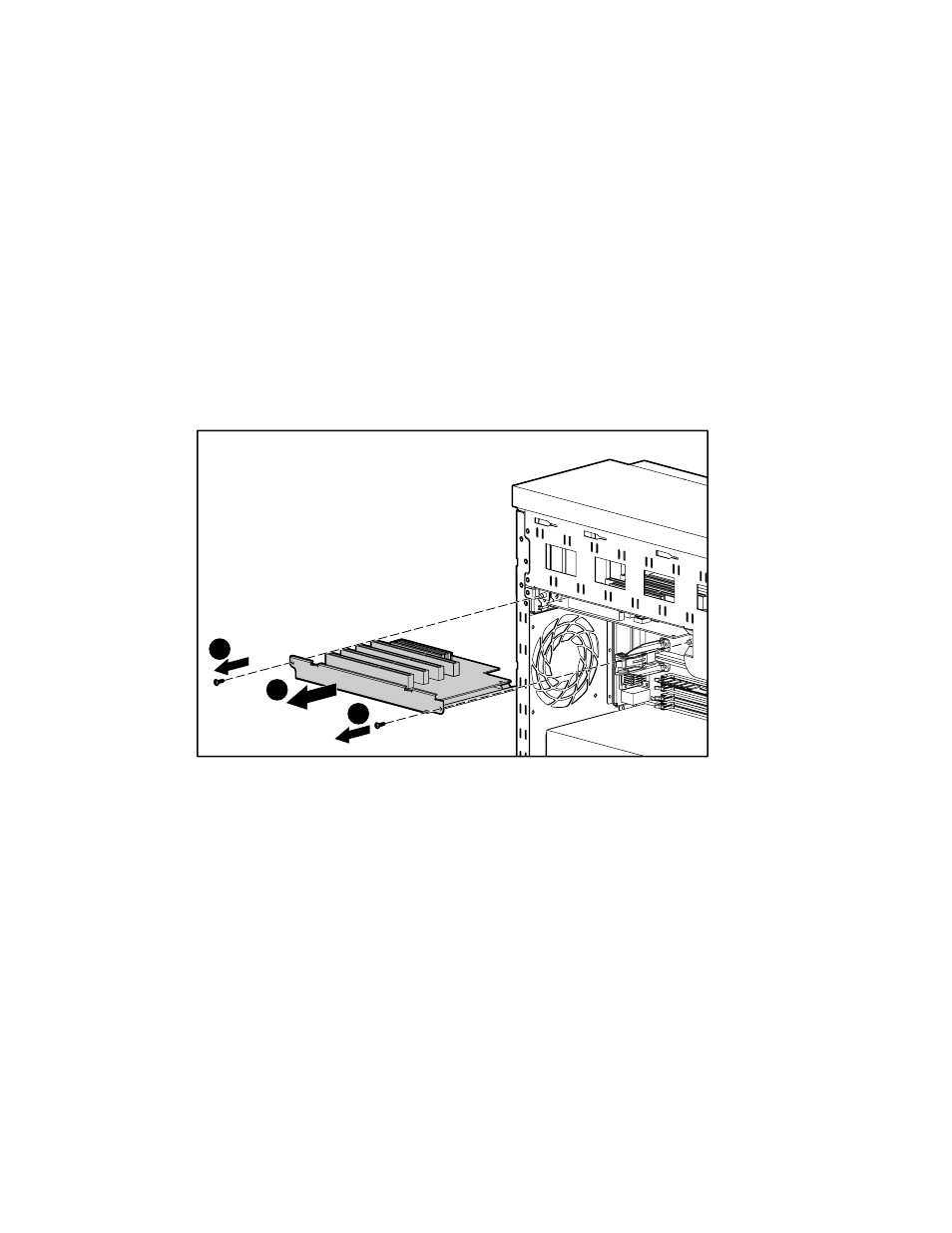

Figure 2-24. Removing the riser board and brace
Reverse steps 1 through 6 to replace the riser board and brace. Make sure that the board is
seated securely before the screws are tightened.
