Operators Instruction

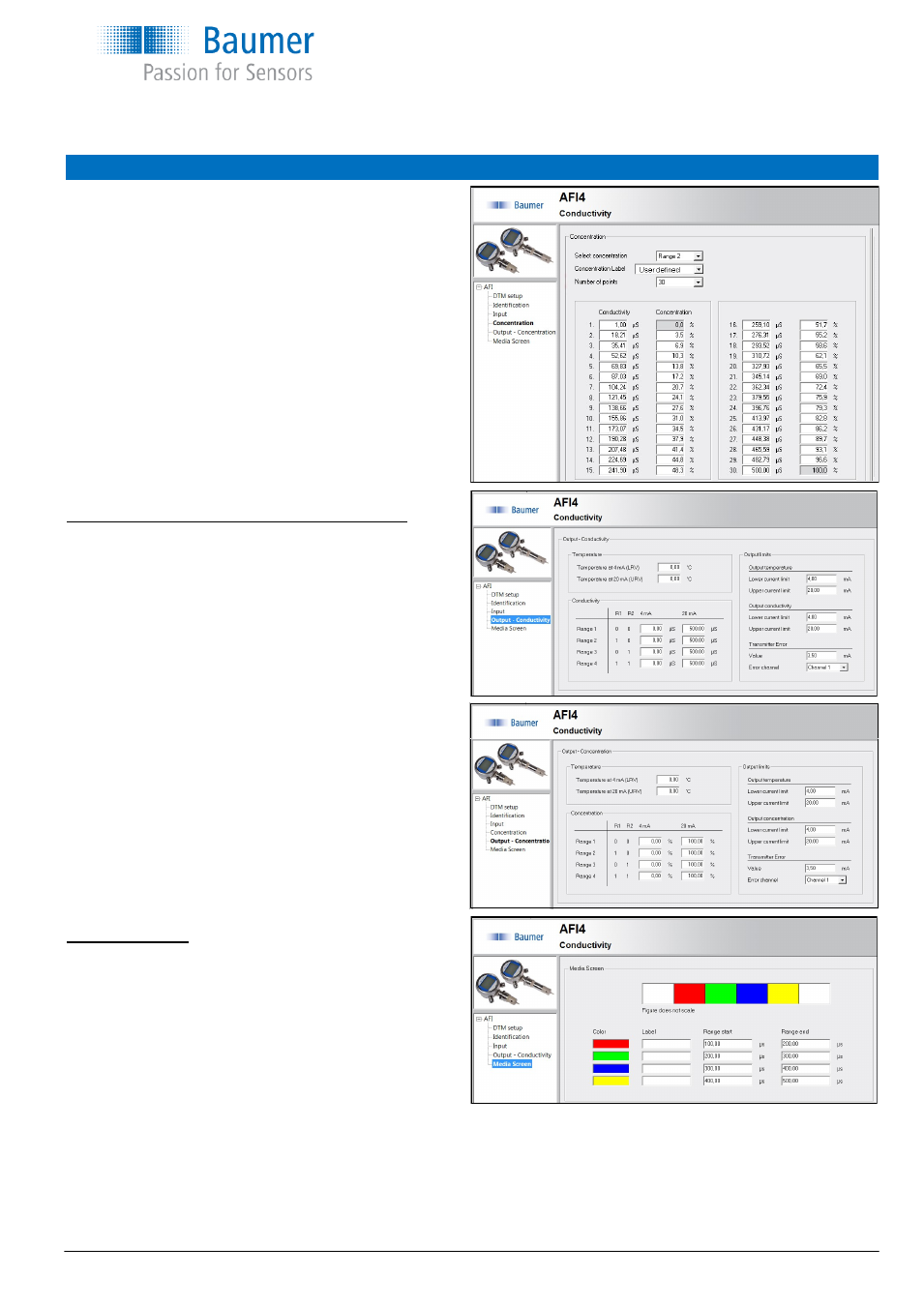

Programming the AFI4 with the FlexProgram
If user defined concentration is selected you may enter the number of
point (2...30 points) in which the media is to be calibrated.
Fill in conductivity in µS/cm and % for each point.
See example to the right.
Screen Output (when conductivity is selected in DTM setup)
Setting the temperature output range (4...20 mA)
Setting the conductivity µS/cm or mS/cm output 4 ranges (4...20 mA)
The ranges set under Input will appear, however can be overwritten if
wanted.
The transmitter error signal can be directed to either temperature out-
put or conductivity output or both outputs.
Screen Output (when concentration is selected in DTM setup)
Setting the temperature output range (4...20 mA)
Setting the concentration % output 4 ranges (4...20 mA)
The ranges set under Input will appear, however can be overwritten if
wanted.
The transmitter error signal can be directed to either temperature out-
put or conductivity output or both outputs.
Screen Media screen
A product label can be entered in field “Label” e.g. Milk
and the values for the media entered in µS/cm in the two following
fields. Then the “Label” will appear on the display between the two
values (see media screens page 3)
(The colours is only informative, they will not appear on the display)
Example:
Water 600 µS/cm 700 µS/cm
Milk 4500 µS/cm 5500 µS/cm
CIP acid 9000 µS/cm 11000 µS/cm
CIP caustic 55000 µS/cm 65000 µS/cm
