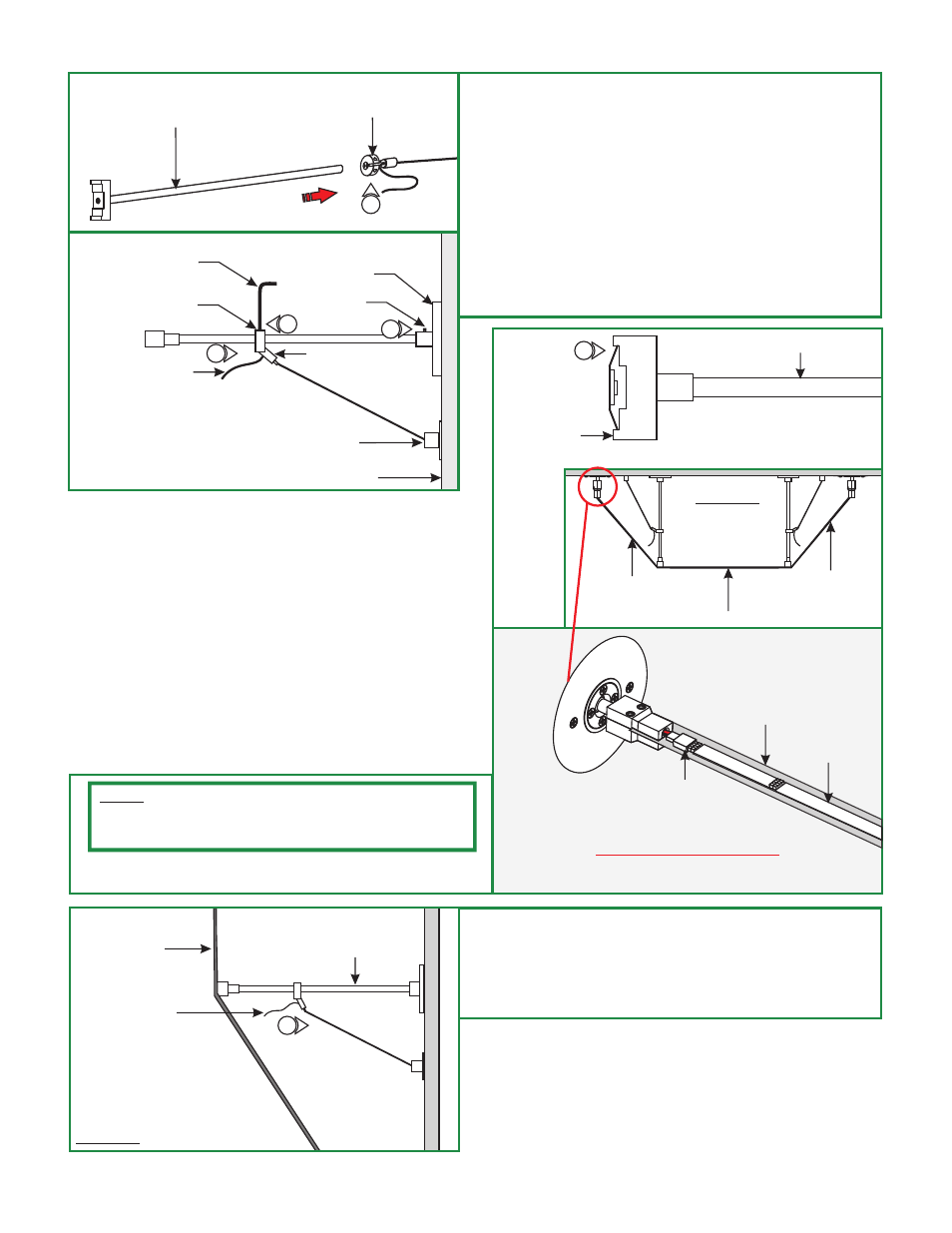

12: Slide the adjustable standoff ring onto the standoff rod.
Make sure it passes mid point of the standoff rod.

13: Rotate the ring so that the standoff post is facing towards
the cable post. Tighten the M4 set screw on the ring with
2MM Allen wrench to lock it in place.

14: Pull the aircraft cable taut so that the standoff rod is
straight. To unlock the aircraft cable push the tab.

15: Repeat steps 7 through 14 for all other soft line standoffs.

16: Install the soft line turnbuckles and additional standoffs as
required.

ADJUSTABLE
STANDOFF RING

STANDOFF ROD

OUTRIGGER ROD
HOUSING

M4 SET
SCREW

2MM ALLEN
WRENCH

AIRCRAFT CABLE

WALL

17
guider bracket.

: Make sure the soft strip sits properly in the Soft Line

OUTRIGGER

NOTE:

To avoid standoff shadows on the wall, install the soft

strip only on the straight sections of the soft line. Run the power
cables near the straight sections or use the flat power joining
strips

included with the power cable.

(SS-CPT-XX)

GUIDER
BRACKET

STANDOFF POST

CABLE POST

TOP VIEW

STRAIGHT SECTION

3" FLAT POWER
JOINING STRIP

POWER FEED
CONNECTOR

6" FLAT POWER
JOINING STRIP

FLAT POWER
JOINING STRIP

FLAT POWER JOINING STRIP

Is included in a 3", 6", & 12" length and

can be connected to one in another.

18: Pull the aircraft cable on all the soft line standoffs taut so
that the standoff rods are all straight before tightening the
turnbuckles adjustments links (refer to the turnbuckle
instructions).

19: Trim off excess aircraft cable.

SOFT LINE

SOFT LINE
STANDOFF

AIRCRAFT
CABLE

TOP VIEW
