4
STAIRS
LIGHT BEAM
WALL
K MINI PORT EYELID TRIM
MUST BE ORIENTED IN THIS
MANNER TO WORK PROPERLY
NOTE: If installing eyelid Miniport to the walls next to stairs
place the trim in the downward position for proper lighting.

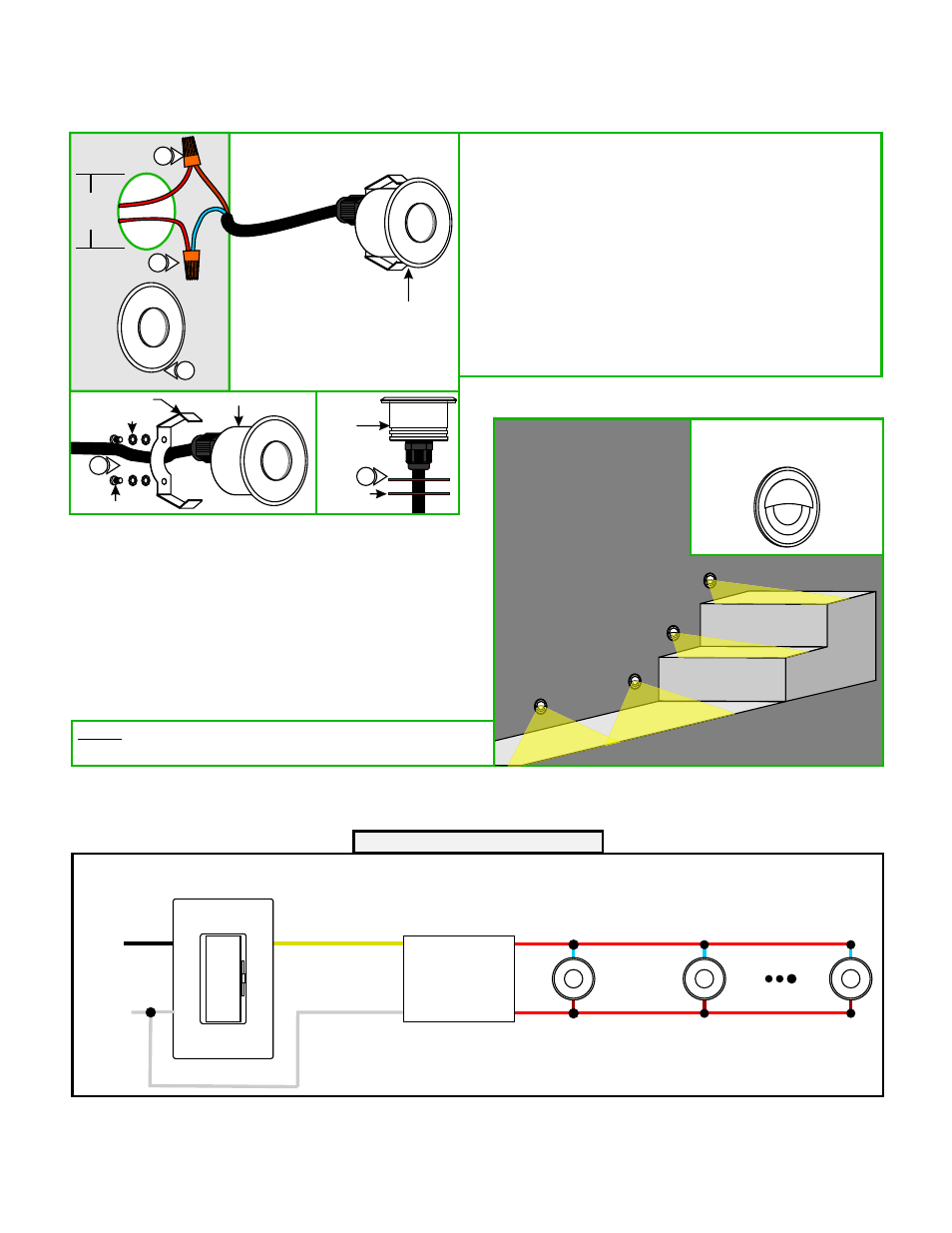

Overall Wiring Diagram
MINIPORT 12VAC
NEUTRAL
(WHITE)
HOT
(BLACK)
120 VAC
YELLOW
WHITE
ELECTRONIC LED
12VAC TRANSFORMER
(TE-60L-12)
ELECTRONIC LOW
VOLTAGE DIMMER
120 VAC
Indoor Installation without
the Trim Housing
J 1: Remove the two "O" rings from the Miniport.
2: Install the provided spring clip on back of the Miniport with
the washers and screws.
3: Make a 1-3/4" circular hole where each Miniport is going to
be installed. (DRYWALL or the riser of the wood steps)
4: Connect the black driver wire to one low voltage wire and
the white driver wire to the other low voltage wire coming
from the transformer with wire nuts.
5: Push the Miniport spring completely inside the cut out hole
so that the Miniport is secured in place.
"O" RING
1
2
SPRING CLIP TRIM
SCREW
WASHER
4
4
5
1-3/4"
HOLE
TRIM
TRIM
