Edge Lighting Cirrus Channel, Tubular 1" Lens User Manual
Page 3

3
H

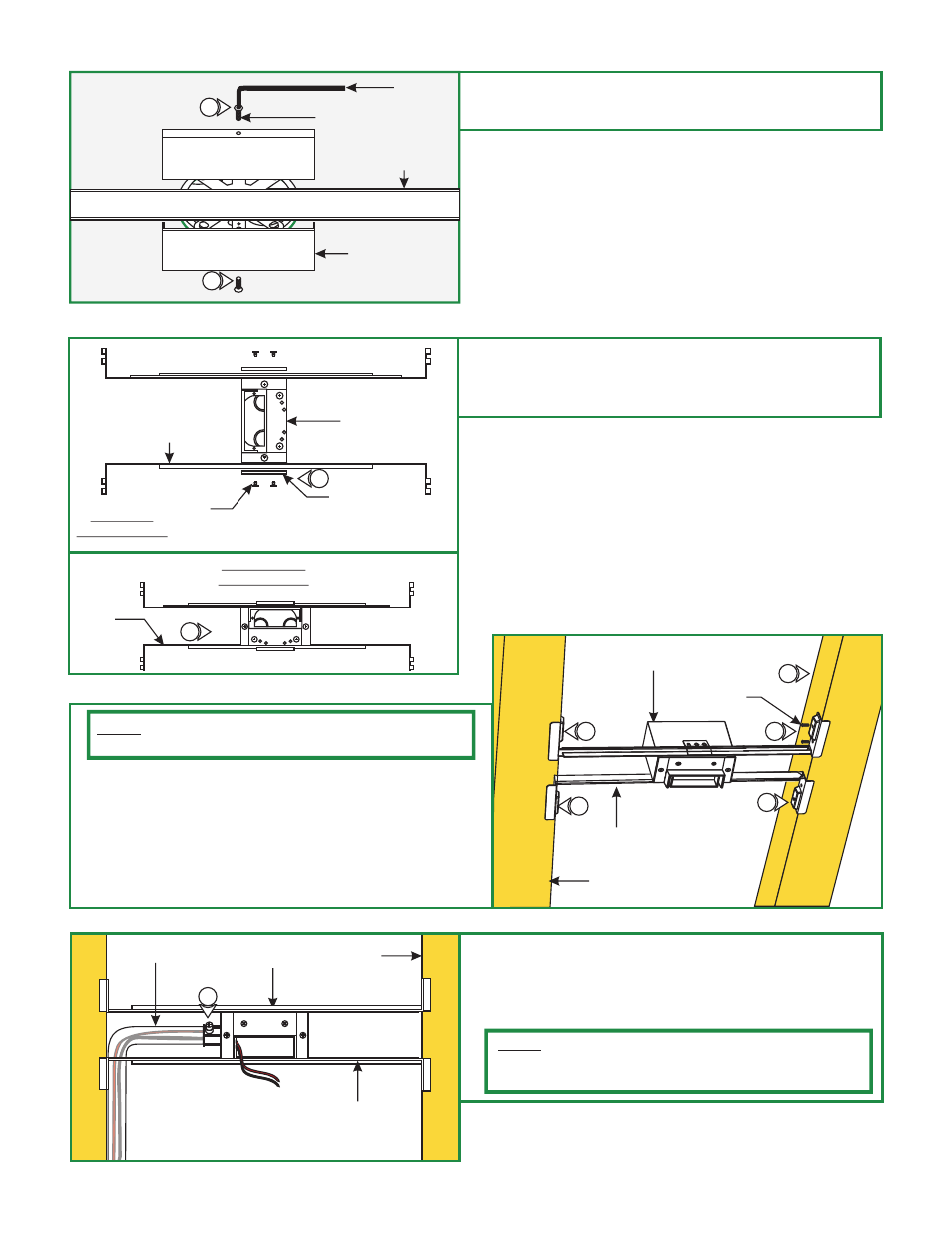

12: Place each canopy piece against the channel & line up the
canopy hole with the crossbar hole. Secure the canopy in
place with the screw & Allen wrench provided.
CHANNEL
SCREW
CANOPY
12
12
Install the Channel using the Junction Box (C-1RE-JBOX)
2:
box to be mounted.
3: Place the adjustable mounting bars between the studs.
4: Make sure the lips on the adjustable mounting bars are
against the studs. Secure the adjustable bars to the
studs with the eight #8 screws.
Select the location between the two studs for the Junction
NOTE:
The adjustable mounting bars mount to studs that are
spaced 16" to 24" apart.
ALLEN
WRENCH
5: Remove a knockout to install the power line conduit.
6: Install the conduit and run the low voltage 24V DC power
wires coming from the remote power supply to the
Junction box.
NOTE:
Remote power supply must be installed within 40ft of
Junction box. The low voltage 24V DC wires must be present in
Junction box. See wiring diagram on page 5 for more information.
STUD
ADJUSTABLE
MOUNTING BAR
#8 SCREW
J
2
4
4
4
4
JUNCTION BOX
K
STUD
ADJUSTABLE
MOUNTING BAR
CONDUIT
JUNCTION BOX
5
I
2
3
1
2
3
1
JUNCTION
BOX
MOUNTING
BRACKET
1: Mount each adjustable mounting bar to one side of the
junction box (mounts to any side of the housing depending
on the orientation of the channel) and secure them with the
mounting brackets and two Phillips screws provided.
ADJUSTABLE
MOUNTING BAR
PHILLIPS
SCREW
1
VERTICAL
ORIENTATION
HORIZONTAL
ORIENTATION
1
JUNCTION
BOX
2
3
1
2
3
1
