11: Remove the backplate from the wall and tap the anchors
on the marked points up to the threaded portion with a
hammer. Screw in the threaded portion of the anchors with
a Phillips screwdriver.
12: Repeat steps 7 and 8 (refer to Figure F on Page 2).
13 Secure the ends of the backplate to the anchors with the
two #8 screws.
WALL
ANCHOR
H
11
11
K

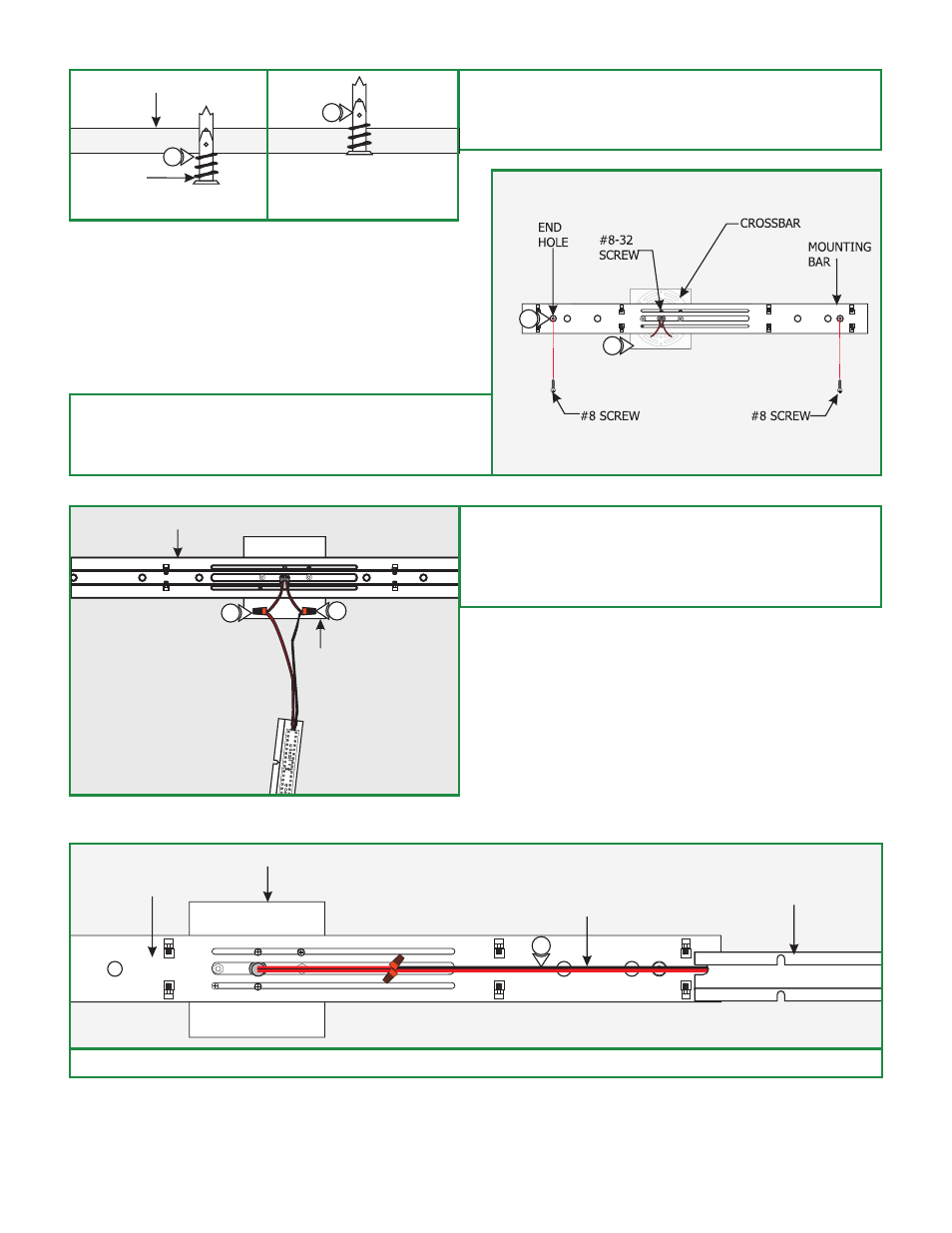

16: Lay the LED module wires and connections between the LED module plate and mounting rail.
16
MOUNTING RAIL
LED POWER WIRES
CANOPY
LED MODULE PLATE
13
12
I
J
BACK PLATE
CANOPY
14 15
14: Connect the red LED Module wire to one of the transformer
wires (either one) with a wire nut.
15: Connect the black LED module wire to the other
transformer wire with a wire nut.
