Edge Lighting Greta LED - Manual (Page 2)

2

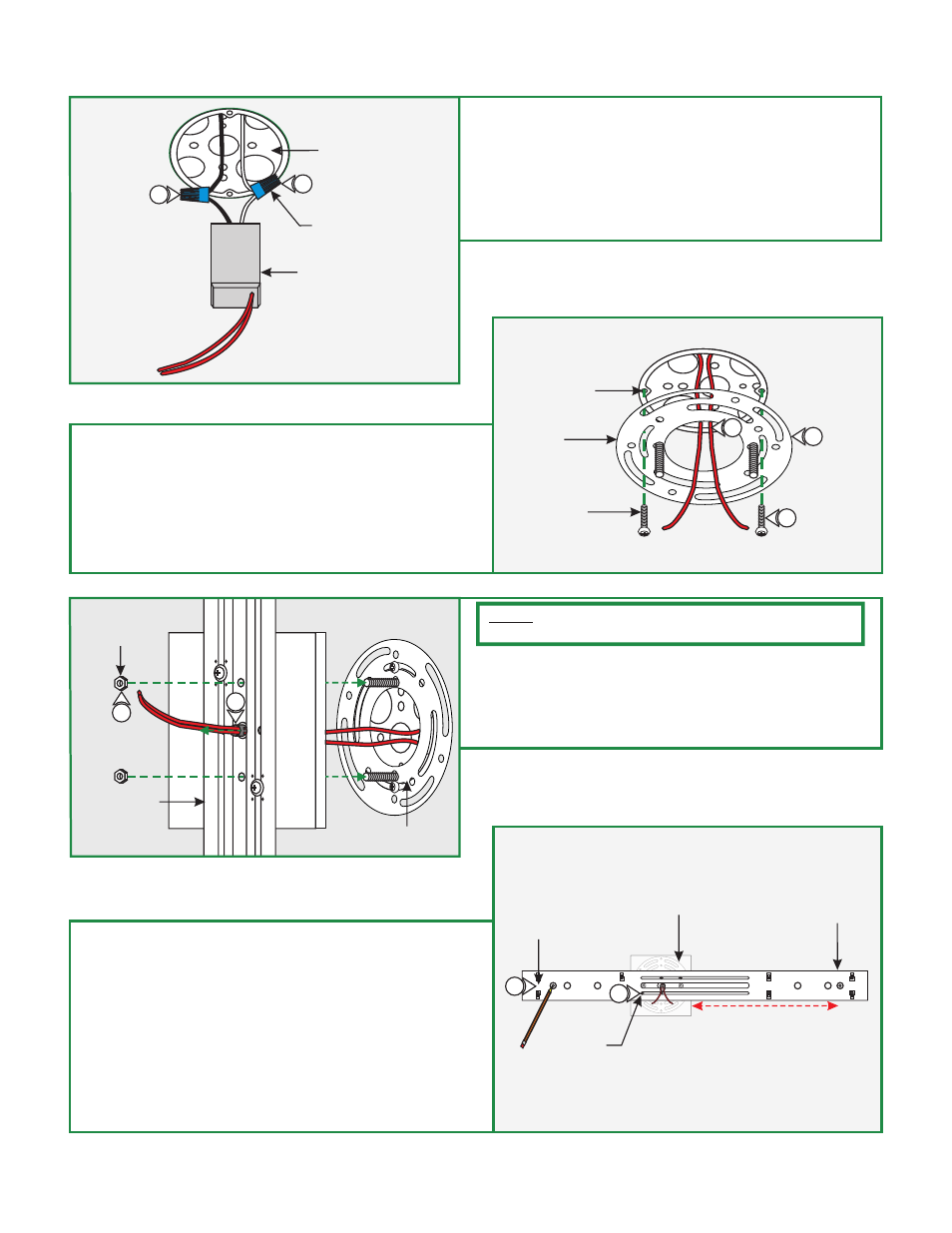

Install the Fixture
4:
cutout.
5: Place the mounting plate to the junction box and level
mounting studs.
6: Secure the mounting plate to the junction box using two
#8-32 screws.
Feed the LED power wires through the mounting plate center
LED TRANSFORMER
WIRE NUT
JUNCTION BOX
1: Connect the white LED transformer wire to the neutral
power wire with a wire nut.
2: Connect the black LED transformer wire to the hot power
wire with a wire nut.
3: Place the LED transformer and all wire connections inside
the junction box.
D
7:
relief center hole of the backplate and canopy.
8: Place the back plate and canopy on to the mounting posts
and tighten both nuts securely.
Feed the LED transformer power wires through the strain
2
1
NOTE: It is recommended more than one person assist with
installing this fixture.
MOUNTING
PLATE
E
JUNCTION
BOX HOLE
#8-32 SCREW
NUT
MOUNTING
POST
BACK PLATE
F
8
4
5
6
7
9: Align the backplate screw holes to the electrical box
mounting holes, and place the backplate on wall to mark
the anchor location.
10a: If mounting fixture centered: mark the end holes on
the wall. These marked holes are for anchors.
10b: If mounting fixture off centered: slightly loosen the
two backplate screws and slide the backplate to the
desired position and tighten the backplate screws. Mark
the end holes of the backplate on the wall. These marked
holes are for anchors.
ADJUSTMENT
BACKPLATE
SCREW
BACKPLATE END
HOLE
MOUNTING
PLATE
10a
10b
G
