LAMP
SOCKET
3

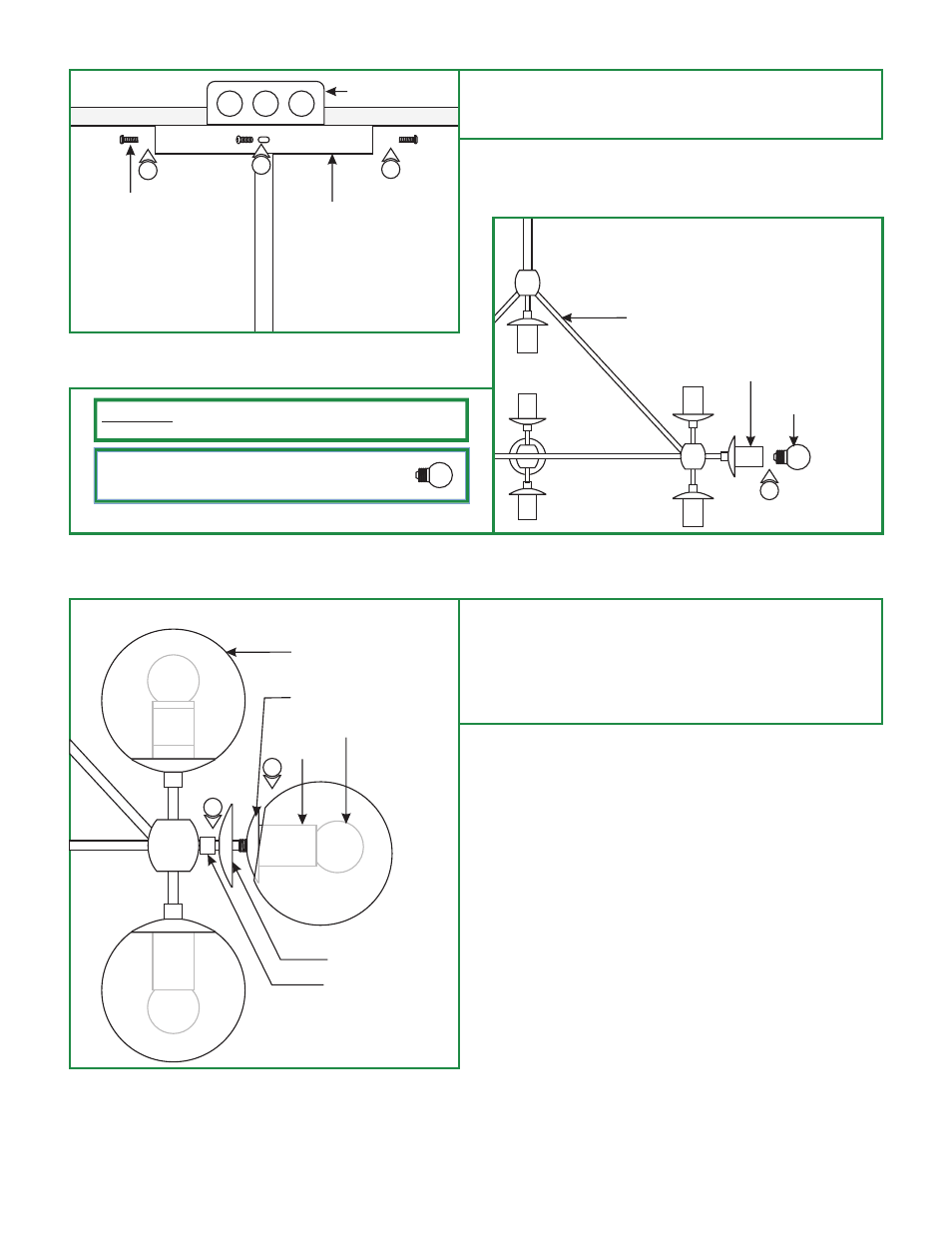

12: Place all wires and wire nut connections inside the canopy.
Align and slide the canopy holes onto the crossbar, and
secure it in place by replacing and tightening the Phillips
screw.
CANOPY
I
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
Use MAX 25 Watt Type G16.5 globe, E26 Base Lamp
in each socket.
H
PHILLIP
SCREWS
JUNCTION BOX
12
12
12
FIXTURE
13
13: Screw each lamp completely into each socket.
14: Loosen the square nut and the dome cap.
15: Carefully twist the globe glass opening over the socket cap.
Slide the dome cap back onto the globe glass and tighten
the square nut to secure the glass in place.
16: Repeat steps 13 through 15 for the remaining globe glass.
J
GLOBE GLASS
SOCKET
LAMP
DOME CAP
SQUARE NUT
14
15
SOCKET CAP
