Edge Lighting Bola - Manual (Page 2)

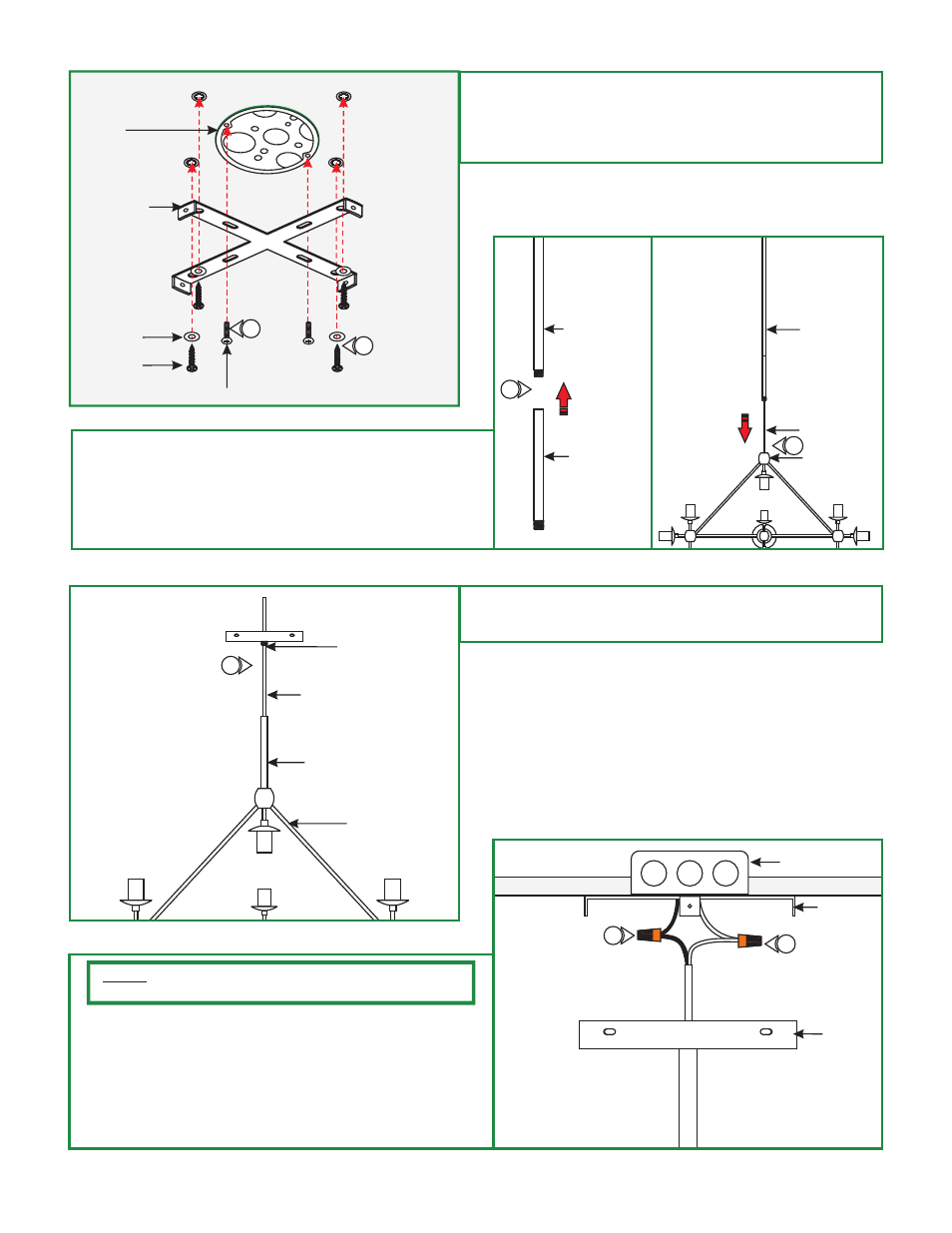

NOTE: It is recommended a second person to hold the fixture
while the electrician connects the power to the fixture.
2
E
6: Feed the fixture wires through the short stem & tighten
to the fixture hub completely.
7: (OPTIONAL) To extend the fixture height, feed the fixture
wires through the additional stem(s) & tighten the additional
stem(s) completely to the 8" stem.
6
ADDITIONAL
STEM(S)
SHORT STEM
7
STEM
FIXTURE
HUB
CORD
D
4: Line up the crossbar to the anchors and secure it by
tightening the four #8 screws & washers.
5: Secure the crossbar to the junction box using the two #8-32
screws.
4
JUNCTION
BOX
CROSSBAR
#8 SCREW
WASHER
F 8: Feed the fixture cord into the canopy and secure the canopy
to the stem by tightening the canopy nipple completely into
the stem.
FIXTURE
CORD
STEM
CANOPY NIPPLE
8
G
9:
10: Connect the fixture white wire to the neutral power wire
with a wire nut.
11: Connect the fixture black wire to the hot power wire with
a wire nut.
Make sure that the canopy is grounded in accordance
with local electrical codes.
11
10
CROSSBAR
CANOPY
JUNCTION BOX
5
#8-32 SCREW
