Edge Lighting Bola User Manual
Bola suspension, Install the fixture, Installation instructions for

Installation Instructions for
Bola Suspension
904-BOLA-S-01
SAVE THESE INSTRUCTIONS!
- This product is ceiling mounted only.
- This product mounts to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
IMPORTANT INFORMATION
Install the Fixture
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
A
1
B

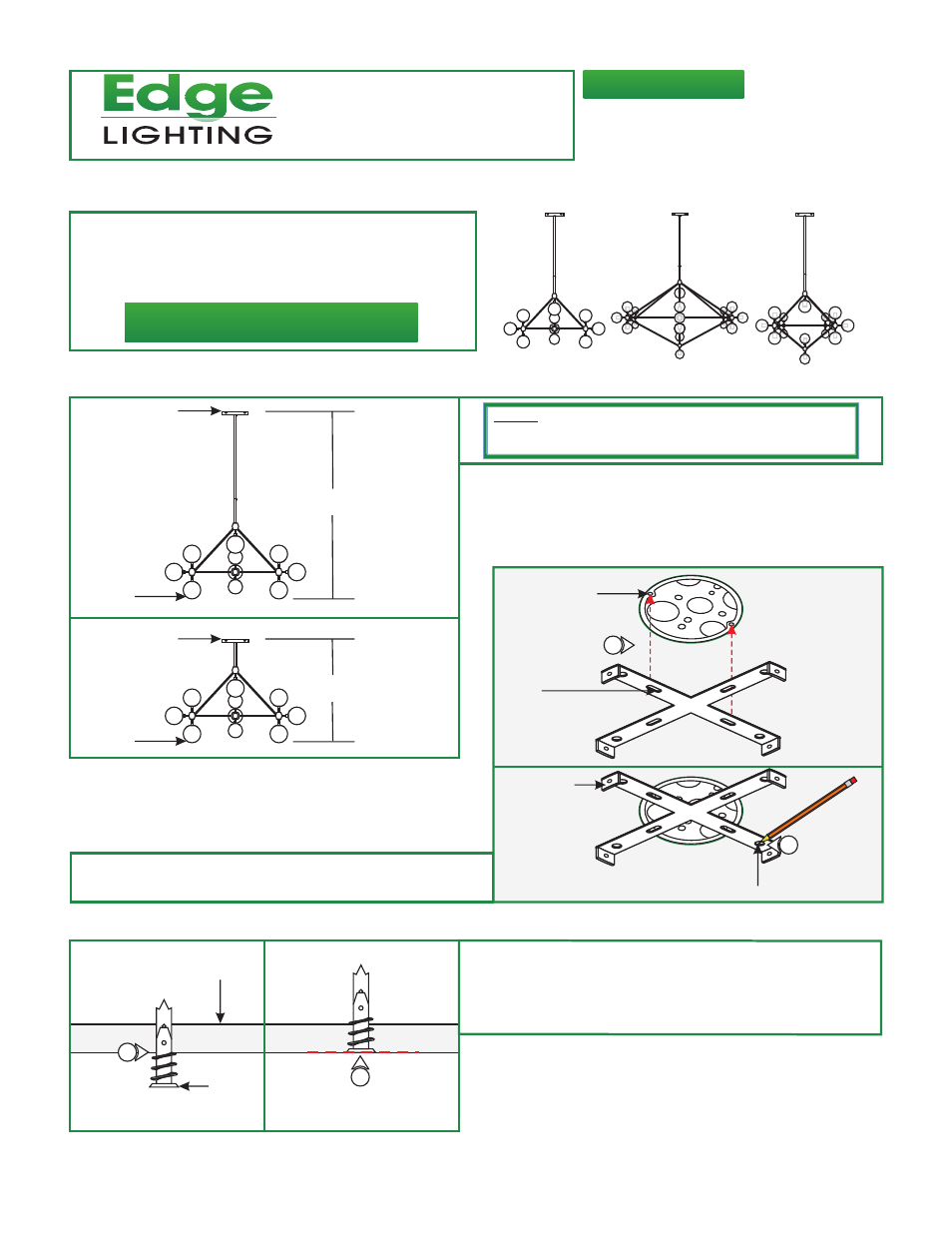

1: Align the crossbar slots to the junction box holes, and then
mark the four holes on the crossbar to the ceiling.
BOLA-S-__-__-SM-BK
© 2013 Edge Lighting. All Rights Reserved.
MAXIMUM 91"
MINIMUM 30"
CANOPY
GLASS
GLOBE
CANOPY
GLASS
GLOBE
NOTE:
8" stem only or using additional combination of 20" and 12"
stems for a maximum overall height of 91".
Determine the desired overall fixture height using the
JUNCTION
BOX HOLE
CROSSBAR
SLOT
1
ANCHOR
ANCHOR MUST
BE FLUSH TO WALL
C
2: Tap the anchors onto the marked points up to the threaded
portion with a hammer.
3: Screw in the threaded portion of the anchors with a Phillips
screwdriver.
SURFACE
2
3
1
CROSSBAR
MARK
