G

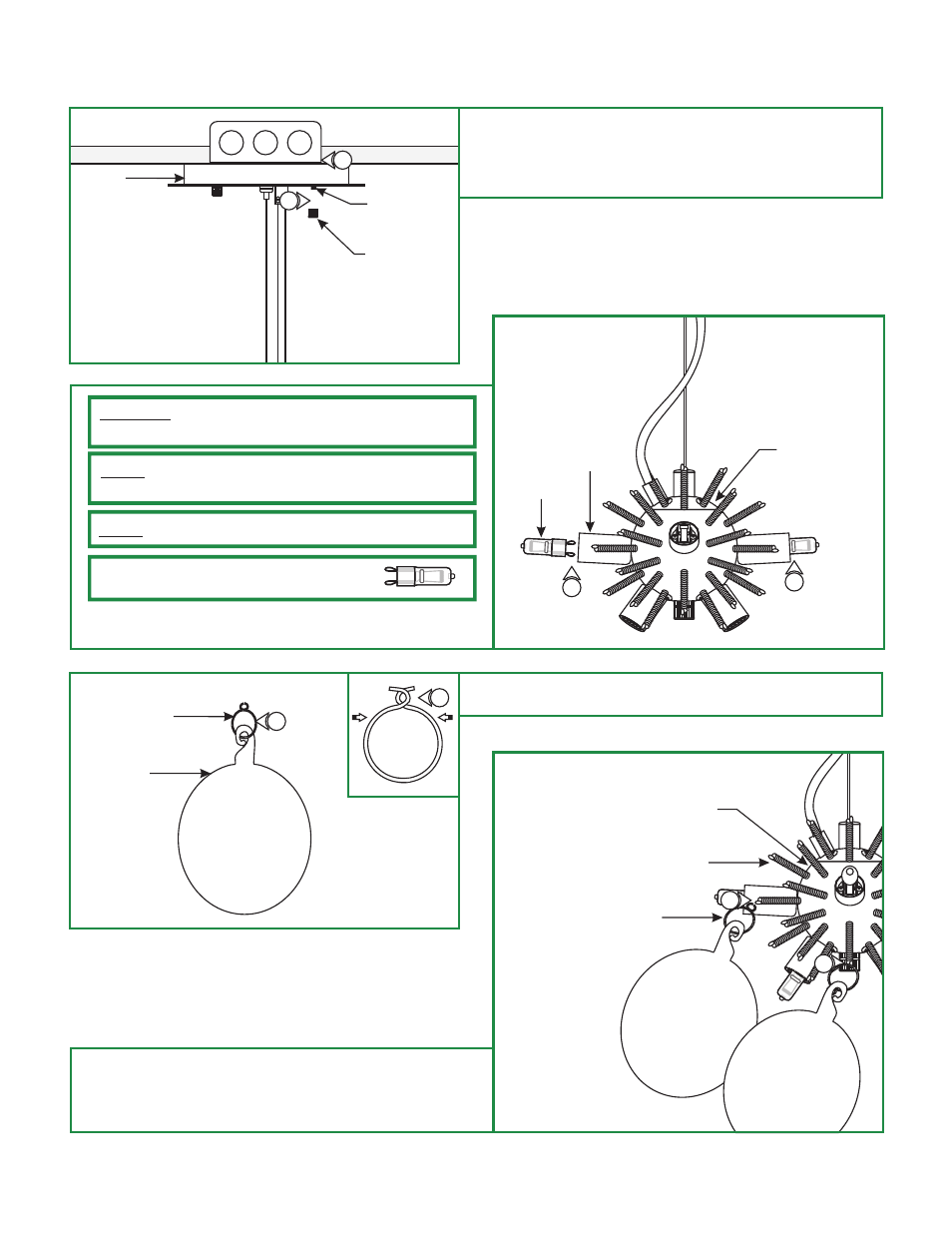

CANOPY
THREADED
STUD
THUMB NUTS
16: Place all wires and wire nut connections inside the canopy.
17: Align and slide the canopy holes onto the threaded studs.
While holding the canopy, tighten the two thumb nuts to
secure the canopy in place.
1 For each socket, push the lamp pins completely into the
socket holes. :
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
NOTE: The G9 lamp has an integral glass envelope and is thus
safe to be used without a lamp shield.
Use MAX 40 Watt Type T4, G9 Base, Bi-Pin
Halogen Lamp, For Each Socket.
NOTE: Use only fingers and a soft cloth to install the lamps.
H
Install the Lamps & Glass
Ornaments
3
16
17
LAMP
SOCKET
SOCKET HOUSING
1
1
I 2: Squeeze the key ring to open the ends. Slide one end
through a glass ornament.
KEY RING
GLASS
ORNAMENT
3: Squeeze the key ring to open the ends and slide one end into
a socket housing spring.
4: Repeat steps 2 and 3 for the remaining glass ornaments.
J
2
2
3
4
KEY RING
SPRING
SOCKET HOUSING
