Edge Lighting Crystal Veil - Manual (Page 3)

3
J
ELECTRICAL
BOX HOLE
8
CROSSBAR
ASSEMBLY
#8-32 SCREW
8

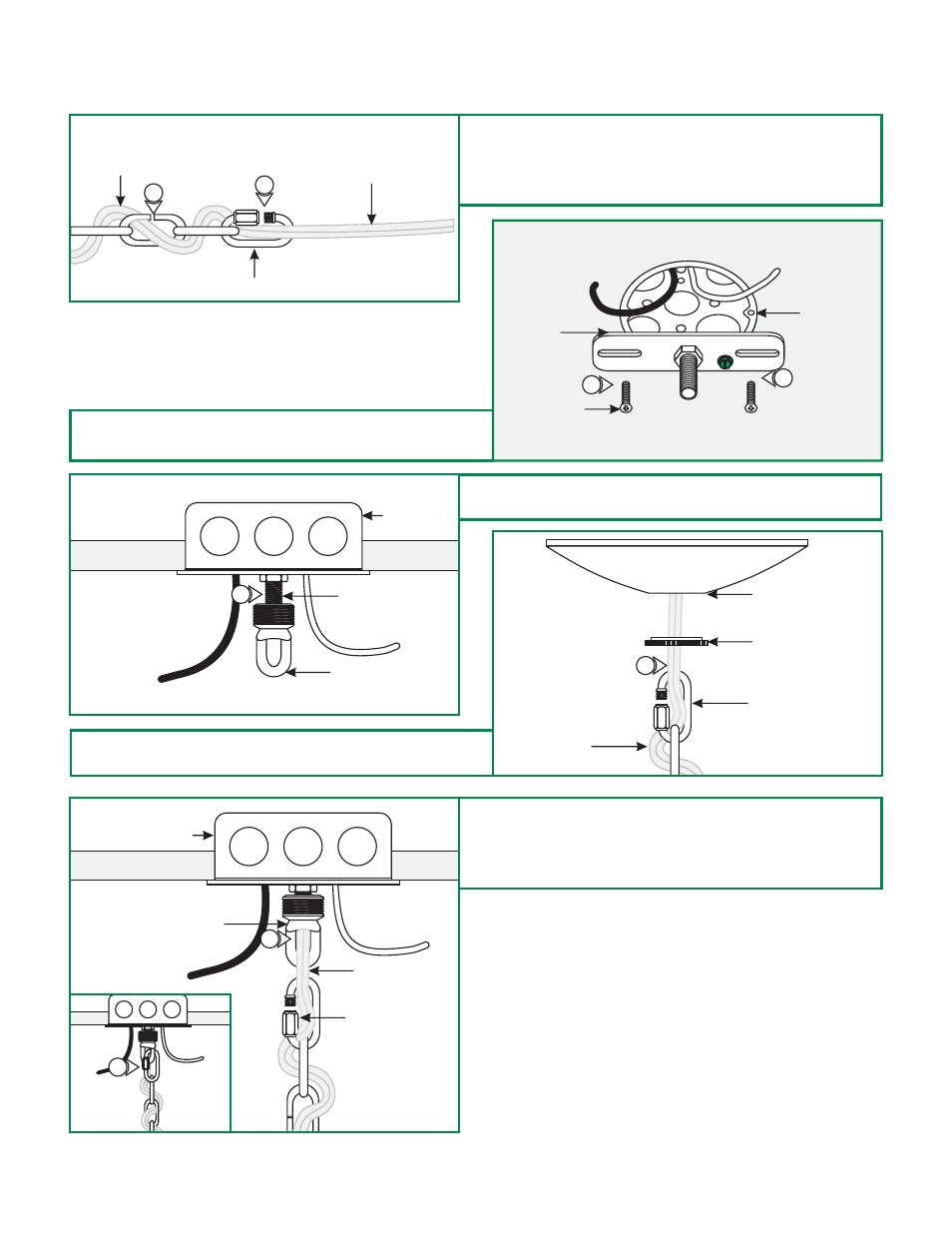

8: Mount the crossbar assembly to the electrical box holes with
the two provided #8-32 screws
4
CLEAR CORD
6: Replace the adjustable link to the end of the chain.
7: Run the fixture cord zigzag through the links. Trim end of the
cord leaving 8" behind the adjustable link for power
connection.
I
ADJUSTABLE LINK
5
8" CORD
K
HOOK BUSHING
9: Tighten the hook bushing completely to the crossbar
assembly nipple.
CROSSBAR
ASSEMBLY NIPPLE
ELECTRICAL
BOX
9
L
KNURLED NUT
CANOPY
CHAIN
CORD
10: Feed the cord through the flat section of the knurled nut
(lip facing up) and the canopy hole.
10
M
HOOK BUSHING
ELECTRICAL BOX
CORD
ADJUSTABLE LINK
12
11: Feed the cord through the hook bushing into the electrical
box.
12: Hook the adjustable link into the hook bushing and tighten
the nut to secure it in place.
11
