Edge Lighting Crystal Galaxy with Downlight - Manual (Page 4)

4
J

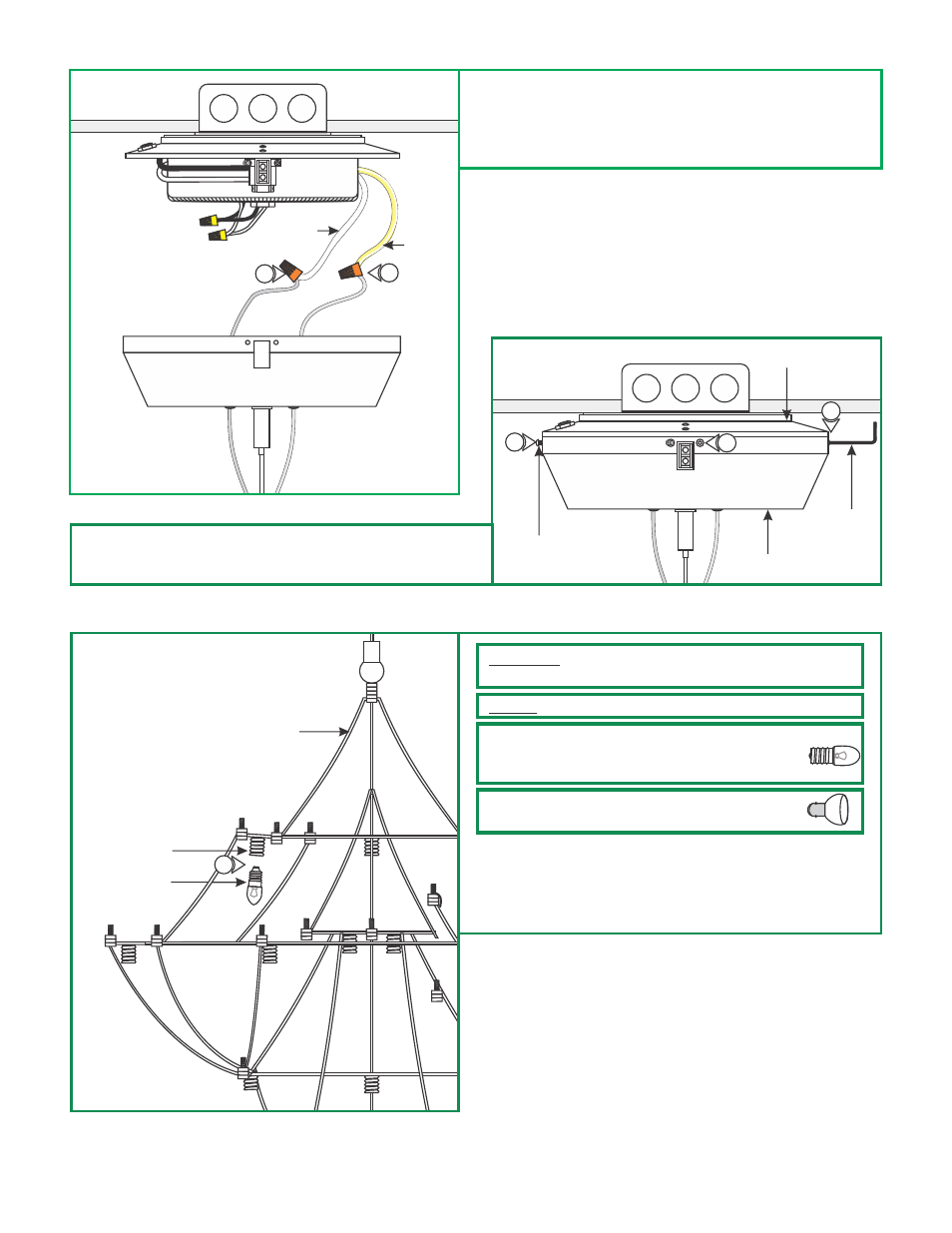

15: Connect one fixture power wire to the white 12VAC neutral
wire from the power supply.
16: Connect the remaining fixture power wire to the yellow and
white 12VAC hot wire from the power supply.
K
2MM ALLEN
WRENCH
17 17
M4 BUTTON
HEAD SCREW
17: Place the transformer cover onto the transformer housing.
Replace and tighten the five M4 button head screws with
the 2mm Allen wrench.
17
COVER
HOUSING
Install the Lamps and Crystals
L
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
LAMP
1: Screw each lamp completely into the sockets.
2: For Downlight version, install the AR11 bayonet base lamp
by pushing the lamp into the downlight socket and turning to
secure.
NOTE: Use a soft cloth and fingers to install the lamp.
Use MAX 2W Type E10 Miniature or MAX 0.5W
LED lamp for each socket. Reference product specification
sheet.
METAL FRAME
1
SOCKET
15 16
12VAC
NEU
12VAC
HOT
Use MAX 20W or MAX 3W LED Type AR11
bayonet base halogen or lamp for Downlight version.
