Edge Lighting Crystal Shadow - Manual (Page 4)

4
L
CRYSTAL NAME:QUANTITY
CRYSTAL 1 : 25pc
CRYSTAL 2 : 8pc
CRYSTAL 3 : 8pc
HOOK
CRYSTAL
SOCKET
ASSEMBLY
CRYSTAL 1 : 25pc
CRYSTAL 2 : 8pc
CRYSTAL 3 : 8pc
7
SOCKET PLATE : HOOP PATTERN
10
9
8
SOCKET
SOCKET PLATE
7
HOOP
7:
8:
9:

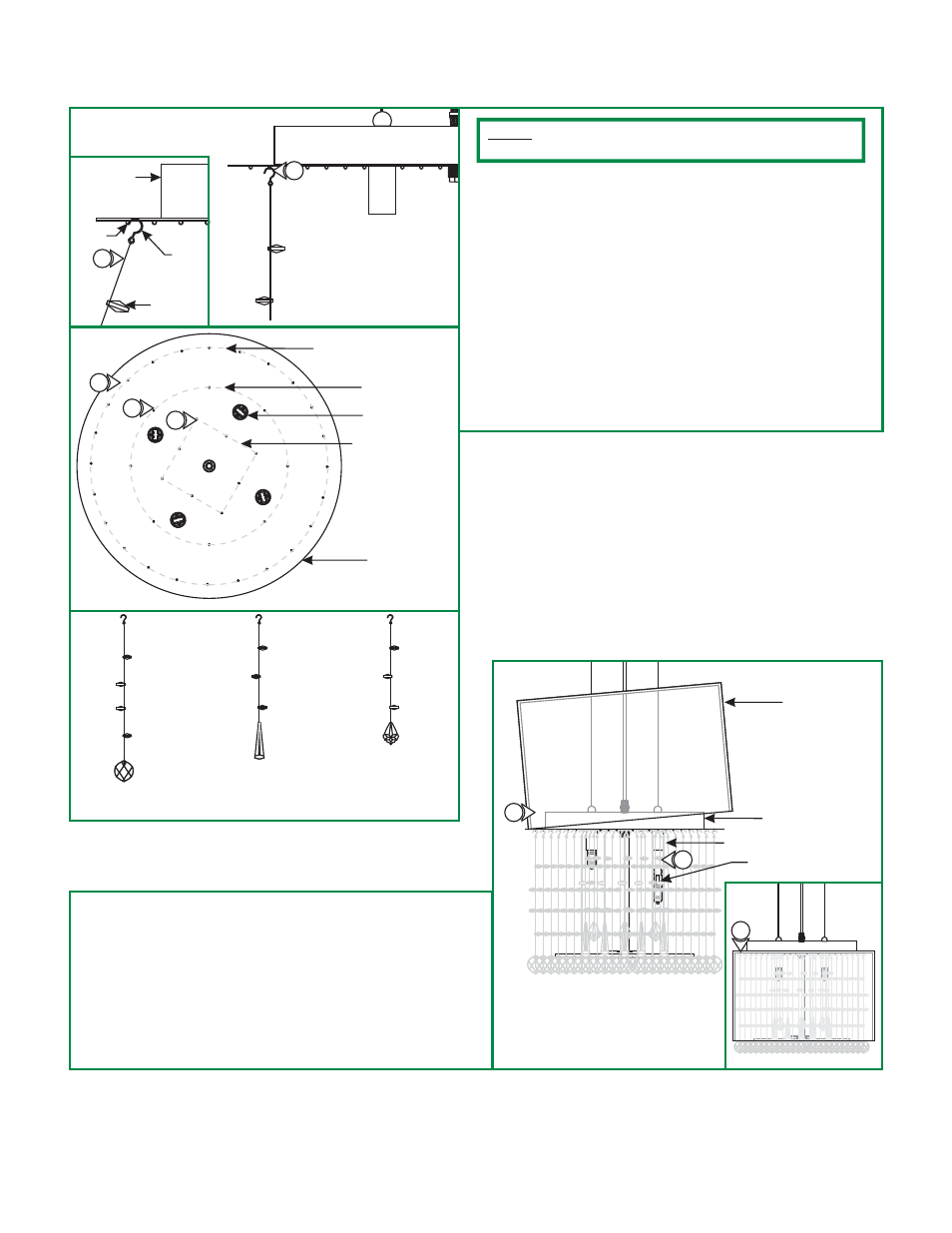

To install a crystal, hang the crystal hook into the
designated hoop.
Install each crystal marked "3" into one of the eight hoops
patterned as a square in the center of the socket plate.
Install each crystal marked "2" into one of the eight hoops
patterned as a circle in the middle of the socket plate.
10: Install each crystal marked "1" into one of the twenty five
hoops patterned as a circle near the edge of the socket
plate.
11: Carefully lower the fabric shade to rest onto the socket
plate.
NOTE: Follow step 7 to install all crystals. Follow steps 8 through
10 to install the crystals in correct position and orientation.
Replacing the Lamp
M
1:
2:
3: .
4:
Carefully lift the glass shade up to expose the socket.
Reach the burnt lamp through the crystals.
Remove the burnt lamp
Push the new lamp pins completely into the socket holes.
5: Carefully lower the fabric shade to rest onto the socket
assembly.
1
3
5
FABRIC SHADE
SOCKET PLATE
SOCKET
LAMP
