Install the lamps & crystals – Edge Lighting Crystal Shadow User Manual

Page 3

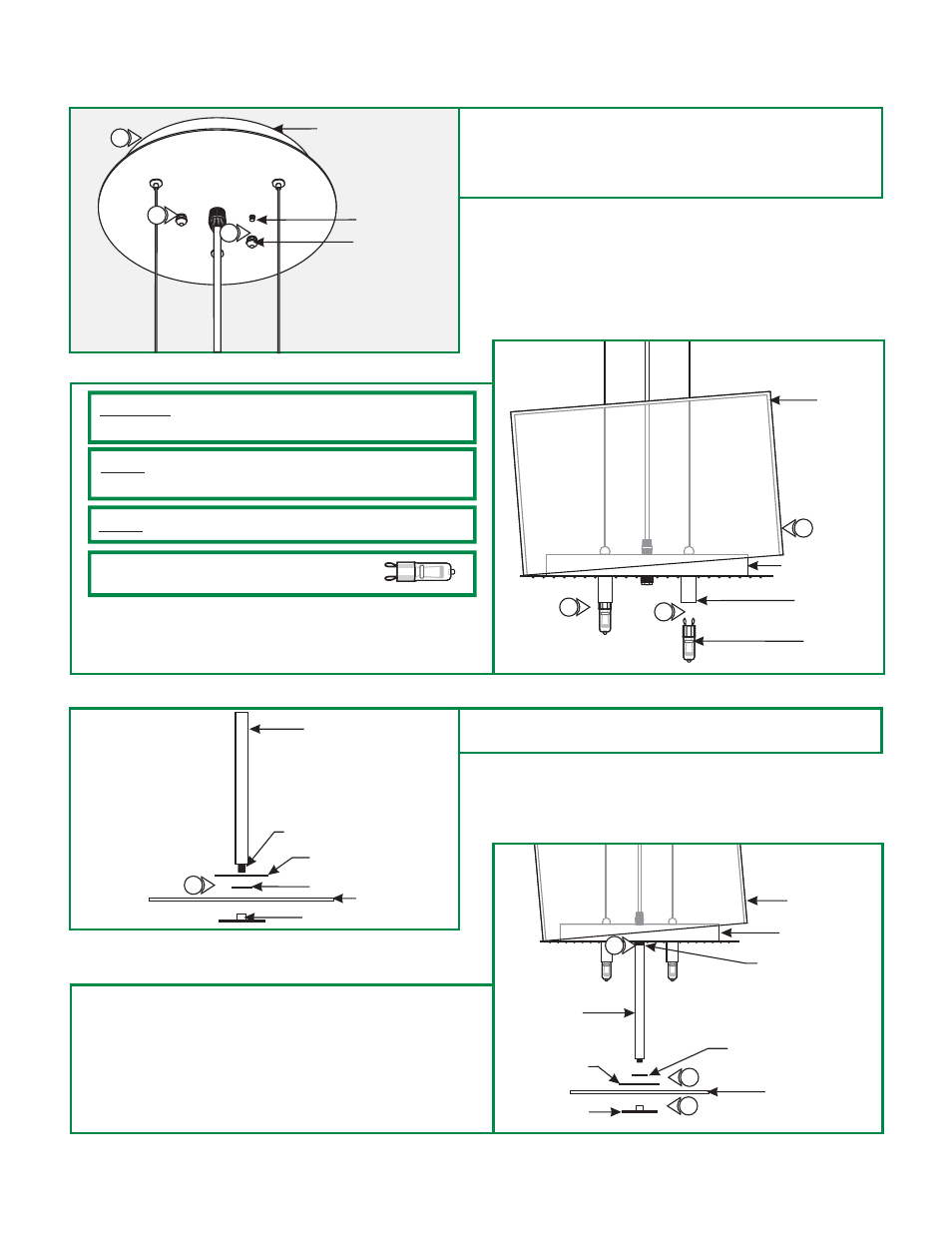

18: Place all wires and wire nut connections inside the canopy.

19: Align and slide the canopy holes onto the threaded studs.
While holding the canopy, tighten the two thumb nuts to
secure the canopy in place.

CANOPY

THREADED STUD

THUMB NUTS

1: Lift the shade up and lay it crooked onto the socket plate.

For each socket, push the lamp pins completely into the

socket holes.

CAUTION:

To reduce risk of a burn or electrical shock during

lamping, disconnect the power to the fixture.

NOTE:

The G9 lamp has an integral glass envelope and is thus

safe to be used without a lamp shield.

Use MAX 50 Watt Type T4, G9 Base, Bi-Pin
Halogen Lamp, For Each Socket.

NOTE:

Use only fingers and a soft cloth to install the lamps.

SOCKET PLATE

SOCKET

LAMP

FABRIC
SHADE

Install the Lamps & Crystals

THREADED NIPPLE

LARGE SPACER

SMALL SPACER

THREADED CAP

GLASS DISK

SUPPORT POST

3: Remove the threaded cap from the socket glass support post
to remove the glass disk and the washers.

SUPPORT
POST

4: Screw the support post onto the threaded nipple in the
middle of the socket plate.

5: Place the glass disk center hole onto the threaded cap
followed by large and small washers.
