Edge Lighting Cirrus Float End Feed User Manual
Page 2

2

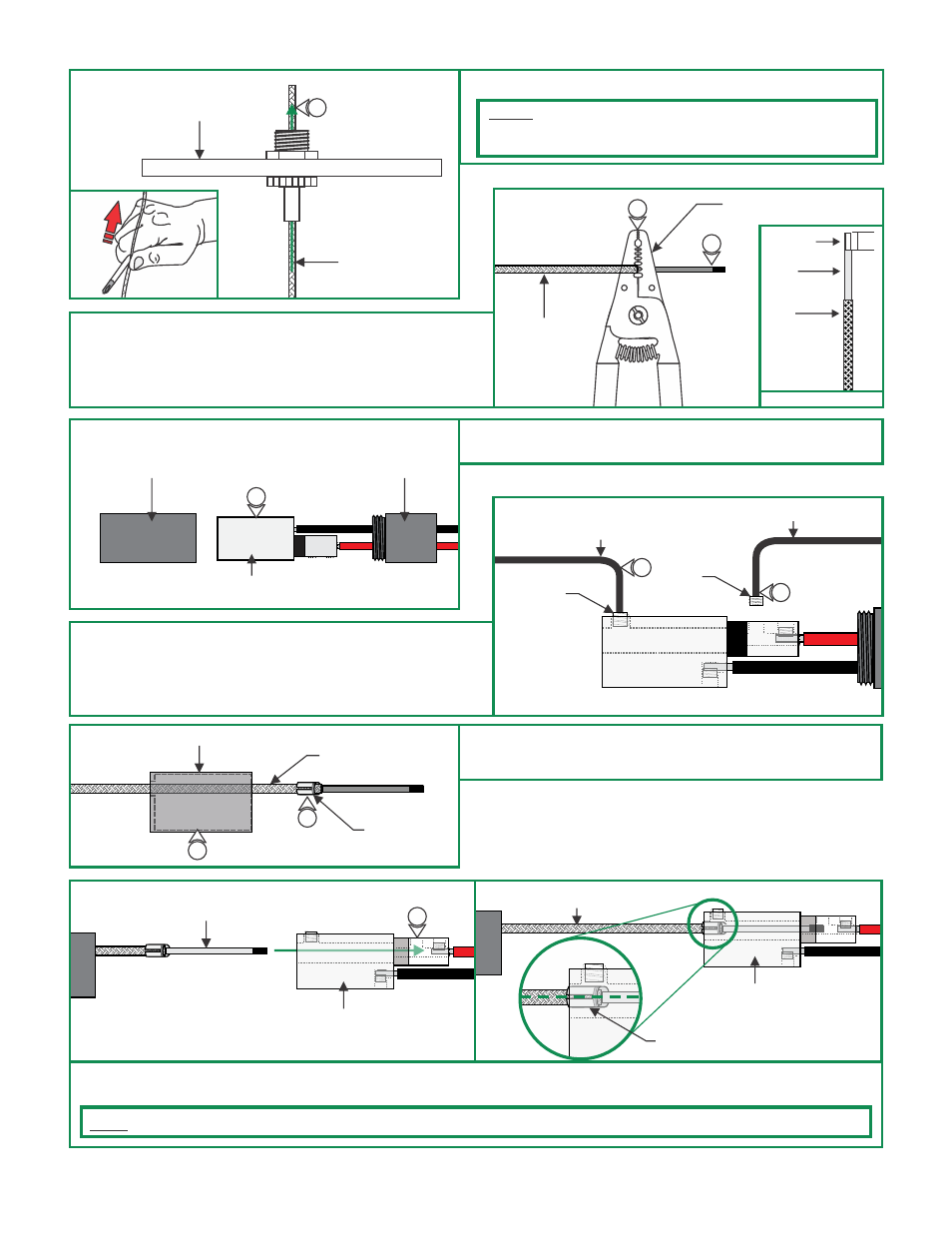

9: Feed the coaxial cable through the power feed canopy.
CONNECTOR
ASSEMBLY
COAXIAL
CONNECTOR
COVER
12
COAXIAL
CONNECTOR
COVER
12: Unscrew the coaxial connector covers and remove from the
connector assembly.
NOTE: If cable is curled or kinked, straighten by holding
between the shaft of a screwdriver and thumb and pulling the
cable through (see inset K1)
E
K1
F
1.5MM ALLEN WRENCH
2MM ALLEN
WRENCH
M4 SET
SCREW
M3 SET
SCREW
14
13
13: Using the provided 1.5mm Allen Wrench, remove the M3
set screw from the coaxial connector assembly.
14: Using the provided 2mm Allen wrench to loosen (do not
remove) the M4 set screw.
10: Using the 18 AWG hole of the wire strippers, remove 1" of
the outer braided wire.
11: Using the 20 AWG hole of the wire strippers, remove 1/8"
of inner plastic insulation from the end of the coaxial cable.
BRAIDED
WIRE
INNER
INSULATION
BARE WIRE
1/8"
COAXIAL CABLE
WIRE STRIPPERS
COAXIAL
CABLE
10
G
H
COAXIAL
CABLE
POWER
CANOPY
9
11
15: Slide the connector cover over the coaxial cable.
16: Place the ferrule over the braided wire of the coaxial cable.
COAXIAL CONNECTOR COVER
BRAIDED
WIRE
FERRULE
15
16
I
17: Insert the coaxial cable into the coaxial connector until the wires of the center conductor are visible through the M3 set
screw hole.
NOTE: Ensure that the split in the ferrule is aligned 90° from the M4 set screw (see inset).
COAXIAL
CABLE
17
CONNECTOR
ASSEMBLY
FERRULE
CONNECTOR
ASSEMBLY
COAXIAL
CABLE
J
